PIC18F13K50-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC18 PIC RISC 8KB Flash 3.3V/5V 20-Pin PDIP Tube 8-bit Microcontrollers - MCU 8KB Flash 512 RAM 15 I/O 10-B ADC USB 2.0 IC MCU 8BIT 8KB FLASH 20DIP PIC18F13K50-I/P, 8 bit Microcontroller PIC 48MHz 8kb Flash, 512B RAM, USB I2C SPI 20-Pin PDIP MCU, 8-BIT, 8K FLASH, USB, DIP20 20-Pin,8KBFlash,512RAM,15I/O,10-BitADC,USB2.0,PDIP Microcontroller 8 Bit DIL-20, PIC18F13K50-I/P, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 48MHz, 8 kB、256 B ROM 闪存, 512 B RAM, 1xUSB, 20针 PDIP封装 |
| 分类 |
商业参数
| 其他名称 | PIC18F13K50IP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 22 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 输入端 | 15 | 转速 | 48 MHz |
| 定时器 | 1 x 8 bit, 3 x 16 bit | 存储器 | 8KBytes |
| RAM 大小 | 512 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 接口 | I2C/SPI/USART/USB |
| 时钟速率 | 48 MHz | 比较器数量 | 2 |
| EEPROM容量 | 256 x 8 | 存储器容量 | 512 B |
| 存储器类型 | Flash | I/O 数量 | 15 |
| 电压范围 | 1.8-5.5V | 位数 | 8 |
| 额定电压 | 1.8 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :48MHz | 数据转换器 | A/D 11x10b |
| 最大频率 | 48MHz | DAC数量 | 1 |
| 振荡器类型 | Internal | 供电电压 | 3.3|5 V |
| 分辨率（位） | 10bit | 通道数量 | 11 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 256Bytes |
| 程序存储器大小 | 8 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 11 | 频率（中心/带宽） | 16 bit, 8 bit |
| 最大功耗 | 800 mW | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 1.8 V ~ 5.5 V | ||
机械参数
| 宽度 | 0.28in | 高度 | 0.195in |
| 长度 | 1.06in | 重量 | 0.2273 |
| 包装方式 | Tube | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :20 | 封装形式 | 20PDIP |
| 冷却的封装 | PDIP | 材料表面处理 | :- |
| 尺寸/外形 | 1.06 x 0.28 x 0.195in | 位数 | 20 |
| 供应商器件封装 | 20-PDIP | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 1(ECCP) | ||
产品信息
| USB | 1 x Device | 系列 | PIC18 |
| 基本单元 | :PIC18F | 闪存大小 | :8KB |
| 片内RAM（通道数×位宽） | 11-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART, USB |
| 核心处理器 | PIC | 定时器数量 | 4 |
| 控制器系列 | :PIC18FxxKxx | 射频系列/标准 | PIC18 |
| A/D转换器数量 | :9 | ||
环境参数
| 工作温度 | -40 to 85 °C | ||
文档与媒体
相关型号
SW500008
microchip
Hi-Tech C Compiler For Pic18 MCUs Development Software PICC-18STD Compiler HI-TECH C Compiler for PIC18 MCUs - PICC-18 STD HI-TECH C COMPILER, FOR PIC18, STD Compilers,HI-TECHCCompilerforPIC18MCUs-Standard
PIC18F13K50-I/P
microchip
MCU 8-bit PIC18 PIC RISC 8KB Flash 3.3V/5V 20-Pin PDIP Tube 8-bit Microcontrollers - MCU 8KB Flash 512 RAM 15 I/O 10-B ADC USB 2.0 IC MCU 8BIT 8KB FLASH 20DIP PIC18F13K50-I/P, 8 bit Microcontroller PIC 48MHz 8kb Flash, 512B RAM, USB I2C SPI 20-Pin PDIP MCU, 8-BIT, 8K FLASH, USB, DIP20 20-Pin,8KBFlash,512RAM,15I/O,10-BitADC,USB2.0,PDIP Microcontroller 8 Bit DIL-20, PIC18F13K50-I/P, Microchip Microchip PIC18F 系列 8 bit PIC MCU, 48MHz, 8 kB、256 B ROM 闪存, 512 B RAM, 1xUSB, 20针 PDIP封装
DV007004
microchip
Production Programmer/Development Kit PRODUCTION PROGRAMMER/DEVELOPMENT Programmers - Processor Based MPLAB PM3 Universal Device Programmer MPLAB PM3 UNIVERSAL DEVICE PROGRAMMER Universal Device Programmer PROGRAMMER UNIVERSAL PM3 DV007004, Development Kit, 8 bit, PIC MPLAB PM3 Universal Device Programmer Socket Module Adapter MPLAB PM3 PROGRAMMER, PIC, DSPIC30F PRODUCTIONPROGRAMMER/DEVELOPMENTKITWITHBUILT-INICSP.PROGRAMSPICMICRO&DS PM3 Universal Device Programmer PC hosted mode / Stand-alone mode, DV007004, Microchip Microchip 处理器和微控制器开发套件
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
AC164114
microchip
Programming Adapter Is Designed To Prevent Damage To The USB PIC Microcontroller Sockets & Adapters PIC18F1xK50 Program Adapter PIC18F1xK50 Programming Adapter ADAPTER PROGRAMMING MPLAB PM3 AC164114, Adapter, 8 bit, PIC, Programming Adapter for the PIC18F1xK50 PROGRAMMING ADAPTER, FOR PIC18F1XK50 Accessories,PIC18F1xK50ProgrammingAdapter Microchip 编程适配器 8 位 MCU 微控制器开发套件 (PIC 内核)
DM183032
microchip
PIC18 Low Cost DEMO Board Development Boards & Kits - PIC / DSPIC PIC 18 Explorer Board PICDEM PIC18 Explorer Board BOARD EXPLORER PICDEM PIC18 DM183032, Development Kit, 8 bit, PIC, PIC18F87J11 Processor PIM, PICDEM PIC18 Explorer Board PICDEM, PIC18, EXPLORER BOARD PICDEMPIC18EXPLORERBOARD Development kit: Microchip; PIC18F8722,PIC18F87J11 PICDEM PIC18 Explorer board PC hosted mode 9 V, DM183032, Microchip Microchip 8 位 MCU 微控制器开发套件
DV164126
microchip

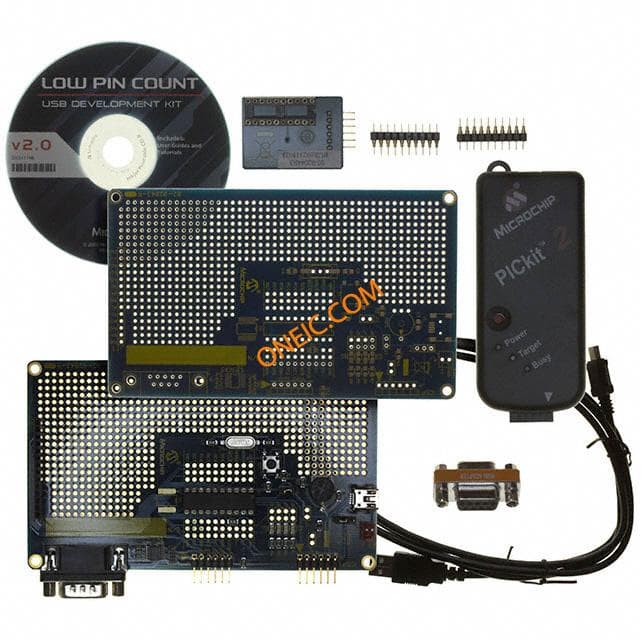

Low Pin Count USB Development Kit W/ PICKIT 2 Development Boards & Kits - PIC / DSPIC USB Kit w/ PICkit LowPinCount KIT DEVELOPMENT USB W/PICKIT 2 PIC18F, USB, WITH PICKIT 2, DEV KIT WiredConnectivity,LowPinCountUSBKitwPICkit
