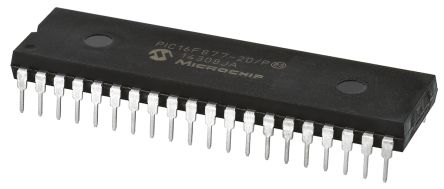

PIC16F877-20/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-Bit PIC16 PIC RISC 14KB Flash 5V 40-Pin PDIP Tube MCU 8-bit PIC16 PIC RISC 14KB Flash 5V 40-Pin PDIP Tube 8 bit MCU PDIP40 IC MCU 8BIT 14KB FLASH 40DIP PIC16F877-20/P, 8 bit Microcontroller PIC 20MHz 8K Flash, 368B RAM, I2C SPI 40-Pin PDIP 8-bit Microcontrollers - MCU 14KB 368 RAM 33 I/O IC, 8BIT FLASH MCU, 16F877, DIP40 IC, 8-BIT FLASH MCU, TUBE10 40-Pin,7KBFlash,368RAM,33I/O PIC microcontroller; EEPROM:256B; SRAM:368B; 20MHz; DIP40; 2÷5.5V Microcontroller 8 Bit DIL-40, PIC16F877-20/P, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 256 x 8 字，8K x 14 字 ROM 闪存, 368 B RAM, 40针 PDIP封装 PIC16F 7K PDIP40 70°C |
| 分类 |
商业参数
| 最小起订量 | 10 | 单位包装 | 10 |
| 其他名称 | PIC16F87720P | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 10 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :16F877 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 输入端 | 33 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 14KBytes |
| RAM 大小 | 368 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | I2C/SPI/USART | 时钟速率 | 20 MHz |
| 比较器数量 | 2 | 分辨率 | 10bit |
| EEPROM容量 | 256 x 8 | 存储器容量 | 368 B |
| 存储器类型 | FLASH | I/O 数量 | 33 |
| 电压范围 | 2-5.5V | 位数 | 10 |
| 额定电压 | 4 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :20MHz | 数据转换器 | A/D 8x10b |
| 最大频率 | 20MHz | DAC数量 | 2 |
| 振荡器类型 | External | 供电电压 | 5 V |
| 分辨率（位） | 10bit | 串行接口 | 1 |
| 通道数量 | 0 | 模拟输入/输出 | 8-Channel,10-Bit |
| 非易失性存储器 | 256Bytes | 程序存储器大小 | 14 KB |
| 程序存储器类型 | Flash | ADC/DAC 数量 | 8 |
| 8位定时器数量 | 2 | 最小供电电压 | 4 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 1000 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 4 V ~ 5.5 V |
机械参数
| 宽度 | 14.22mm | 高度 | 4.06mm |
| 长度 | 52.45mm | 重量 | 0.000001 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :40 |
| 封装形式 | 40PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 包装数量 | PDIP |
| 尺寸/外形 | 52.45 x 14.22 x 4.06mm | 位数 | 40 |
| 供应商器件封装 | 40-PDIP | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 2(10 bit) (CCP) | ||
产品信息
| SPI | 1 | SPG | 110 |
| USB | 0 | 类型 | PIC microcontroller |
| 系列 | PIC16 | 协议 | 1 |
| 匹配码 | PIC16F877-20/P | 闪存大小 | :14KB |
| 片内RAM（通道数×位宽） | 8-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 单元数量 | 1 | 定时器数量 | 3 |
| 控制器系列 | :PIC16F | 标准交期 | 14 weeks |
| 射频系列/标准 | PIC16 | DigiKey可编程 | Yes |
| 微控制器特性 | :2 PWM, Brown- Out Detection, Watchdog , In-System Programming | A/D转换器数量 | :8 |
环境参数
| 温度范围 | :Commercial | 测试温度 | 0°C |
| 工作温度 | 0 to 70 °C | 结工作温度 | 70C |
