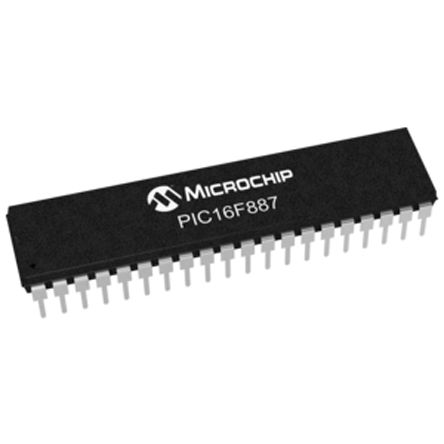

PIC16F887-I/P
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 14KB Flash 2.5V/3.3V/5V 40-Pin PDIP Tube 8-bit Microcontrollers - MCU 14KB Flash 368 RAM 36 I/O 8 bit MCU PDIP40 IC MCU 8BIT 14KB FLASH 40DIP PIC16F887-I/P, 8 bit Microcontroller PIC 20MHz 8192 Flash, 368B RAM, I2C SPI 40-Pin PDIP IC, MCU 8BIT 14K FLASH, PDIP40 MCU,8-Bit,14KBFlash,368RAM,36I/O,PDIP-40 PIC microcontroller; EEPROM:256B; SRAM:368B; 20MHz; DIP40; 2÷5.5V Microcontroller 8 Bit DIL-40, PIC16F887-I/P, Microchip Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 8192 x 14 字，256 B ROM 闪存, 368 B RAM, 40针 PDIP封装 PIC16F 14K PDIP40 85°C |
| 分类 |
商业参数
| 最小起订量 | 10 | 单位包装 | 10 |
| 其他名称 | PIC16F887IP | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 10 |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 零件状态 | :16F887 | 抗辐射加固 | No |
| 无铅定义 | RoHS-conform | 认证机构 | No |
电气参数
| 输入端 | 35 | 转速 | 20 MHz |
| 定时器 | 1 x 16 bit, 2 x 8 bit | 存储器 | 14KBytes |
| 以太网 | 0 | RAM 大小 | 368 byte |
| 内核大小 | 8-Bit | 核心类型 | PIC |
| 频率 | 20 MHz | 接口 | I2C/SPI/USART |
| 时钟速率 | 20 MHZ | 比较器数量 | 2 |
| 分辨率 | 10bit | EEPROM容量 | 256Byte |
| 存储器容量 | 368 B | 存储器类型 | FLASH |
| 显示类型 | 0 | I/O 数量 | 35 |
| 电压范围 | 2-5.5V | 位数 | 10 |
| 额定电压 | 2 → 5.5 V | 看门狗定时器 | 1 |
| 时钟频率 | :20MHz | 数据转换器 | A/D 14x10b |
| 最大频率 | 20MHz | DAC数量 | 1 |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3|5 V |
| 数字I/O线数 | 33pins | 分辨率（位） | 16bit |
| 串行接口 | 1 | 通道数量 | 14 |
| 模拟输入/输出 | 2 | 非易失性存储器 | 256Bytes |
| 程序存储器大小 | 14 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 14 | 最小输入电压 | 2.0V |
| 8位定时器数量 | 2 | 最小供电电压 | 2 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 800 mW |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 2 V ~ 5.5 V |
机械参数
| 宽度 | 0.58in | 高度 | 0.195in |
| 长度 | 2.095in | 重量 | 0.2 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 端接方式 | :Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | :40 |
| 封装形式 | 40PDIP | 冷却的封装 | PDIP |
| 材料表面处理 | :- | 总长度 | 53.21(Max) |
| 包装数量 | PDIP | 尺寸/外形 | 2.095 x 0.58 x 0.195in |
| 位数 | 40 | 外壳尺寸-插件 | 4.95(Max) |
| 供应商器件封装 | 40-PDIP | 核心数/总线宽度 | 8 Bit |
| 脉冲宽度失真（最大） | 1(10 bit) (CCP), 1(10 bit) (ECCP) | ||
产品信息
| SPI | 1 | SPG | 240 |
| USB | 0 | 类型 | PIC microcontroller |
| 系列 | PIC16 | 协议 | 1 |
| 匹配码 | PIC16F887-I/P | CAN编号 | 0 |
| 闪存大小 | :14KB | SPI编号 | 1 |
| 片内RAM（通道数×位宽） | 14-chx10-bit | 外设 | Brown-out Detect/Reset, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | PIC |
| 内置振荡器 | 32kHz, 8MHz | 单元数量 | 1 |
| 定时器数量 | 3 | 控制器系列 | :PIC16F8xx |
| 标准交期 | 14 weeks | 射频系列/标准 | PIC16 |
| 使用的IC/零件 | :PIC16F887-I/P | DigiKey可编程 | Yes |
| 印刷电路板数量 | 40 | A/D转换器数量 | :14 |
环境参数
| 测试温度 | -40°C | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
文档与媒体
