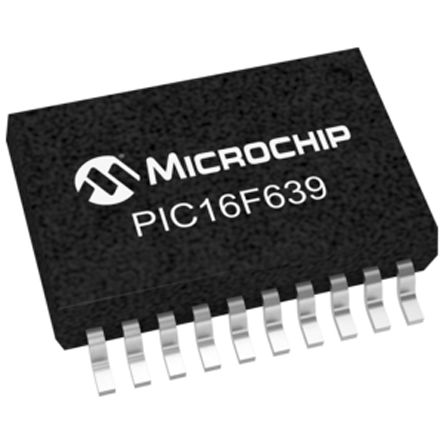

PIC16F639-I/SS
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 8-bit PIC16 PIC RISC 3.5KB Flash 2.5V/3.3V/5V 20-Pin SSOP Tube 8-bit Microcontrollers - MCU 4kb 128 RAM 12 I/O 3.5 KB Flash, 128 RAM, 12 I/O IC MCU 8BIT 3.5KB FLASH 20SSOP PIC16F639-I/SS, 8 bit Microcontroller PIC 20MHz 2048 Flash, 128B RAM, 20-Pin SSOP IC, SM, MCU, 8-BIT, 3.5KB FLASH MICROPIC16F639-I/SS Microchip PIC16F 系列 8 bit PIC MCU, 20MHz, 2048 x 14 字，256 B ROM 闪存, 128 B RAM, 20针 SSOP封装 |
| 分类 |
商业参数
| 最小起订量 | 1600 | 单位包装 | 67 |
| 其他名称 | PIC16F639ISS | 产品类别 | 8-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 67 |
| 标准封装名称 | SSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85411000 |
| 抗辐射加固 | No | 认证机构 | No |
电气参数
| 转速 | 20 MHz | 定时器 | 1 x 16 bit, 1 x 8 bit |
| RAM 大小 | 128 byte | 内核大小 | 8-Bit |
| 核心类型 | PIC | 频率 | 20 MHz |
| 接口 | SPI | 时钟速率 | 20 MHz |
| EEPROM容量 | :256Byte | 存储器容量 | 128 B |
| 存储器类型 | :Flash | I/O 数量 | 12 |
| 位数 | :8 | 额定电压 | 2 → 5.5 V |
| 看门狗定时器 | 1 | 时钟频率 | :20MHz |
| FPGA 核心单元数 | :5 | 最大频率 | 20MHz |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3|5 V |
| 通道数量 | 0 | 程序存储器大小 | 3.5 KB |
| 程序存储器类型 | Flash | 最小供电电压 | 2 V |
| 频率（中心/带宽） | 16 bit, 8 bit | 最大功耗 | 800 mW |
| 每元件位数 | :16 | 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V |
机械参数
| 宽度 | 5.6mm | 高度 | 1.85mm |
| 长度 | 7.5mm | 重量 | 0.299 |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :20 |
| 封装形式 | 20SSOP | 冷却的封装 | SSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 7.2 |
| 包装数量 | SSOP | 尺寸/外形 | 7.5 x 5.6 x 1.85mm |
| 位数 | 20 | 外壳尺寸-插件 | 1.75 |
| 供应商器件封装 | 20-SSOP | 核心数/总线宽度 | 8 Bit |
产品信息
| USB | 0 | 系列 | PIC16 |
| 闪存大小 | :3.5KB | 片内RAM（通道数×位宽） | No |
| 外设 | Brown-out Detect/Reset, LVD, POR, WDT | 架构 | RISC |
| 可编程性 | Yes | 核心处理器 | PIC |
| 定时器数量 | 2 | 控制器系列 | :PIC16F6xx |
| 射频系列/标准 | PIC16 | DigiKey可编程 | Yes |
| 印刷电路板数量 | 20 | 微控制器特性 | :Keeloq, BOR, PLVD, POR, WDT, WUR, 2 Comparators |
| 输入数量及类型 | :1 | ||
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
