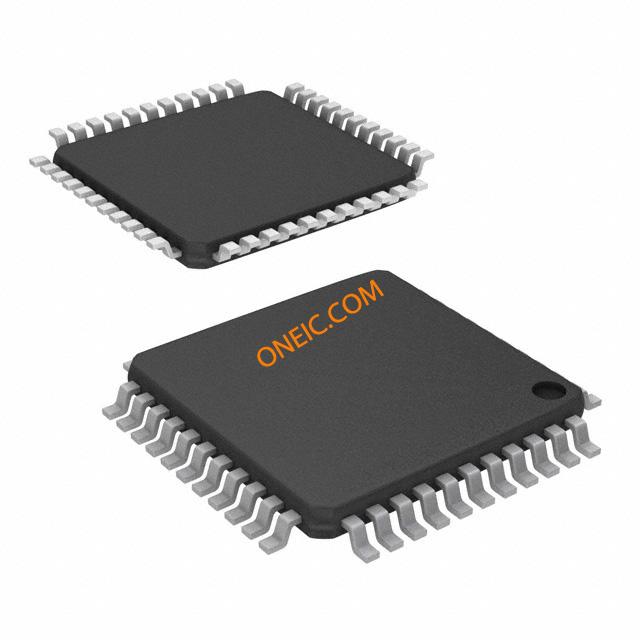

DSPIC33FJ128MC804-I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 16-bit dSPIC33 dsPIC RISC 128KB Flash 3.3V 44-Pin TQFP Tube IC DSC 16BIT 128KB FLASH 44TQFP dsPIC33FJ128MC804-I/PT, Digital Signal Controller 40MHz 128kb Flash, 16kb RAM, 9x12bit ADC, I2C SPI 44-Pin TQFP Digital Signal Processors & Controllers - DSP, DSC 16B DSC 128KB DMA 40MIPS MCU 16-bit dsPIC33F dsPIC RISC 128KB Flash 3.3V 44-Pin TQFP Tube DSC, 16BIT, 128K FLASH, 40MIPS, 44TQFP IC,DSPIC33FJ128MC804-I/P DsPIC microcontroller; Memory:128kB; SRAM:16384B; TQFP44; 3÷3.6V Microcontroller 16 Bit TQFP-44,40 MHz, DSPIC33FJ128MC804-I/PT, Microchip dsPIC33FJ 128K TQFP44 85°C |
| 分类 |
商业参数
| 产品 | DSCs | 其他名称 | DSPIC33FJ128MC804IPT |
| 产品类别 | Digital Signal Processors & Controllers - DSP, DSC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 160 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 抗辐射加固 | No |
电气参数
| 转速 | 40 MHz | 存储器 | 128kB |
| RAM 大小 | 16 KB | 内核大小 | 16-Bit |
| 核心类型 | dsPIC | 频率 | 40 MHz |
| 接口 | CAN/I2C/SPI/UART | 时钟速率 | 40 MHz |
| 存储器容量 | 16 KB | I/O 数量 | 35 |
| 核心电压 | :2.75V | 额定电压 | 3.3 V |
| 看门狗定时器 | 1 | 数据转换器 | A/D 9x10b/12b, D/A 6x16b |
| 最大频率 | 40MHz | 振荡器类型 | Internal |
| 供电电压 | 3.3 V | 通道数量 | 1 |
| 模拟输入/输出 | 2 | 程序存储器大小 | 128 KB |
| 程序存储器类型 | Flash | 工作频率 | :40MHz |
| ADC/DAC 数量 | 9-ch x 10 bit, 9-ch x 12 bit | 最小供电电压 | 3 V |
| 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V | ||
机械参数
| 宽度 | 10mm | 高度 | 1mm |
| 长度 | 10mm | 重量 | 0.002188 |
| 包装方式 | Tray | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :44 | 封装形式 | 44TQFP |
| 冷却的封装 | TQFP | 材料表面处理 | :MSL 3 - 168 hours |
| 包装数量 | 160 | 尺寸/外形 | 10 x 10 x 1mm |
| 位数 | 44 | 供应商器件封装 | 44-TQFP (10x10) |
| 核心数/总线宽度 | 16 Bit | ||
产品信息
| SPG | 160 | 类型 | dSPIC33 |
| 系列 | DSPIC33F | 产品特性 | CAN Controller |
| 基本单元 | :33 | 闪存大小 | :128KB |
| 片内RAM（通道数×位宽） | 9-chx10-bit|9-chx12-bit | 外设 | Brown-out Detect/Reset, DMA, Motor Control PWM, QEI, POR, PWM, WDT |
| 架构 | RISC | 连接性 | CAN, I²C, IrDA, LIN, SPI, UART/USART |
| 可编程性 | Yes | 核心处理器 | dsPIC |
| 内置振荡器 | 32kHz, 7,37MHz | 单元数量 | 1 |
| 定时器数量 | 5 | 射频系列/标准 | dSPIC33 |
| 宏单元数量 | 2 | ||
