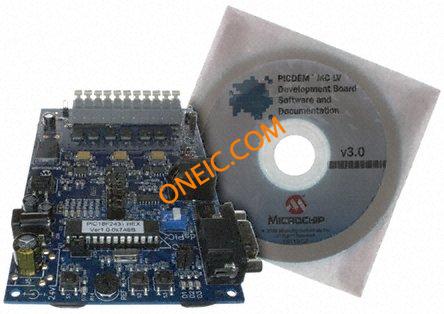

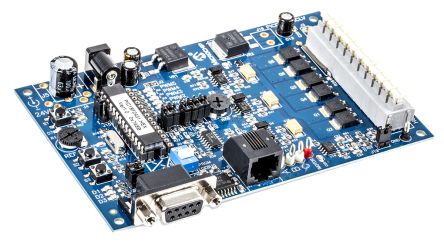

DM183021

制造商	Microchip Technology Inc.
描述	PICDEM MC LV Development Board Development Boards & Kits - PIC / DSPIC PICDEM MC LV Dev Brd BOARD DEV PICDEM MC LV DM183021, Development Kit, 8 bit, PIC PICDEM, BLDC MOTOR CNTLR, DEV BOARD PICDEMMCLVDevelopmentBoard Development kit: Microchip; PIC18F2431,dsPIC30F3010; 24VDC Microchip 电动机控制开发板 8 位 MCU 微控制器开发套件 (PIC 内核)
分类	嵌入式系统与开发工具嵌入式MCU与DSP评估板MCU评估板

商业参数

最小起订量	1	产品	Development Boards
单位包装	1	产品类别	Development Boards & Kits - PIC / DSPIC
标准包装数量	Boxed	工厂包装数量	1

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85423190

电气参数

核心类型	PIC	接口	I2C, RS-232
供电电压	24 V	元件数量	:PIC18F, dsPIC30F
最小供电电压	24V DC

机械参数

重量

0.375

核心数/总线宽度

8 bit

产品信息

类型	Development Kit	内容	Board, Software
嵌入式	No	产品特性	:Motion Sensor Input, Speed Control Potentiometer, Motor Current and Back EMF Sensing
套件类型	Microchip	技术	8 bit

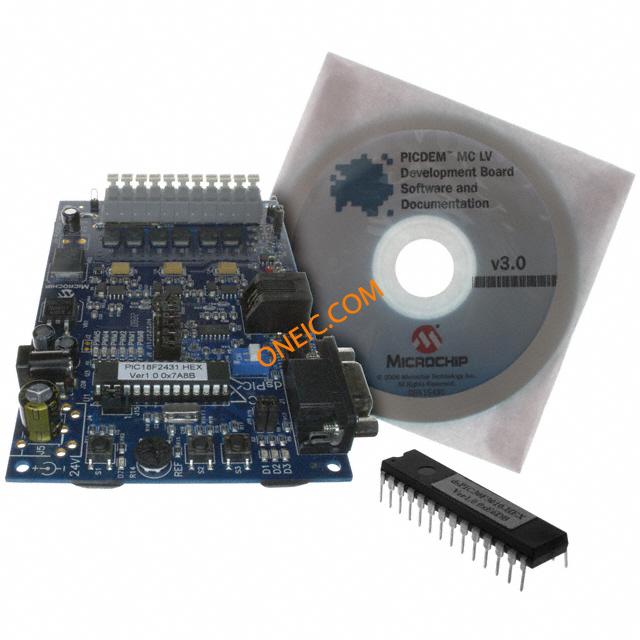

套件内容	Motor Control Graphical User Interface, PIC18F2431 and dsPIC30F3010 Devices, PICDEM MC LV Development Board	主要用途	Power Management, Motor Control
制造商全称	:dsPIC30F3xxx, PIC18F2xxx	卡标准	Development Kit
通信接口	RS232	按键数	3
单元数量	1	工具类型/特性	PIC18F2431
主要特性	Brushless DC (BLDC) Motors, 3-Phase, 1A, LIN, SPI, PWM Interface	使用的IC/零件	PIC18F, dsPIC30F
芯片组制造商	:Microchip	次要特性	Graphical User Interface
应用细节	3-Phase BLDC motor control	支持MCU系列	:PIC18F, dsPIC30F
适用产品/相关产品	:PIC18F2431, dsPIC30F3010

文档与媒体

51573a.pdf

idcplg?IdcService=SS_GET_PAGE&nodeId=1406&dDocName=en024213

PICDEM MC LV Demonstration Board

PIC18F2x31, 4x31 Data Sheet

PICDEM MC LV Development Board Users Guide

94447.pdf

相关型号

PIC18F2331-I/SP

microchip

MCU 8-bit PIC18 PIC RISC 8KB Flash 5V 28-Pin SPDIP Tube 8 KB Flash, 768 RAM, 22 I/O IC MCU 8BIT 8KB FLASH 28SDIP PIC18F2331-I/SP, 8 bit Microcontroller PIC 40MHz 256, 8192B Flash, 768B RAM, I2C SPI 28-Pin SPDIP 8-bit Microcontrollers - MCU 8KB 768 RAM 22 I/O IC, 8BIT FLASH MCU, 18F2331, SDIL28 MCU,8-Bit,CMOS,28-Pin,8KBFlash,768RAM,22I/O PIC microcontroller; EEPROM:256B; SRAM:768B; 40MHz; DIP28 Microchip PIC18F 系列 8 bit PIC MCU, 40MHz, 256 B，8192 B ROM 闪存, 768 B RAM, 28针 SPDIP封装

¥18.1200

详情

AC002013

microchip

Evaluation Board Evaluate Both Sensored And Sensorless Brushless DC Motor Control Applications Processor Accessories PICDEM Pow SppLy PICDEM MC LV Power Supply POWER SUPPLY FOR PICDEM MC LV 24V PSU for PICDEM MC LV (DM183021) Wall Mount AC Adapters PICDEM Pow SppLy POWER SUPPLY, 24V, FOR PICDEM MC LV

¥425.8200

详情

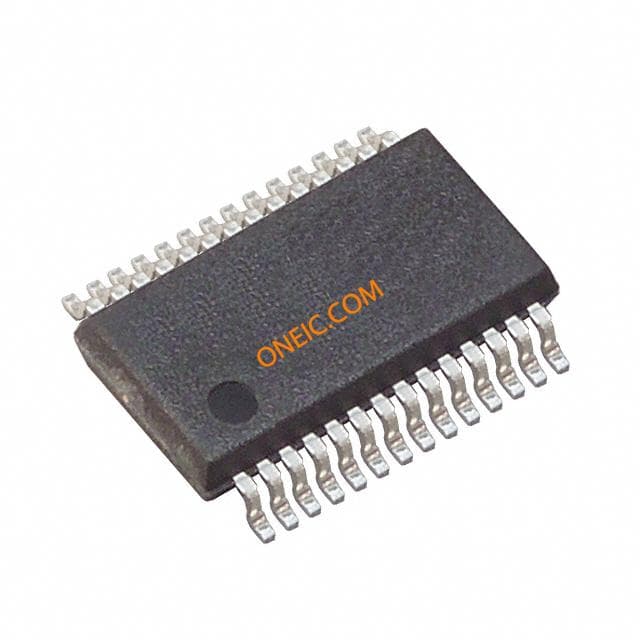

MAX3243CDBR
