点击放大查看

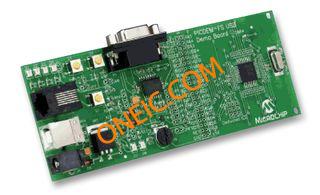

DM163025

制造商	Microchip Technology Inc.
描述	Demonstration And Evaluation Board For The PIC18F4550 Family Of Flash Microcontrollers Development Boards & Kits - PIC / DSPIC USB DEMO BOARD PICDEM FS USB Demoboa PIC DEM FULL SPEED USB DEMO BRD PICDEM, PIC18F4550, USB, DEMO BOARD
分类	嵌入式系统与开发工具嵌入式MCU与DSP评估板MCU评估板

商业参数

最小起订量	1	产品	Demonstration Boards
单位包装	1	其他名称	Q2086254
产品类别	Development Boards & Kits - PIC / DSPIC	标准包装数量	Boxed
工厂包装数量	1

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Supplier Unconfirmed	海关税号	85423190
无铅定义	RoHS-conform

电气参数

核心类型	PIC	接口	Serial, USB
供电电压	5 V	元件数量	:PIC18F

机械参数

重量

0.4

核心数/总线宽度

8 bit

产品信息

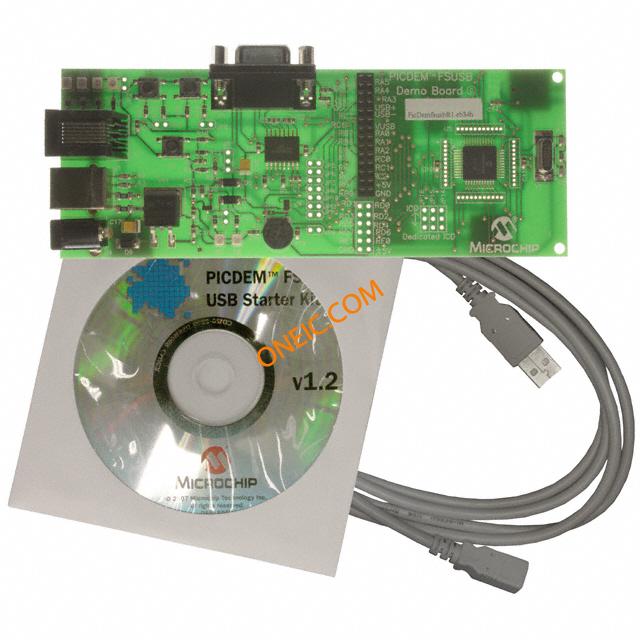

类型	Development Kit	内容	Board, Cable, Software
嵌入式	Yes, MCU, 8-Bit	产品特性	http://download.siliconexpert.com/pdfs/2005/11/17/semi_ap/3/mcp/applicat...
功能	PICDEM FS-USB is a demonstration and evaluation board for the PIC18F4550 family of Flash microcontrollers with full speed USB 2.0 interface	匹配码	PICDEM FS USB
技术	Microcontroller	套件内容	:Board, CD-ROM
主要用途	Interface, USB 2.0 Host/Controller	制造商全称	:PIC18F4xxx
开发套件	EVALBOARD	标准交期	6 weeks
工具类型/特性	PIC18F4550	主要特性	Full Speed (12Mbps)
使用的IC/零件	PIC18F2455/2550/4455/4550	芯片组制造商	:Microchip
次要特性	MPLAB ICE 2000/4000 Emulator Interface, Temp Sensor, Expansion and PICtail Headers	支持MCU系列	:PIC18F4550

环境参数

机械寿命

Obsolete

文档与媒体

91095a.pdf

idcplg?IdcService=SS_GET_PAGE&nodeId=1406&dDocName=en021940&part=DM163025

PICDEM FS USB Demonstration Board Users Guide

60262.pdf
