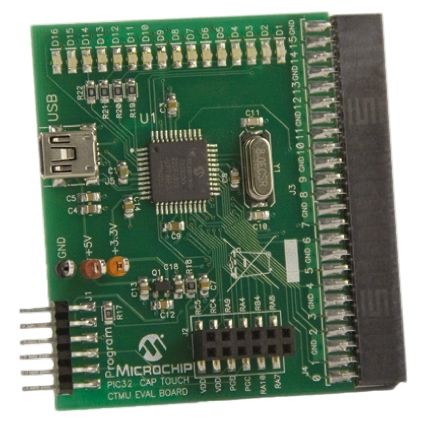

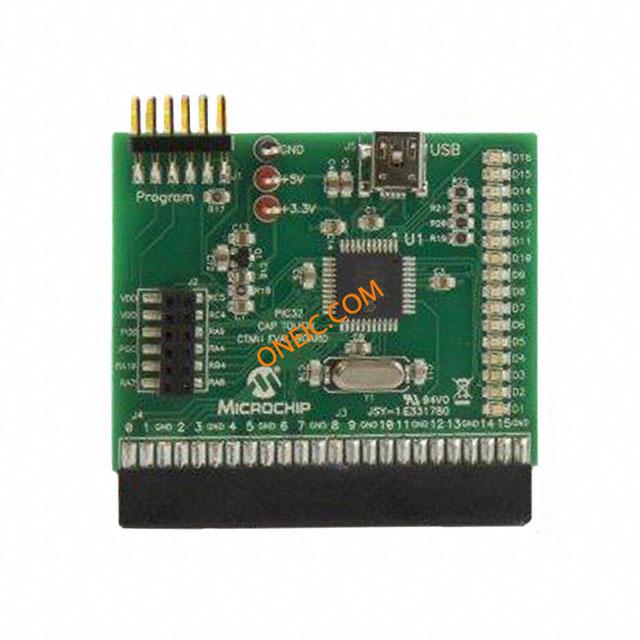

AC323027

制造商	Microchip Technology Inc.
描述	Evaluation Board Is Designed To Facilitate The Development Of Capacitive Touch-Based Applications Development Boards & Kits - PIC / DSPIC PIC32 CTMU Eval Board PIC32MX CTMU Evaluation Board BOARD EVAL PIC32 CAP TOUCH CTMU PIC32, CAPACITIVE TOUCH, EVAL BOARD PIC32MXCTMUEvaluationBoard Microchip 32 位 MCU 评估测试板
分类	嵌入式系统与开发工具嵌入式MCU与DSP评估板MCU评估板

对参数有疑问？问 AI 助手

商业参数

最小起订量	1	产品	Evaluation Boards
单位包装	1	标准包装数量	Boxed

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85423190	无铅定义	RoHS-conform

电气参数

核心类型	PIC	接口	USB
传感器类型	Touch, Capacitive	供电电压	5 V
元件数量	:PIC32MX

机械参数

重量

0.04

产品信息

类型	Development Kit	内容	Board
嵌入式	Yes, MCU, 32-Bit	产品特性	:PICkit Serial Interface via an on-board ICSP Header, 16bit LED Display
匹配码	AC323027	套件内容	:Eval Board PIC32MX, ICSP Header, USB Connector, 16-bit LED Display
制造商全称	:PIC32MX320Fxxxx	开发套件	EVALBOARD
标准交期	6 weeks	工具类型/特性	PIC32MX
使用的IC/零件	PIC32 Series	芯片组制造商	:Microchip

环境参数

机械寿命

New Product: New from this manufacturer.

文档与媒体

PDF 文档

CTMU for Capacitive Touch Applications AN1250

PDF 文档

PIC32 CTMU Eval Brd BOM

PDF 文档

PIC32MX CTMU Eval Brd Schematic

PDF 文档

PIC32 mTouch Eval Brd Info Sheet

PDF 文档

Enhanced mTouch Capacitive Touch Eval Kit Guide

PDF 文档

51998A.pdf

PDF 文档

01250a.pdf

相关型号

PIC24FJ256GB110-I/PT

microchip

MCU 16-bit PIC24 PIC RISC 256KB Flash 2.5V/3.3V 100-Pin TQFP Tray 16-bit Microcontrollers - MCU 16B 16MIPS 256KB I/O RAM84 OTG MCU 16-bit PIC24F PIC RISC 256KB Flash 2.5V/3.3V 100-Pin TQFP Tray 16 bit MCU 12x12x1 mm TQFP100 IC MCU 16BIT 256KB FLASH 100TQFP PIC24FJ256GB110-I/PT, 16 bit Microcontroller PIC 32MHz 256kb Flash, 16kb RAM, USB I2C SPI 100-Pin TQFP MCU, 16BIT, 256K FLASH, 16MIPS, 100TQFP 16-Bit,16MIPS,100-PIN,256KBFlash,8192BytesRAM,84I/O,nanoWatt,USBOTG Microcontroller 16 Bit TQFP-100, PIC24FJ256GB110-I/PT, Microchip Microchip PIC24FJ 系列 16 bit PIC MCU, 32MHz, 256 kB ROM 闪存, 16 kB RAM, 1xUSB, 100针 TQFP封装 PIC24FJ 256K TQFP100 85°C

¥27.1800

详情

PIC32MX220F032B-I/SP

Microchip Technology

32-bit Microcontrollers - MCU 32B MCU 32KB FL 8KB RAM 40MHz 28Pin 32 bit MCU SPDIP28 IC MCU 32BIT 32KB FLASH 28SDIP PIC32MX220F032B-I/SP, 32 bit Microcontroller PIC 40MHz 35kb Flash, 8kb RAM, USB I2C SPI 28-Pin SPDIP MCU 32-bit PIC32 PIC RISC 32KB Flash 2.5V/3.3V 28-Pin SPDIP Tube IC, 32 BIT MCU, PIC32, 28SPDIP PIC microcontroller; SRAM:8kB; 40MHz; DIP28; 2.3÷3.6V Microcontroller 32 Bit PDIP-28, PIC32MX220F032B-I/SP, Microchip Microchip PIC32MX 系列 32 bit PIC MCU, 40MHz, 35 kB ROM 闪存, 8 kB RAM, 1xUSB, 28针 SPDIP封装

¥9.0600

详情

PIC32MX220F032B-I/SS

microchip

MCU 32-bit PIC32 PIC RISC 32KB Flash 2.5V/3.3V 28-Pin SSOP Tube 32 bit MCU SSOP28 IC MCU 32BIT 32KB FLASH 28SSOP PIC32MX220F032B-I/SS, 32 bit Microcontroller PIC 40MHz 35kb Flash, 8kb RAM, USB I2C SPI 28-Pin SSOP 32-bit Microcontrollers - MCU PIC32 32KB FL 8KBRAM 40MHz USB CTMU 4 DMA MCU, 32BIT, 32K FLASH, 28SSOP Microchip PIC32MX 系列 32 bit PIC MCU, 40MHz, 35 kB ROM 闪存, 8 kB RAM, 1xUSB, 28针 SSOP封装

¥9.0600

详情

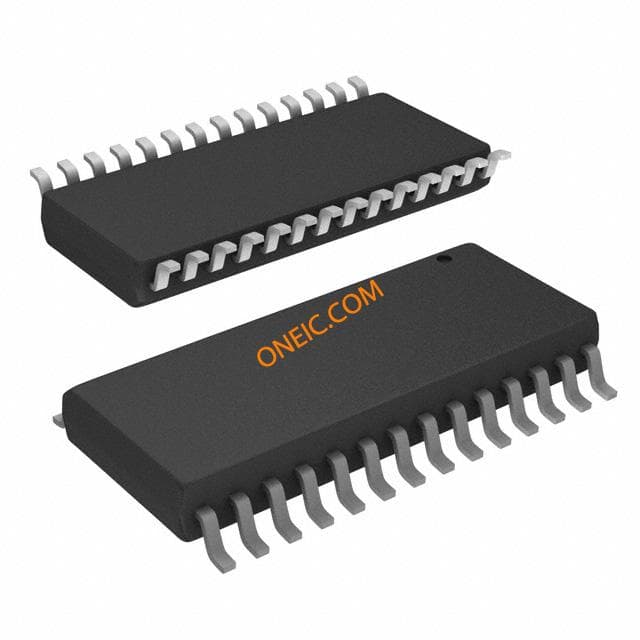

PIC32MX110F016B-I/SO
