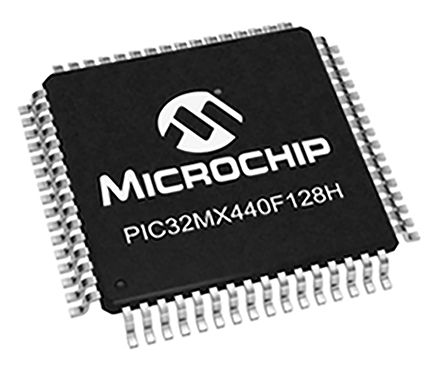

PIC32MX440F128H-80I/PT
| 制造商 | Microchip Technology Inc. |
| 描述 | MCU 32-bit PIC32 PIC RISC 128KB Flash 2.5V/3.3V 64-Pin TQFP Tray 128 KB Flash, 32 KB RAM, USB-OTG, 80 IC MCU 32BIT 128KB FLASH 64TQFP 32-bit Microcontrollers - MCU 128 KB Flash 32KBRAM 80MHz 10B ADC MCU, 32BIT, 128K FLASH, USB-OTG, 64TQFP 64-Pin,128KBFlash,32KBRAM,USB-OTG,80MHz,10-BitADC,DMA Microchip PIC32MX 系列 32 bit PIC MCU, 80MHz, 128 + 12 kB ROM 闪存, 32 kB RAM, 64针 UQFN封装 |
| 分类 |
商业参数
| 最小起订量 | 160 | 单位包装 | 160 |
| 其他名称 | PIC32MX440F128H80IPT | 产品类别 | 32-bit Microcontrollers - MCU |
| 标准包装数量 | Trays | 工厂包装数量 | 160 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85411000 | 抗辐射加固 | No |
电气参数
| 输入端 | 51 | 转速 | 80 MHz |
| 定时器 | 5-16-bit | 存储器 | 128KBytes |
| RAM 大小 | 32 KB | 内核大小 | 32-Bit |
| 核心类型 | PIC | 频率 | 80 MHz |
| 接口 | I2C/SPI/UART/USB | 时钟速率 | 80 MHz |
| 比较器数量 | 2 | 存储器容量 | 16 KB |
| 存储器类型 | Flash | I/O 数量 | 51 |
| 电压范围 | 2.3-3.6V | 位数 | 32 |
| 看门狗定时器 | 1 | 时钟频率 | :80MHz |
| 数据转换器 | A/D 16x10b | DAC数量 | :5 |
| 振荡器类型 | Internal | 供电电压 | 2.5|3.3 V |
| 通道数量 | 16 | 模拟输入/输出 | 2 |
| 非易失性存储器 | 0Bytes | 程序存储器大小 | 128 KB |
| 程序存储器类型 | Flash | 最小供电电压 | 2.3 V |
| 每元件位数 | 10 bit | 供电电压 (Vcc/Vdd) | 2.3 V ~ 3.6 V |
机械参数
| 重量 | 0.006667 | 包装方式 | Tray |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :64 |
| 封装形式 | 64TQFP | 冷却的封装 | TQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 位数 | 64 |
| 供应商器件封装 | 64-TQFP (10x10) | 核心数/总线宽度 | 32 Bit |
产品信息
| 系列 | PIC32MX4 | 闪存大小 | :128KB |
| 片内RAM（通道数×位宽） | 16-chx10-bit | 外设 | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| 架构 | RISC | 连接性 | I²C, IrDA, LIN, PMP, SPI, UART/USART, USB OTG |
| 可编程性 | Yes | 核心处理器 | MIPS32® M4K™ |
| 定时器数量 | 5 | 控制器系列 | :PIC32 |
| 射频系列/标准 | PIC32 | A/D转换器数量 | :16 |
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
