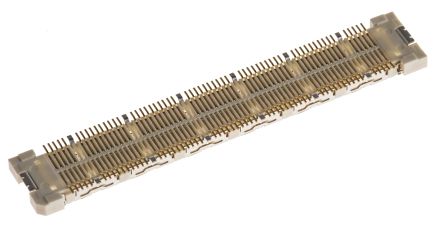

FX10B-120S/12-SV(71)
| 制造商 | Hirose Electric Co., Ltd. |
| 描述 | CONN RECEPT 120POS W/O POST SMD Board to Board & Mezzanine Connectors REC 120POS W/O POST SMT Conn Board to Board RCP 120 POS 0.5mm Solder ST SMD Tray Hirose FunctionMAX FX10 系列 2行 12（接地），120（信号）路 直 0.5mm节距 表面贴装 印刷电路板插座, 板对板 |
| 分类 |
商业参数
| 标准包装数量 | 60 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 50 V | 接触电阻 | 60 mohm |
| 最大额定电流 | 300 mA | 最小供电电压 | 50VAC |
机械参数
| 深度 | 7.3 mm | 间距 | 0.020" (0.50mm) |
| 高度 | 3.2 mm | 包装方式 | Tray |
| 方向 | 直 | 端接方式 | Solder |
| 外壳颜色 | Beige | 安装类型 | Surface Mount |
| 连接器类型 | Receptacle, Center Strip Contacts | 接触镀层 | Gold |
| 安装样式 | Surface Mount | 排数 | 2 |
| 堆叠方法 | 4 mm | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer (LCP) | 总长度 | 43.1 mm |
| 端接排数 | 焊接 | 端接样式 | SMD |
| 板面高度 | 0.126" (3.20mm) | 触点数 | 120 |
| 位数 | 120 | 安装高度（最大） | 0.126" (3.20mm) |
| 配接堆叠高度 | 4mm, 5mm | 接触镀层厚度 | 3.9µin (0.10µm) |
产品信息
| 类型 | Board to Board | 连接器性别 | RCP |
| 系列 | FX10 | 已删除 | Compliant |
| 产品特性 | Ground Plate, Solder Retention | 主要用途 | Ground Plate, Solder Retention |
| 产品子类型 | Receptacles | 输出配置 | Surface Mount |
环境参数
| 插拔次数 | 4mm, 5mm | 工作温度 | -55C to 85C |
文档与媒体
相关型号
FX10B-120P/12-SV1(71)
Hirose Connector
基板間およびメザニンコネクタ HDR 120POS W/O POST SMT CONN HEADER 120POS W/O POST SMD Board to Board & Mezzanine Connectors HDR 120POS W/O POST SMT Conn Board to Board HDR 120 POS 0.5mm Solder ST SMD Tray
.jpg&w=3840&q=75)

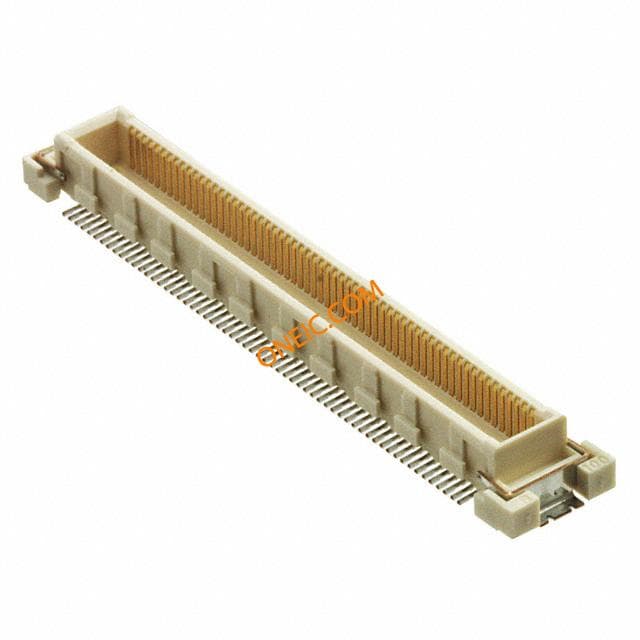

FX10A-120P-SV(71)
