.jpg)
点击放大查看

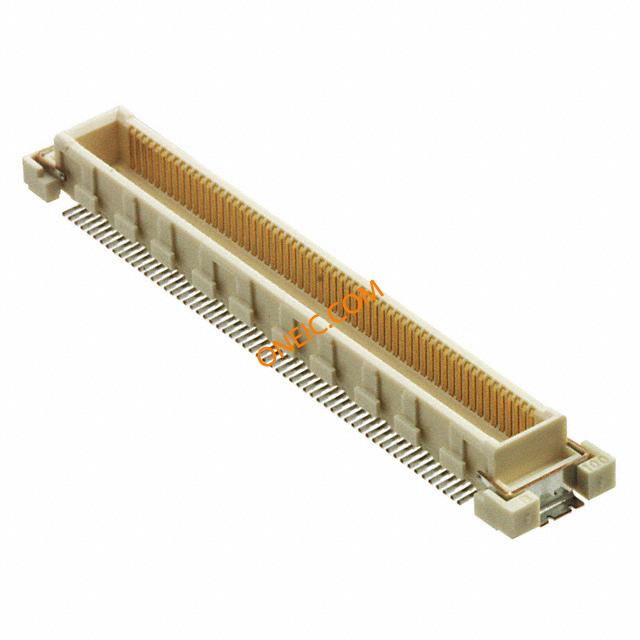

FX10A-120P-SV(71)
| 制造商 | Hirose Electric Co., Ltd. |
| 描述 | 基板間およびメザニンコネクタ HDR 120P W/POST SMT CONN HEADER 120POS W/POST SMD Board to Board & Mezzanine Connectors HDR 120P W/POST SMT |
| 分类 |
商业参数
| 标准包装数量 | 60 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 50 V | 最大额定电流 | 300 mA |
机械参数
| 间距 | 0.020" (0.50mm) | 包装方式 | Tray |
| 安装类型 | Surface Mount | 连接器类型 | Header, Outer Shroud Contacts |
| 接触镀层 | Gold | 排数 | 2 |
| 堆叠方法 | 4 mm | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer (LCP) | 端接样式 | SMD |
| 板面高度 | 0.138" (3.50mm) | 触点数 | 120 |
| 位数 | 120 | 配接堆叠高度 | 4mm |
| 接触镀层厚度 | 3.9µin (0.10µm) | ||
产品信息
| 系列 | FX10 | 产品特性 | Board Guide, Solder Retention |
| 产品子类型 | Headers | ||
