M20-9990245
| 制造商 | |

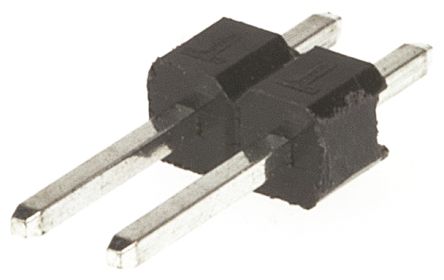

| 描述 | HARWIN M20-99 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 02 SIL VERTICAL PIN HEADER GOLD HT Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag HEADER, THT, 2.54MM, 1ROW, 2WAY BOARD TO BOARD CONNECTOR, HEADER, 2POS, 1ROW M20HDR,PIN,SIL,VERT,2W HARWIN M20 系列 2.54mm节距 2路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 接触电阻 | 25 mohm | 最大额定电流 | 3A |
| 绝缘电阻 | :10000Mohm | 额定交流电压（相间） | :750V |
机械参数
| 深度 | 2.54 mm | 间距 | 2.54mm |
| 高度 | 8.64 mm | 重量 | 0.011 |
| 包装方式 | Bag | 端接方式 | Solder |
| 引脚间距 | :2.54mm | 外壳颜色 | Black |
| 安装类型 | Straight | 接触镀层 | Gold |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon 6T |
| 总长度 | 5.08 mm | 端接样式 | Through Hole |
| 触点数 | 2 | 接触件端接 | :Through Hole Vertical |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | M20-99 | 产品子类型 | Headers |
环境参数
| 插拔次数 | :300 | 工作温度 | -40C to 105C |
