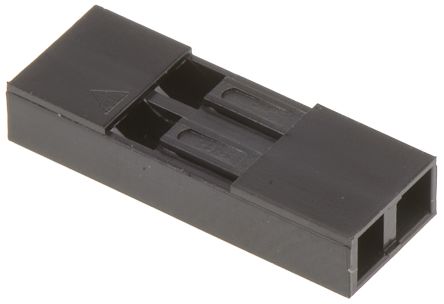

点击放大查看
M20-1060200
| 制造商 | |
| 描述 | M20 CRIMP HOUSING, SIL, 2w, 2.54mm Headers & Wire Housings 2 PIN SIL HOUSING HOUSING, CRIMP, RECEPTACLE, 2.54MM, 2WAY WIRE TO BOARD CONNECTOR, RCPT, 2POS, 1ROW M20CRIMPHOUSING,SIL,2w,2.54mm HARWIN M20-10 系列 1 行 2.54mm 节距 2 路 直 母 PCB 壳体 |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :HARWIN - M20-1 Series | 额定电压 | :250V |
| 接触电阻 | :20mohm | 最大额定电流 | :3A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 深度 | 14mm | 间距 | 2.54mm |
| 宽度 | 2.54mm | 长度 | 5.28mm |
| 重量 | 0.01 | 安装类型 | Straight |
| 接触镀层 | :- | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | PPO | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 2 |
| 接触件端接 | :Crimp | 位数 | :2 |
| 绝缘材料 - 材质 | :PBT (Polybutylene Terephthalate), Glass Filled | ||
产品信息
| 连接器性别 | Female | 系列 | M20-10 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles / Sockets - Housings |
| 适用产品/相关产品 | M20 Series Connector | ||
环境参数
| 工作温度 | :105°C | ||
