芯天下
19300480298

点击放大查看

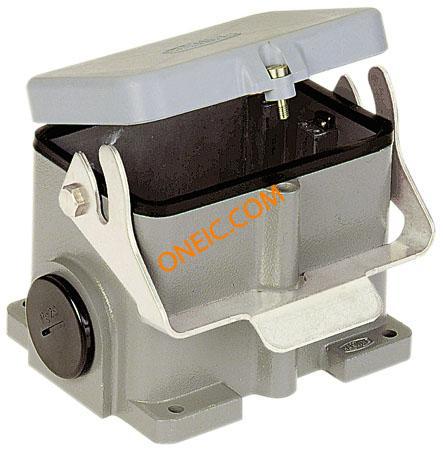

19300480298

制造商
HARTING Technology Group
描述
Heavy Duty Power Connectors SURFACE MOUNTNG HSG 2 SIDE ENTRIES HAN B BASE SURFACE 1 LEVER 2XM40 Connector, panel socket, han CONN BASE SIDE ENTRY SZ48B M40 HanBBasesurface1lever2xM40 Enclosure: for Han connectors; Han; size 48B (2 x 24B); M40; IP65 Han B Housings: Han B Base surface 1 lever 2xM40 Harting Han B 系列 电源连接器
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名019 019-30-048-0298 0298 048 30产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量1

合规参数

RoHSCompliant

电气参数

连接器类型 - 电压输入with cover

机械参数

尺寸48B重量1.33 kg
包装方式Bulk螺纹尺寸M40
外壳颜色Gray安装类型flange (4 holes), on panel, on cable
衬套螺纹M40连接器类型Base - Box Mount
外壳涂层Powder Coated封装形式size 48B (2 x 24B)
锁定特性with lock壳体材料Aluminum, Die Cast
尺寸/外形5.551" L x 4.724" W x 3.898" H (141.00mm x 120.00mm x 99.00mm)供应商器件封装for Han connectors
外壳与棱镜材料aluminium alloy

产品信息

类型CONNECTORS样式Side Entry
系列*产品特性Cover, Feed Through
CAD图纸3D CAD Model产品子类型Receptacle Housings
锁定位置Side Clip on Base Bottom附件类型Hood
适配器系列Han单元数量1
加载位置数2

环境参数

防护等级IP65 - Dust Tight, Water Resistant工作温度-40°C ~ 125°C
