点击放大查看

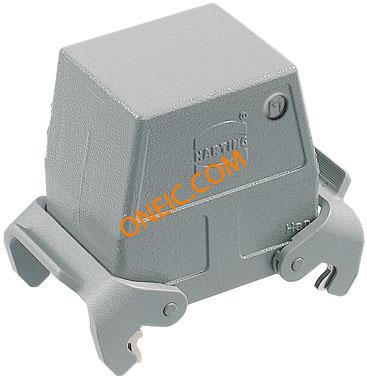

19200320537

制造商	HARTING Technology Group
描述	Heavy Duty Power Connectors METAL HOOD HAN 32A 2 LVR LCKING HAN A HOOD SIDE ENTRY HC 2 LEVER CONN HOOD SIDE ENTRY SZ32A M32
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	019 019-20-032-0537 032 0537 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	1

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	32A	包装方式	Bulk
螺纹尺寸	M32	外壳颜色	Gray
连接器类型	Hood	外壳涂层	Powder Coated
壳体材料	Aluminum, Die Cast	尺寸/外形	3.228" L x 2.205" W x 3.110" H (82.00mm x 56.00mm x 79.00mm)

产品信息

样式	Side Entry	系列	*
产品子类型	Receptacle Housings	锁定位置	Locking Clip on Hood

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
