点击放大查看

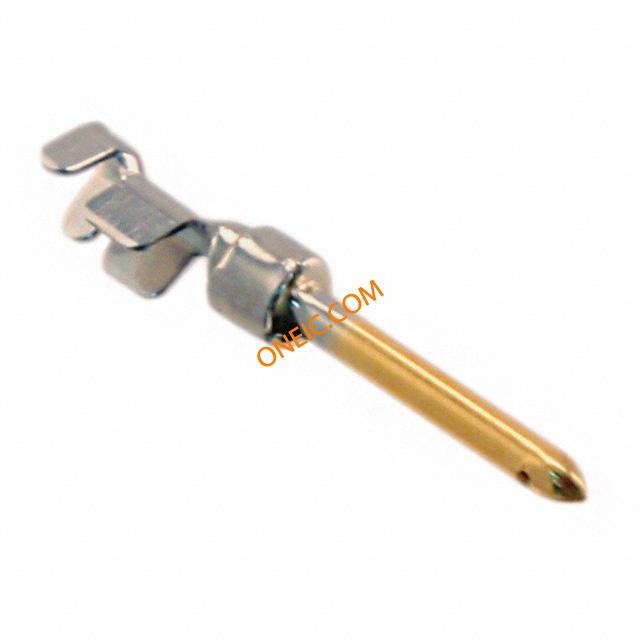

09670008178
| 制造商 | |
| 描述 | D-Sub Contacts MALE CRIMP CONTACT 24-20 AWG Contact PIN Crimp ST Cable Mount Bag CONN CONTACT PIN 20-24AWG CRIMP DSUB stamped crimp contact male Harting 公 压接 D-sub 连接器触点, 镀金 触点, 24 → 20 AWG |
| 分类 |
商业参数
| 零件号别名 | 000 09 09-67-000-8178 67 8178 | 产品类别 | D-Sub Contacts |
| 标准包装数量 | 1 | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10mΩ | 最大额定电流 | 6.5A |
机械参数
| 深度 | 2.46 | 高度 | 1.98 |
| 长度 | 14.78mm | 镀层 | Gold |
| 材料（通用） | Brass | 包装方式 | Bag |
| 导线线规 | 24-20 | 端接方式 | Crimp |
| 重量（g） | 0.08700 | 触头类型 | Stamped / Formed Contacts |
| 安装类型 | Cable Mount | 插针或插孔 | Pin |
| 连接器类型 | Connector D-Subminiature | 接触镀层 | Gold |
| 触头材料 | Brass | 总长度 | 14.78 |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 线规或范围 - mm² | 24 → 20 AWG | ||
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
