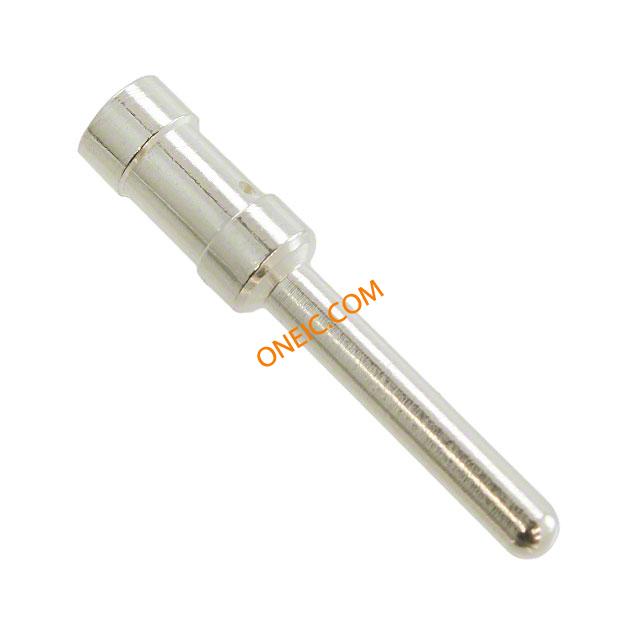

09330006107

制造商	HARTING Technology Group
描述	HAN E M CRIMP CONTACT AG 12 AWG Heavy Duty Power Connectors HAN E MALE AWG 12 SILVER PLATED CRIMP Han E Male Crimp Contact Ag 4 mm 12 AWG HANEMCRIMPCONTACTAG4MM/12AWG Contact; male; 4mm2; Han E; silver plated; crimped; 16A; 1mΩ Han E Contacts Male: Han E M Crimp Contact Ag 4 mm/12 AWG Harting Han Contacts 系列公插压接触点 , 额定电流 16A/ 830 V, 适用于大负荷电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	000 09 09-33-000-6107 33 6107	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	100

合规参数

RoHS

Compliant

电气参数

额定电压	830 V	接触电阻	1mΩ
最大额定电流	16A

机械参数

重量	1.44 g	包装方式	Bulk
导线线规	12 AWG	重量（g）	1.34000
安装类型	crimped	插针或插孔	Pin
连接器类型	male	接触镀层	Silver
插入力	Male	触头材料	Copper Alloy
包装数量	16	连接器 - 电缆	contact
端接样式	Crimp	接触件端接	Crimp
接触镀层厚度	118.1µin (3.00µm)	线规或范围 - AWG	12
线规或范围 - mm²	4mm2	触点材料 - 镀层	silver plated

产品信息

SPG	16	类型	CONNECTORS
连接器性别	Male	系列	Han-EEE
产品子类型	Contacts	附件类型	Crimp Contact
适配器系列	Han E	测量范围	Han Com、Han E、Han EE、Han Modular 70A 混合
单元数量	1	适用产品/相关产品	Heavy Duty Power Connector

环境参数

机械寿命

500cycles
