点击放大查看

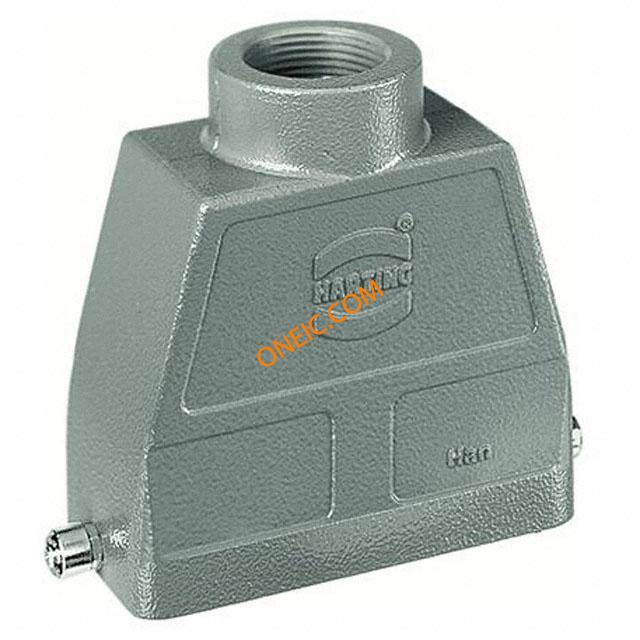

09300100442

制造商	HARTING Technology Group
描述	HAN B HOOD TOP HC 2 REELS PG 21 Heavy Duty Power Connectors HAN 10B PG21 TOP METAL HOOD High top entry hood for 1 lever PG21 HANBHOODTOPENTRYHC2REELSPG21 Enclosure: for Han connectors; Han; size 10B; for cable; high Han B Hoods: Han B Hood Top Entry HC 2 Reels PG 21 Harting Han B 系列侧入电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	010 0442 09 09-30-010-0442 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

电气参数

连接器类型 - 电压输入

high

机械参数

尺寸	10B	重量	0.19 kg
包装方式	Bulk	方向	straight
螺纹尺寸	PG21	外壳颜色	Gray
衬套螺纹	PG21	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	Straight
封装形式	size 10B	插入力	Female
锁定特性	for latch	壳体材料	Aluminum, Die Cast
包装数量	2	尺寸/外形	2.858" L x 1.693" W x 3.425" H (72.60mm x 43.00mm x 87.00mm)
端接样式	Cable	触点数	1
供应商器件封装	for Han connectors	外壳与棱镜材料	aluminium alloy

产品信息

SPG	2	类型	CONNECTORS
样式	Top Entry	系列	Han C
产品子类型	Hoods	锁定位置	Side Clip on Base Bottom
附件类型	Hood	适配器系列	Han
单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

09380082701

Harting Technology Group

CONN FEMALE INSERT 4+4 POLES +PE 690V 63A WITHOUT PIN 4 Heavy Duty Power Connectors FEMALE INSERT HAN 10B SCW TERM HAN K4/4-F FINGER PROT Han K Female Insert: Han K4/4-F 6-16mm Finger prot Harting Han Com 系列 2行 4针插座电源连接器

¥948.8271

详情

09330102701

Harting Technology Group

Conn Rectangular F 10Power/2Ground POS Screw ST Panel Mount Heavy Duty Power Connectors HAN E 10P F SCREW SCREW TERMINATION HAN E 10 POS. F INSERT SCREW Han(R) E 10P skt insert,16A 500V PowerConnectorInsert;Female;10 HanE10Pos.FInsertScrew Connector: HAN; female; E; PIN:10; 10+PE; size 10B; screw terminal Han E Female Insert: Han E 10 Position F Insert Screw Harting Han E 系列 2行 10针 10P+E极插座插片

¥98.1648

详情

09330102702

Harting Technology Group

Conn Housing F 10 POS Crimp ST Panel Mount HAN 10E INSERT FEMALE CRIMP Han E 10P+E insert for skt contact,16A Heavy Duty Power Connectors HAN E 10P F CRIMP ORDER CONTACTS SEP HAN INSERT, RECEPTACLE, 10WAY, CRIMP Han10Einsertfemalecrimp Connector: HAN; female; Han E; PIN:10; 10+PE; size 10B; crimped; 16A Han E Female Insert- Crimp: Han 10E insert female crimp Harting Han E 系列 2行 10针插座电源连接器

¥29.6725

详情

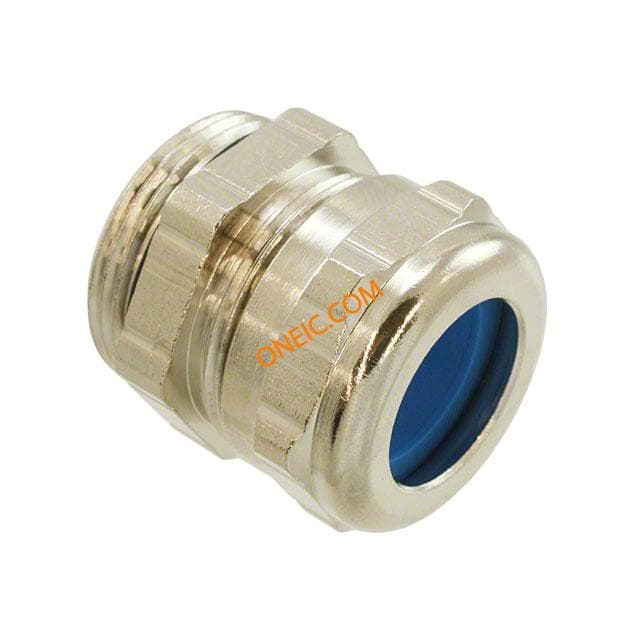

09000005093

Harting Technology Group

Cable Accessories Cable Gland Blue Heavy Duty Power Connectors UNI SEAL PG21 BLUE 14-18mm CABLE DIA CONN UNI SEAL BLUE PG 21 Accessory Universal Seal Blue (PG 21) min 14 max 18 AccessoryUniversalSealBlue(PG21)min14max18 Cable Glands metal: Acces. Uni Seal Blue PG 21 min 14 max 18 Harting IP68 蓝色金属电缆固定头 , 14mm 至 18mm电缆直径, PG21螺纹

¥164.0184

详情

09320183101

Harting Technology Group

Conn Housing F 19 POS Crimp ST Heavy Duty Power Connectors HAN EE 18P F CRIMP ORDER CONTACTS SEP HAN EE 18POS INSERT FEMALE CRIMP HanEE18Pos.InsertFemaleCrimp Connector: HAN; female; Han EE; PIN:18; w/o terminals; 500V Han EE Female insert Crimp: Han EE 18 Position Insert Female Crimp Harting Han EE 系列 4行 18针 18P+E极插座插片

¥59.5625

详情

09160423101

Harting Technology Group

Conn Housing F 42Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 42P F CRIMP ORDER CONTACTS SEP HAN DD 42 POS. F INSERT CRIMP Han(R) DD 42P+E socket insert,10A 250Vac PowerConnectorInsert;Female;42 Connector: HAN; female; Han DD; PIN:42; 42+PE; size 10B; UL94V-0 Han DD Female Insert: Han DD 42 Position F Insert Crimp Harting Han DD 系列 6行 43针插座电源连接器

¥80.4424

详情

09330102716

Harting Technology Group

Conn Housing F 10 POS Crimp ST Heavy Duty Power Connectors HAN ES 10B 10P FEMAL CAGE-CLAMP TERM HAN 10 ES-F INSERT Han ES 10P cageclamp skt insert,16A 500V HANES10-WAYC/CLAMPSKT HeavyDutyPowerConnector;HANES10B10PFEMALECAGE-CLAMPTERM Connector: HAN; female; Han ES; PIN:10; 10+PE; size 10B; 16A; 500V Han E Female Insert: Han 10 ES-F insert Harting Han ES 系列 2行 10针插座电源连接器

¥211.8662

详情

09330102616

Harting Technology Group

Conn Rectangular M 10 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN ES 10P MALE CAGE-CLAMP TERM HAN ES 10 POS. M INSERT Han ES 10P cageclamp plg insert,16A 500V HANES10POS.MINSERT Connector: HAN; male; Han ES; PIN:10; 10+PE; size 10B; spring clamp Han E Male Insert: Han ES 10 Position M Insert Harting Han ES 系列 2行 10针插头电源连接器

¥196.7602

详情

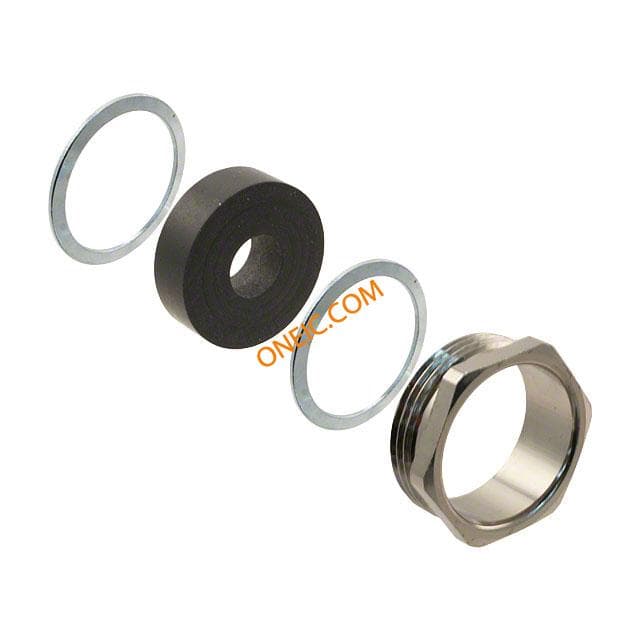

09000005016
