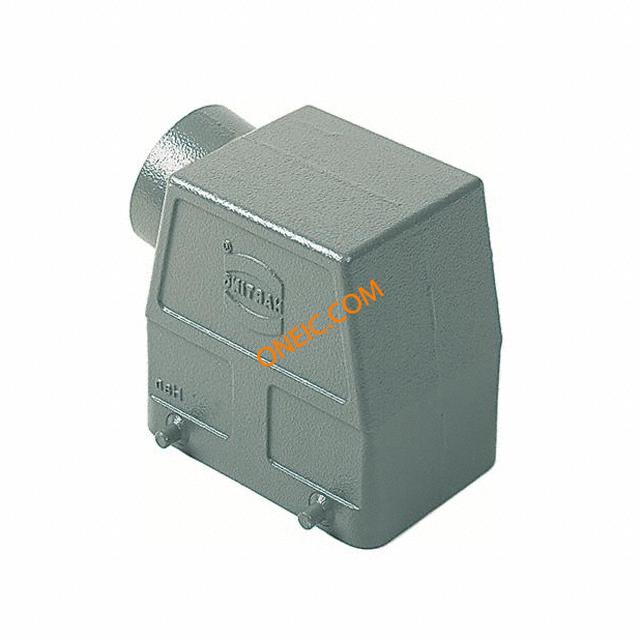

点击放大查看

09200320521

制造商
HARTING Technology Group
描述
HAN A HOOD SIDE HC 4 PEGS PG 29 Heavy Duty Power Connectors HAN 32A PG29 SID ENT HAN32AHood(SideEntry,DoubleLeverPeg)PGThread Han A Hoods: Han A Hood Side Entry HC 4 Pegs PG 29 Harting Han A 系列 侧入 电源连接器
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名032 0521 09 09-20-032-0521 20产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量10

合规参数

RoHSRoHS Compliant

电气参数

最大额定电流32 A

机械参数

尺寸32A包装方式Bulk
方向侧入螺纹尺寸PG29
重量（g）238.00000外壳颜色Gray
连接器类型Hood外壳涂层Powder Coated
安装样式Side插入力Female
壳体材料Aluminum, Die Cast尺寸/外形3.228" L x 2.205" W x 3.110" H (82.00mm x 56.00mm x 79.00mm)
端接样式Cable触点数51

产品信息

类型CONNECTORS样式Side Entry
系列Han D产品子类型Housings
锁定位置Locking Clip on Base Bottom基础产品编号92000

环境参数

防护等级IP65 - Dust Tight, Water Resistant工作温度-40°C ~ 125°C
