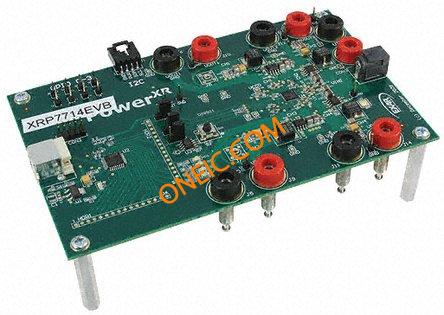

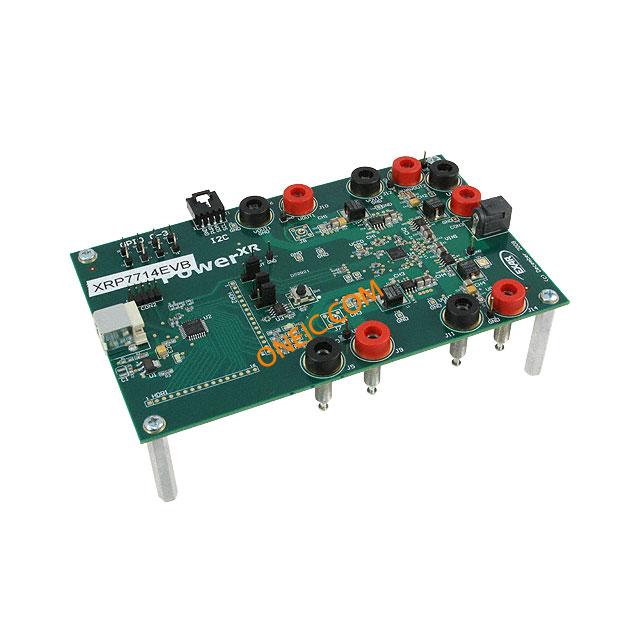

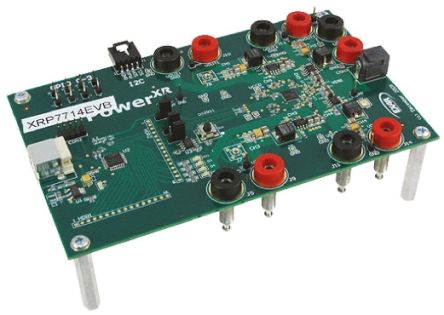

XRP7714EVB
| 制造商 | Exar Corporation |
| 描述 | Power Management IC Development Tools Eval Board for XRP7714 Series Evaluation Board For Quad Channel Digital PWM Step Down Controller BOARD EVAL FOR XRP7714 Development Kit, Power Management With Evaluation Board for XRP7714 XRP7714, PWM CONTROLLER, EVAL BOARD EXAR |
| 分类 |
商业参数
| 产品 | Demonstration Boards | 其他名称 | 1016-1350 |
| 产品类别 | Power Management IC Development Tools | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Supplier Unconfirmed |
| 海关税号 | 85423190 | ||
电气参数
| 核心类型 | :Power Management - Voltage Regulator | 接口 | I2C, USB |
| 额定电压 | 4.5 V to 25 V | 稳压器拓扑 | Buck |
机械参数
| 重量 | 0.25 | 电路板厚度 | Fully Populated |
产品信息
| 类型 | PWM Controllers | 内容 | Board |
| 产品特性 | :4 Channel Step Down Controller, I2C Interface, DPWM Channels | 功能 | Four Channel Digital PWM |
| 技术 | Power Management | 套件内容 | Evaluation Board for XRP7714 |
| 主要用途 | DC/DC, Step Down | 卡标准 | Development Kit |
| 工具类型/特性 | XRP7714 | 使用的IC/零件 | XRP7714 |
| 芯片组制造商 | :Exar | 支持MCU系列 | :XRP7714 |
