点击放大查看
商业参数
| 产品类别 | Jones Plugs & Sockets | 标准包装数量 | 250 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94V-0 |
电气参数
| 额定电压 | 300V | ||
机械参数
| 间距 | 0.228" (5.80mm) | 重量 | 0 |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 柱间距 | 5.8mm | 基体材料 | PBT |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | for cable |
| 排数 | 1 | 锁定特性 | :Latch |
| 本体材料 | :PBT (Polybutylene Terephthalate) | 包装数量 | 20 |
| 连接器 - 电缆 | plug | 接触件端接 | Crimp |
| 位数 | 2 | 绝缘材料 - 材质 | silicone rubber |
产品信息
| SPG | 20 | 备注 | Contacts Not Provided |
| 连接器性别 | :Receptacle | 系列 | :570 Waterproof |
| 产品特性 | Waterproof | 产品子类型 | Plug Connectors |
| 适配器系列 | 570 | 单元数量 | 1 |
| 适用产品/相关产品 | :570 Series Crimp Contacts | ||
环境参数
| 防护等级 | IP67 | 工作温度 | -40...105°C |
文档与媒体
相关型号
565-280-210
EDAC
Crimpers HANDTOOL - CRIMPING TOOL, CRIMP, HAND, EDAC 565/570 Crimp Tool, 565-280-210, Edac EDAC 560 and 572 系列 Hand Crimping Tool 压接工具 , 适用于22 → 28 AWG 线规格

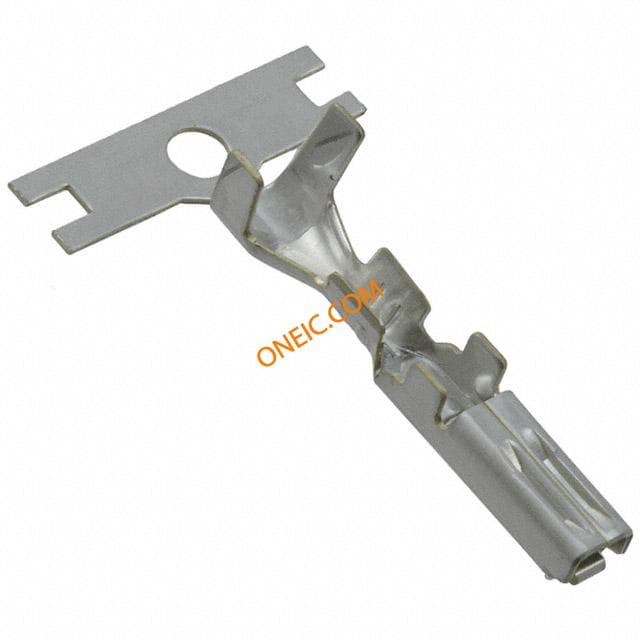

570-290-721
EDAC
Automotive Connectors 568/570 FEMALE CONT SMALL GAUGE 568/570 FEMALE CONT SMALL GAUGE CONTACT, CRIMP, SOCKET, 22-20AWG CONTACT, SOCKET, 22-20AWG, CRIMP Contact; female; 22÷28AWG; 570; tinned; crimped; for cable; 10A Crimp contact, 10 A, 570-290-721, Edac
570-290-761
EDAC
Automotive Connectors FEMALE TERM 14 AWG 567/570 SERIES CONNECTORS MODULAR Terminal Female AWG 14 567/570 Series Crimp contact, 10 A, 570-290-761, Edac

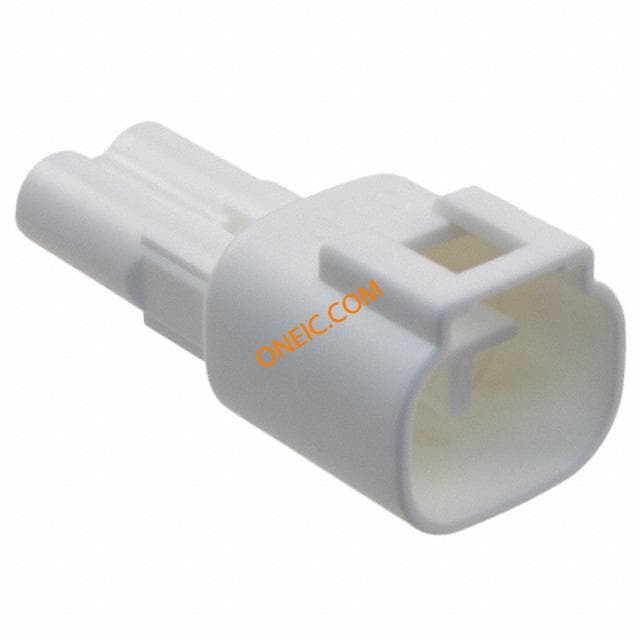

570-002-000-100
