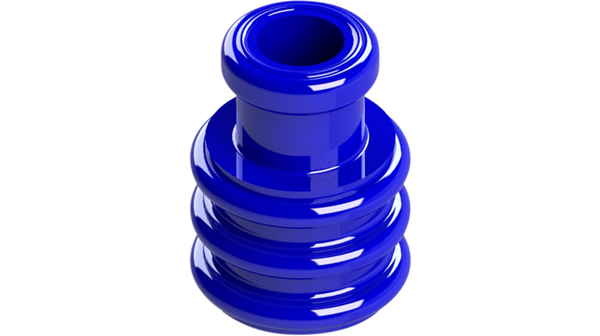

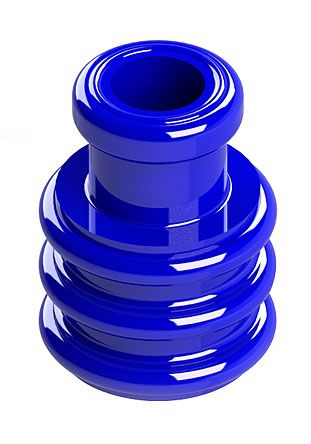

570-260-003
| 制造商 | |
| 描述 | 568/570 WIRE SEAL BLUE .083-.106 Heavy Duty Power Connectors 568/570 WIRE SEAL BLUE .083 TO .106 WIRE SEAL, 2.7MM DIA MAX, BLUE, 6.7MM LONG WIRE SEAL, 2.1-2.7MM, BLUE Seal for wire; 570; IP67; Gasket: silicone rubber; 2.1÷2.7mm Wire Seal 6.7 mm blue, 570-260-003, Edac EDAC 570 系列 电线密封, 使用于防水连接器 |
| 分类 |
商业参数
| 标准包装数量 | 280 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
机械参数
| 重量 | 0 | 外壳镀层 | :Silicone Rubber |
| 线径 | 2.1...2.7mm | 连接器用途 | seal for wire |
| 包装数量 | 62 | 绝缘材料 - 材质 | silicone rubber |
| 外径-未扩张 | :2.7mm | ||
产品信息
| SPG | 62 | 系列 | :- |
| 产品特性 | Splash-Proof | 产品子类型 | Accessories |
| 附件类型 | Seal | 适配器系列 | 570 |
| 单元数量 | 1 | 适用产品/相关产品 | 570 Series |
环境参数
| 防护等级 | IP67 | 工作温度 | -40...105°C |
