570-290-761
| 制造商 | |
| 描述 | Automotive Connectors FEMALE TERM 14 AWG 567/570 SERIES CONNECTORS MODULAR Terminal Female AWG 14 567/570 Series Crimp contact, 10 A, 570-290-761, Edac |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Standard Connectors | 标准包装数量 | 280 |
合规参数
| RoHS | No | ||
电气参数
| 额定电压 | 300 V | 接触电阻 | 10 mOhm |
| 最大额定电流 | 10 A | ||
机械参数
| 包装方式 | Tape & Reel (TR) | 导线线规 | 14 AWG |
| 插针或插孔 | Socket | 接触镀层 | Brass |
| 安装样式 | Wire | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Crimp |
| 线规 - 端部 | 14 | 接触件端接 | Crimp |
| 横截面形状 | 2.00...2.00 mm² | 位数 | 1 |
| 第一连接器极性 | Female | 线规或范围 - AWG | 14...14 AWG |
| 外管直径（最大） | 3.1 | ||
产品信息
| 系列 | 570 | 连接方式 | Wire-Wire |
环境参数
| 工作温度 | - 40 C to + 105 C | ||
文档与媒体
相关型号

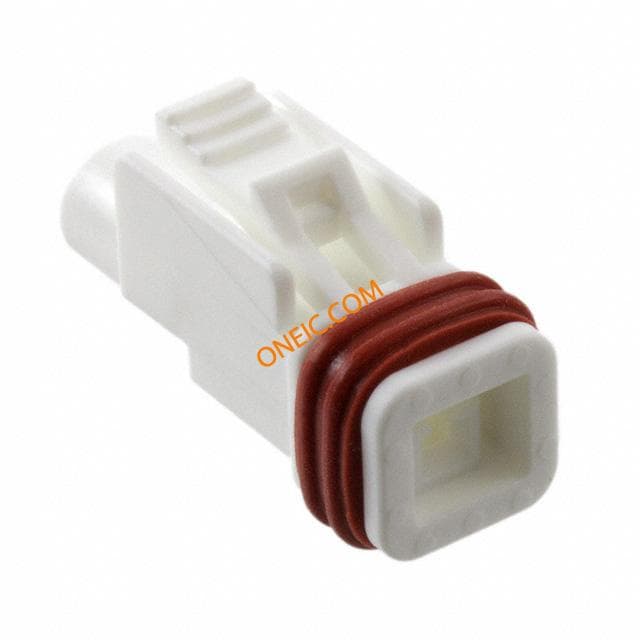

570-001-000-200
