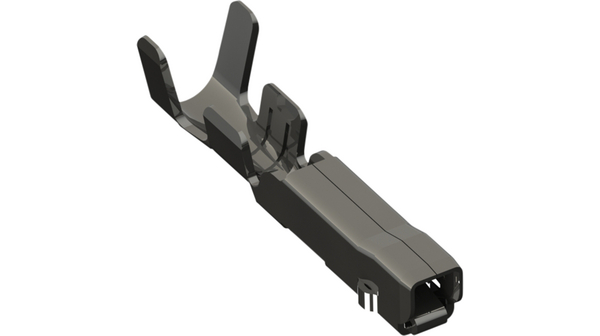

565-290-721

制造商	EDAC Inc.
描述	CONN SOCKET 22-28AWG WATERPROOF Headers & Wire Housings SOCKET (22-28) AWG WATERPROOF CONTACT CONTACT, PIN, 28-22AWG, CRIMP Contact; female; 22÷28AWG; 565; tinned; crimped, on cable; 3A; 10mΩ Crimp contact 3 A Female 28...22 AWG, 565-290-721, Edac
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

标准包装数量

540

合规参数

RoHS

RoHS Compliant

海关税号

85369010

电气参数

接触电阻

10mΩ

最大额定电流

3 A

机械参数

重量	0	包装方式	Tape & Reel (TR)
导线线规	22-28 AWG	安装类型	crimped, on cable
插针或插孔	Socket	连接器类型	female
接触镀层	Tin	触头材料	Phosphor Bronze
包装数量	100	连接器 - 电缆	contact
端接样式	Crimp	第一触头极性	Socket (Female)
接触件端接	Crimp	线规或范围 - AWG	:28AWG
触点材料 - 镀层	tinned

产品信息

SPG	100	系列	565
产品子类型	Contacts	适配器系列	565
单元数量	1	适用产品/相关产品	:565 Series Waterproof Male Housings

文档与媒体

PDF 文档

PDF 文档

PDF 文档

PDF 文档

相关型号

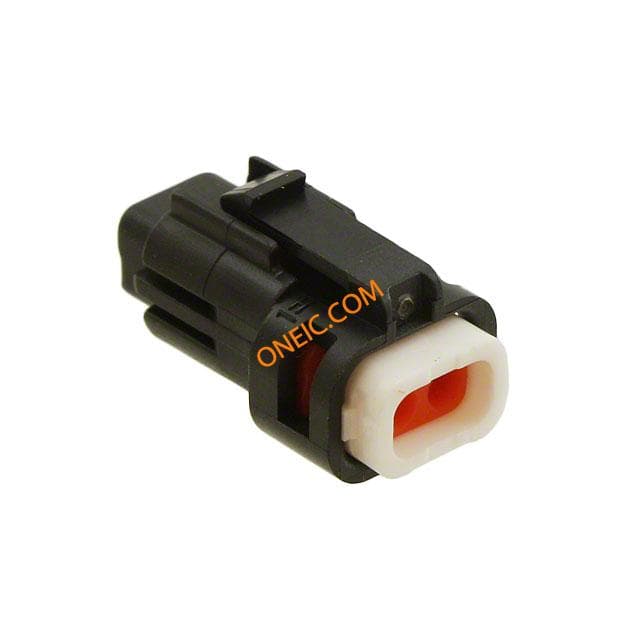

565-002-000-411

EDAC

Pin & Socket Connectors 2WAY 3A RCPT (20-22) WATERPROOF HSNG BLK CONN RECEPT 2WAY BLACK 22-28AWG CONNECTOR, HOUSING, RECEPTACLE, 2POS, 2.5MM

¥26.5200

详情

565-003-000-411

EDAC

Pin & Socket Connectors 3P 3A FEM HSNG BLK 1.3-1.7MM INSUL DIA CONN HOUSING 3POS WATERPROOF

¥18.3600

详情

565-005-000-411

EDAC

Pin & Socket Connectors 5P 3A FEM HSNG BLK 1.3-1.7MM INSUL DIA CONN HOUSING 5POS WATERPROOF

¥27.6080

详情

565-003-000-410

EDAC Inc

CONN RCPT 3 WAY BLACK 22-28AWG Headers & Wire Housings 3WAY 3A RCPT (22-28) WATERPROOF HSNG BLK Conn Housing RCP 3 POS 2.5mm Crimp ST Cable Mount CONNECTOR, HOUSING, RECEPTACLE, 3POS Connector: wire-wire; 565; plug; female; PIN:3; IP67; Locking: lock

¥6.7320

详情

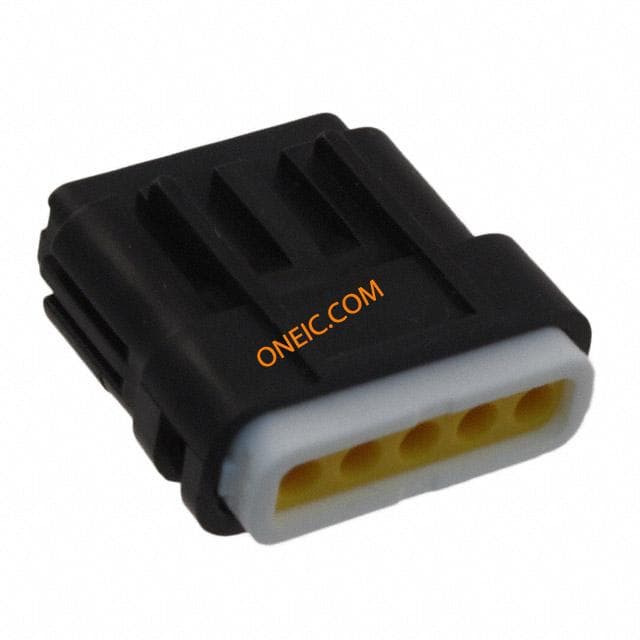

565-005-000-410

EDAC Inc

CONN RCPT 5 WAY BLACK 22-28AWG Pin & Socket Connectors 5WAY 3A RCPT (28-22) WATERPROOF HSNG BLK CONNECTOR, HOUSING, RECEPTACLE, 5POS, 2.5MM Connector: wire-wire; 565; plug; female; PIN:5; IP67; Locking: lock

¥10.2000

详情

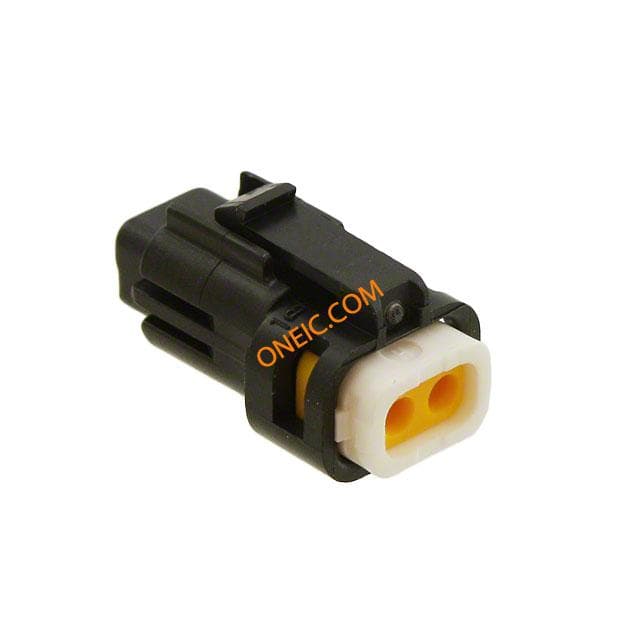

565-002-000-410
