565-005-000-411
| 制造商 | |
| 描述 | Pin & Socket Connectors 5P 3A FEM HSNG BLK 1.3-1.7MM INSUL DIA CONN HOUSING 5POS WATERPROOF |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 250 | ||
合规参数
| RoHS | No | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 2.5 mm |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | 线规或范围 - AWG | 28-22 |
产品信息
| 系列 | 565 | 产品特性 | Waterproof |
| 产品子类型 | Receptacle Housings | ||
环境参数
| 密封等级 | IP67 | ||
文档与媒体
相关型号
565-005-000-311
EDAC
Pin & Socket Connectors 5P 3A MALE HSNG BLK 1.3-1.7MM INSUL DIA CONN HOUSING 5POS WATERPROOF
¥29.8520
详情

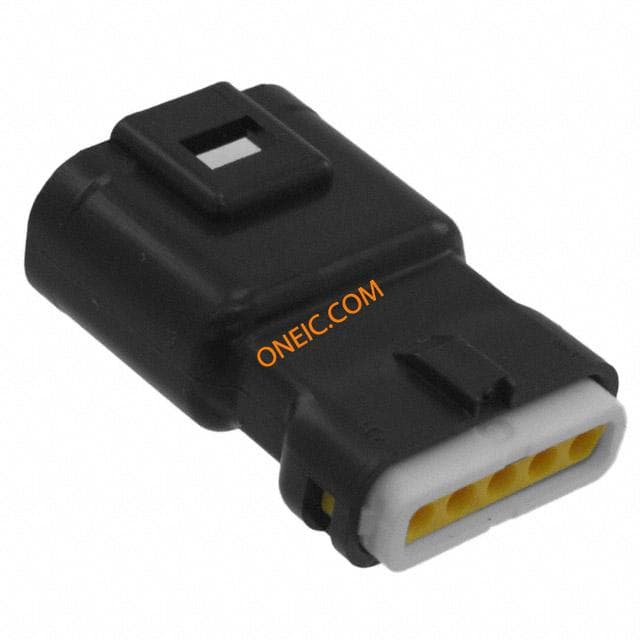

565-005-000-310
