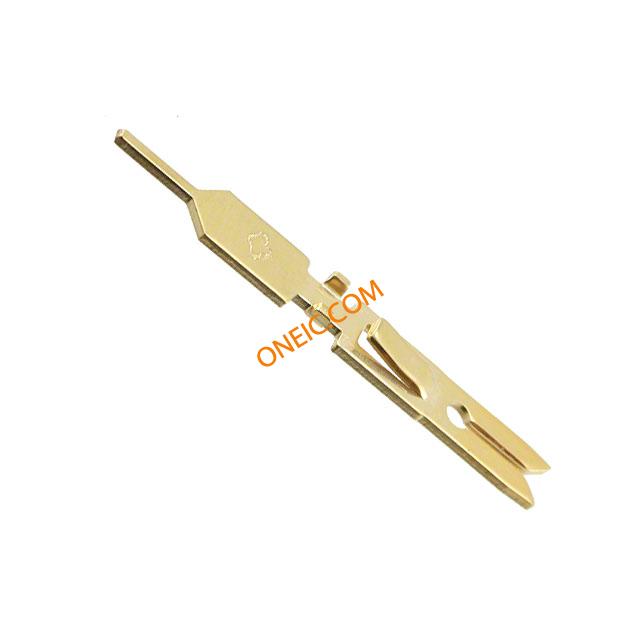

516-290-520
| 制造商 | |
| 描述 | CONTACT RACK & PANEL SOLDERTAIL Rack & Panel Connectors CONTACT P.C. TAIL Contact SKT Solder ST Thru-Hole Contact; hermaphrodite; 516; nickel plated, gold plated; THT; 8.5A |
| 分类 |
商业参数
| 产品类别 | Rack & Panel Connectors | 标准包装数量 | 1,000 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 接触电阻 | 10mΩ | 最大额定电流 | 8.5A |
机械参数
| 重量 | 0.31 g | 包装方式 | Bulk |
| 安装类型 | THT | 插针或插孔 | Non-Gendered |
| 连接器类型 | hermaphrodite | 接触镀层 | Gold |
| 安装样式 | on PCBs | 封装形式 | in bulk |
| 触头材料 | Phosphor Bronze Alloy | 包装数量 | 250 |
| 连接器 - 电缆 | contact | 接触件端接 | Solder |
| 触点材料 - 镀层 | nickel plated, gold plated | ||
产品信息
| SPG | 250 | 类型 | Signal |
| 系列 | 516 | 产品子类型 | Contacts |
| 适配器系列 | 516 | 单元数量 | 1 |
环境参数
| 工作温度 | -65...125°C | ||
