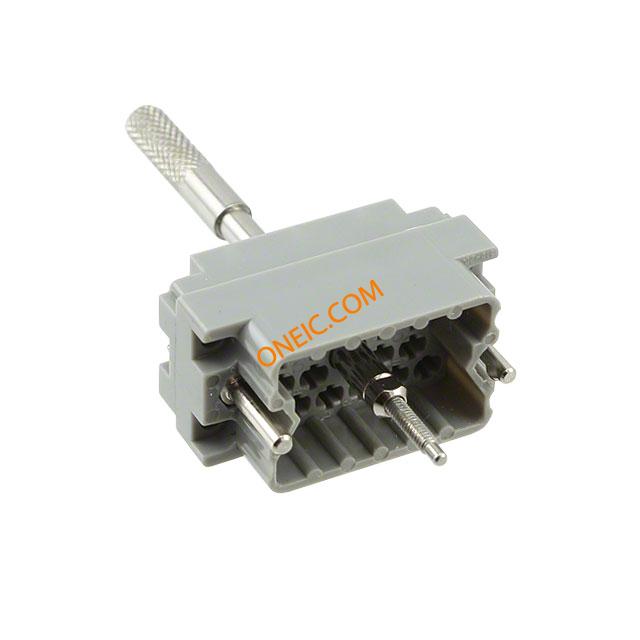

516-020-000-301
| 制造商 | |
| 描述 | CONN RACK & PANEL PLUG 20POS Standard EDAC516 cable plug, 20 way Rack & Panel Connectors 20P PLUG WITH SCREW Conn Rack and Panel PL 20 POS Crimp ST Panel Mount Plug; Connector: rectangular; 516; hermaphrodite; PIN:20; 2kV Plug housing Pitch3.3 mm / 3.81 mm Poles 20 For hermaphroditic contacts / Free hanging/cable mount 516, 516-020-000-301, Edac |
| 分类 |
商业参数
| 产品类别 | Rack & Panel Connectors | 标准包装数量 | 25 |
合规参数
| RoHS | Not Applicable | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 测试电压 | 2000 | 极数 | 20 |
| 交流输入电压 | 2kV | 接触电阻 | 10 mOhm |
| 最大额定电流 | 8.5A | 绝缘电阻 | 5000 MOhm |
| 连接器类型 - 电压输入 | with screw | ||
机械参数
| 颜色 | Gray | 间距 | 0.150" (3.81mm) |
| 重量 | 0.02 kg | 包装方式 | Bulk |
| 基体材料 | polycarbonate | 安装类型 | Varies by Contact |
| 连接器类型 | Housing for Non Gendered Contacts | 接触镀层 | Gold |
| 排数 | 4 | 连接器样式 | Rack and Panel |
| 连接器用途 | Plug | 触头材料 | Phosphor Bronze Alloy |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 25 |
| 连接器 - 电缆 | plug | 端接样式 | Screw |
| 触点数 | 20 | 位数 | 20 |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 连接器性别 | Male | 系列 | 516 |
| 产品特性 | Jackscrew, Guide Pin | 产品子类型 | Plug Connectors |
| 适配器系列 | 516 | 单元数量 | 1 |
| 连接方式 | Wire-Wire | ||
环境参数
| 工作温度 | -65...125°C | ||
文档与媒体
相关型号
516-290-590
EDAC Inc
CONTACT RACK & PANEL CRIMP Std EDAC516 loose crimp terminal,8.5A Rack & Panel Connectors CONTACT CRIMP Contact SKT Crimp ST Cable Mount Loose Piece CRIMP CONTACT Contact; hermaphrodite; 18÷28AWG; 516; nickel plated, gold plated EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A
516-290-520
EDAC Inc
CONTACT RACK & PANEL SOLDERTAIL Rack & Panel Connectors CONTACT P.C. TAIL Contact SKT Solder ST Thru-Hole Contact; hermaphrodite; 516; nickel plated, gold plated; THT; 8.5A
516-290-500
EDAC Inc
CONTACT RACK & PANEL SOLDER EYE Std EDAC516 solder tag terminal,8.5A Rack & Panel Connectors CONTACT SOLDER EYELET Contact SKT Solder Lug ST Cable Mount CONTACT, SOLDER, PHOSPHOR BRONZE CONTACT, EYELET PK100 Contact; hermaphrodite; 516; nickel plated, gold plated; in bulk EDAC 焊片, 镀金镀镍 磷铜触芯
516-290-541
EDAC Inc
CONTACT RACK & PANEL WIREWRAP Std EDAC516 wire wrap terminal,8.5A Rack & Panel Connectors CONTACT WIREWRAP Contact SKT Wire Wrap ST Cable Mount CONTACT, WIRE WRAP, PHOSPHOR BRONZE CONTACT, MINIWRAP, PK100 EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A
516-290-591
EDAC Inc
CONN CRIMP CONTACT Rack & Panel Connectors Crimp Contacts CONTACT, PIN, 28-18AWG, CRIMP Crimp contact 18...28 AWG, 516-290-591, Edac
516-290-540
EDAC Inc
CONN CONTACT SHORT WIRE WRAP Rack & Panel Connectors 516 SHORT CONTACT WIRE WRAP
516-290-542
EDAC Inc
CONN CONTACT LONG WIRE WRAP Rack & Panel Connectors METAL COVER SE Contact SKT Wire Wrap ST Cable Mount
