点击放大查看

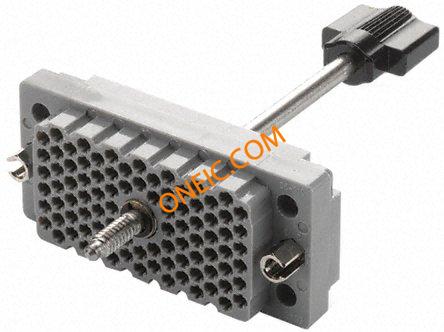

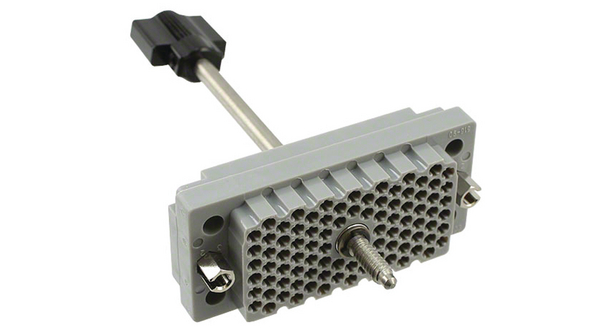

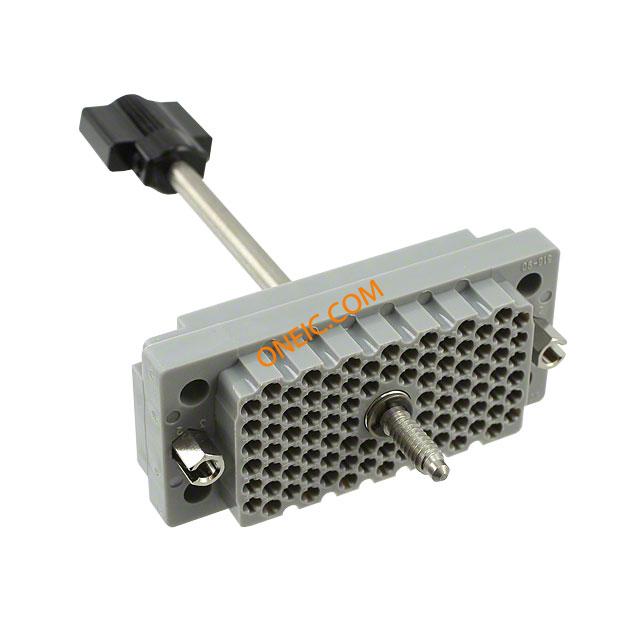

516-090-000-401
| 制造商 | |
| 描述 | CONN RACK & PANEL RCPT 90POS Std EDAC516 cable receptacle, 90 way Rack & Panel Connectors 90P RECEPTACLE WITH SCREW RECEPTACLE, WITH SCREW, 90 WAY Receptacle housing Pitch3.81 mm / 6.6 mm Poles 90 For hermaphroditic contacts / Free hanging/cable mount 516, 516-090-000-401, Edac |
| 分类 |
商业参数
| 其他名称 | 151-1038 | 产品类别 | Rack & Panel Connectors |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Not Applicable | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366930 | ||
电气参数
| 最大额定电流 | 8.5A | ||
机械参数

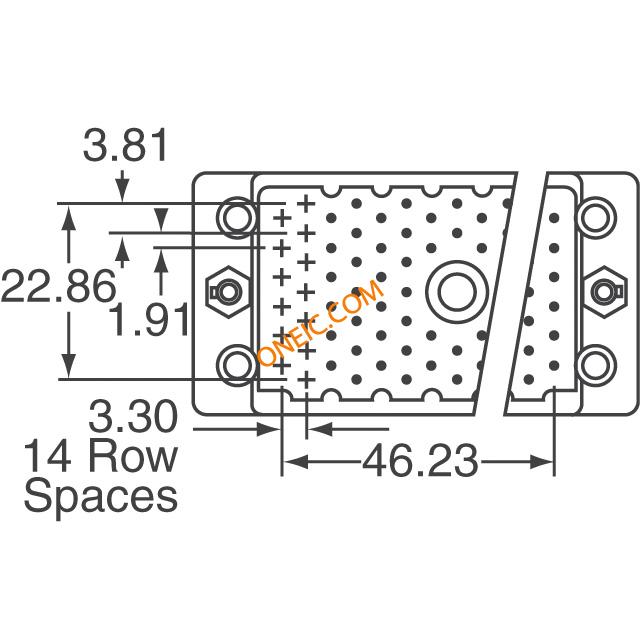

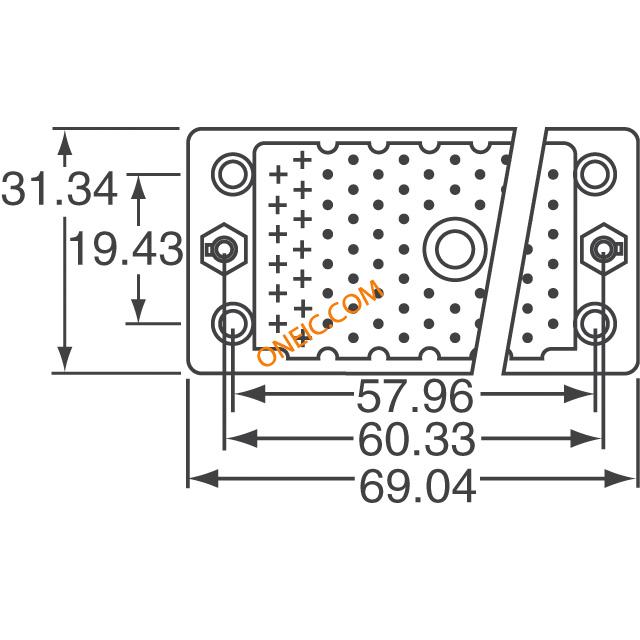

| 颜色 | Gray | 深度 | 106.55mm |
| 间距 | 0.150" (3.81mm) | 宽度 | 31.34mm |
| 长度 | 69.04mm | 重量 | 0.061 |
| 包装方式 | Bulk | 安装类型 | Varies by Contact |
| 连接器类型 | Housing for Non Gendered Contacts | 接触镀层 | Gold |
| 排数 | 13 | 连接器样式 | Rack and Panel |
| 连接器用途 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polycarbonate (PC) | 尺寸/外形 | 69.04 x 31.34 x 106.55mm |
| 端接样式 | Screw | 第一触头极性 | :Socket |
| 触点数 | 90 | 接触件端接 | :- |
| 位数 | 90 | 外壳尺寸-插件 | :- |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | EDAC516 | 产品特性 | Jackscrew, Guide Pin |
| 产品子类型 | Receptacle Connectors | ||
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
516-230-590
EDAC Inc
COVER METAL RACK & PANEL 90POS Standard EDAC516 90 way metal cover Rack & Panel Connectors 90P METAL COVER RACK AND PANEL CONNECTOR WITH GREEN OR DIE CAST COVER COLOR COVER, 90WAY Enclosure: for 516 series; 516; PIN:90; Mat: zinc alloy Metal cover, 516-230-590, Edac EDAC 516 系列 背板外罩, 使用于 516 系列机架及面板连接器
516-290-590
EDAC Inc
CONTACT RACK & PANEL CRIMP Std EDAC516 loose crimp terminal,8.5A Rack & Panel Connectors CONTACT CRIMP Contact SKT Crimp ST Cable Mount Loose Piece CRIMP CONTACT Contact; hermaphrodite; 18÷28AWG; 516; nickel plated, gold plated EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A
516-290-520
EDAC Inc
CONTACT RACK & PANEL SOLDERTAIL Rack & Panel Connectors CONTACT P.C. TAIL Contact SKT Solder ST Thru-Hole Contact; hermaphrodite; 516; nickel plated, gold plated; THT; 8.5A
516-290-500
EDAC Inc
CONTACT RACK & PANEL SOLDER EYE Std EDAC516 solder tag terminal,8.5A Rack & Panel Connectors CONTACT SOLDER EYELET Contact SKT Solder Lug ST Cable Mount CONTACT, SOLDER, PHOSPHOR BRONZE CONTACT, EYELET PK100 Contact; hermaphrodite; 516; nickel plated, gold plated; in bulk EDAC 焊片, 镀金镀镍 磷铜触芯
516-290-541
EDAC Inc
CONTACT RACK & PANEL WIREWRAP Std EDAC516 wire wrap terminal,8.5A Rack & Panel Connectors CONTACT WIREWRAP Contact SKT Wire Wrap ST Cable Mount CONTACT, WIRE WRAP, PHOSPHOR BRONZE CONTACT, MINIWRAP, PK100 EDAC 516 系列 母 直 矩形连接器, 镀金镀镍触点, 8.5A
516-290-591
EDAC Inc
CONN CRIMP CONTACT Rack & Panel Connectors Crimp Contacts CONTACT, PIN, 28-18AWG, CRIMP Crimp contact 18...28 AWG, 516-290-591, Edac
516-290-540
EDAC Inc
CONN CONTACT SHORT WIRE WRAP Rack & Panel Connectors 516 SHORT CONTACT WIRE WRAP
516-290-542
EDAC Inc
CONN CONTACT LONG WIRE WRAP Rack & Panel Connectors METAL COVER SE Contact SKT Wire Wrap ST Cable Mount

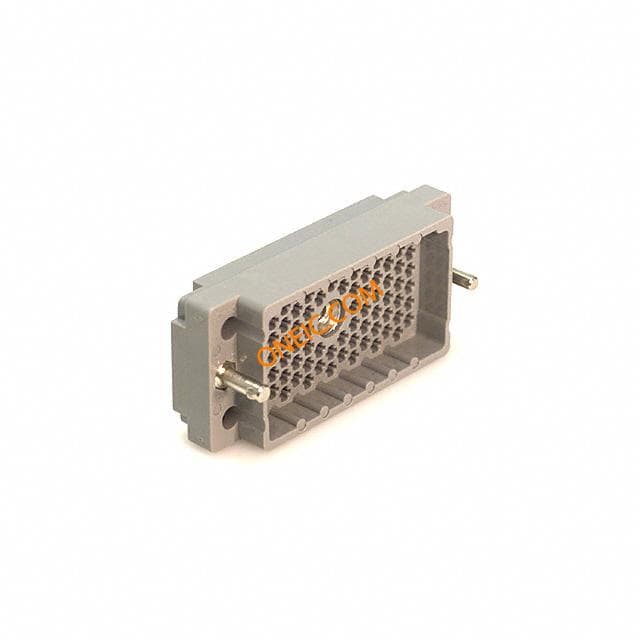

516-090-000-302
