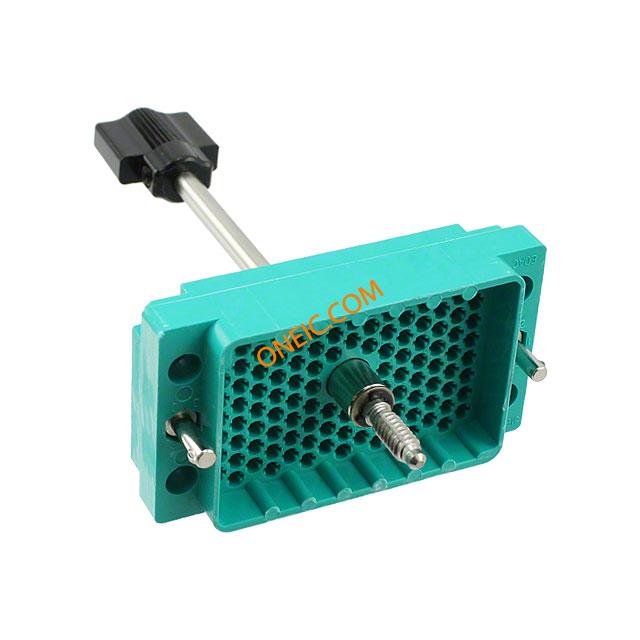

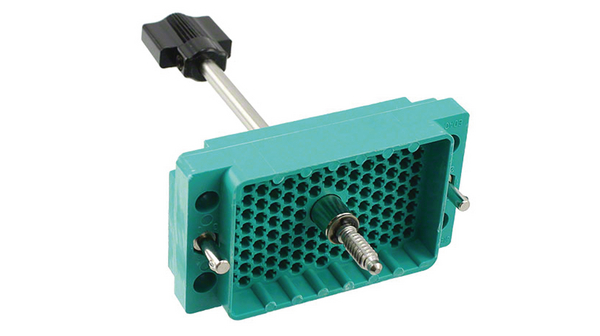

516-120-000-101
| 制造商 | |
| 描述 | CONN RACK & PANEL PLUG 120POS Rack & Panel Connectors 120P PLUG WITH SCREW Conn Rack and Panel PL 120 POS Crimp ST Panel Mount Plug housing Pitch3.81 mm / 6.6 mm Poles 120 For hermaphroditic contacts / Free hanging/cable mount 516, 516-120-000-101, Edac |
| 分类 |
商业参数
| 其他名称 | 151-1040 | 产品类别 | Rack & Panel Connectors |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 测试电压 | 2000 | 极数 | 120 |
| 接触电阻 | 10 mOhm | 最大额定电流 | 8.5 A |
| 绝缘电阻 | 5000 MOhm | ||
机械参数
| 颜色 | Green | 间距 | 0.150" (3.81mm) |
| 包装方式 | Bulk | 安装类型 | Varies by Contact |
| 连接器类型 | Housing for Non Gendered Contacts | 接触镀层 | Gold |
| 排数 | 17 | 连接器样式 | Rack and Panel |
| 连接器用途 | Plug | 触头材料 | Phosphor Bronze Alloy |
| 壳体材料 | Diallyl Phthalate (DAP) | 端接样式 | Screw |
| 触点数 | 120 | 位数 | 120 |
产品信息
| 备注 | Contacts Not Provided | 系列 | 516 |
| 产品特性 | Jackscrew, Guide Pin | 产品子类型 | Plug Connectors |
| 连接方式 | Wire-Wire | ||
环境参数
| 工作温度 | -65...+105 °C | ||
