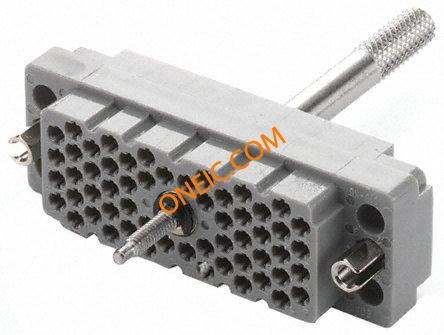

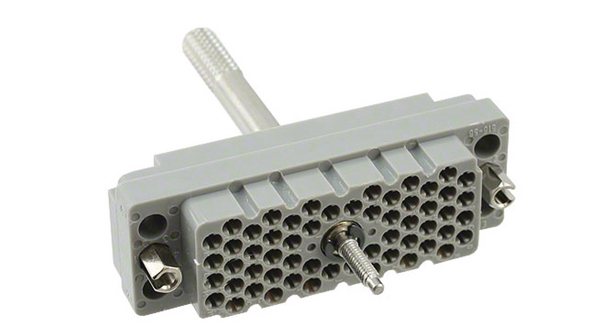

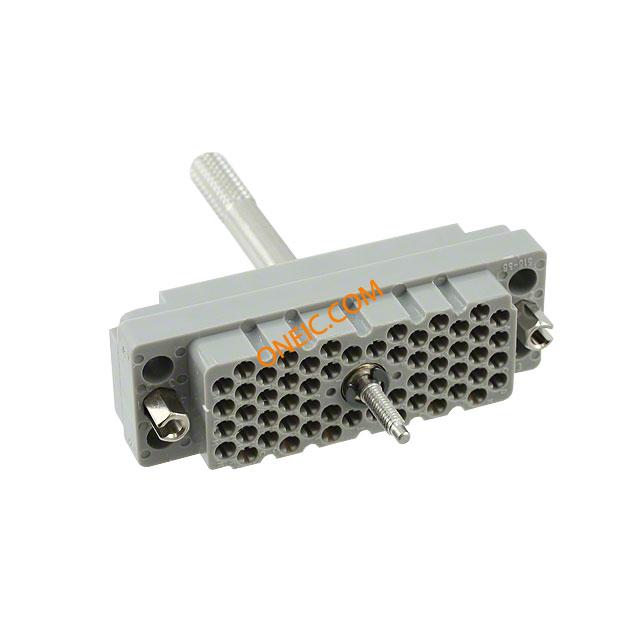

516-056-000-401
| 制造商 | |
| 描述 | CONN RACK & PANEL RCPT 56POS Std EDAC516 cable receptacle, 56 way Rack & Panel Connectors 56P RECEPTACLE WITH SCREW Conn Rack and Panel RCP 56 POS Crimp ST Panel Mount RECEPTACLE, WITH SCREW, 56 WAY RACK & PANEL CONNECTOR, RECEPTACLE, 56POS Socket; Connector: rectangular; 516; hermaphrodite; PIN:56; 2kV Receptacle housing Pitch3.81 mm / 6.6 mm Poles 56 For hermaphroditic contacts / Free hanging/cable mount 516, 516-056-000-401, Edac |
| 分类 |
商业参数
| 产品类别 | Rack & Panel Connectors | 标准包装数量 | 25 |
合规参数
| RoHS | Not Applicable | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366930 | ||
电气参数
| 交流输入电压 | 2kV | 接触电阻 | :6mohm |
| 最大额定电流 | 8.5A | 连接器类型 - 电压输入 | with screw |
机械参数
| 颜色 | Gray | 深度 | 80.95mm |
| 间距 | 0.150" (3.81mm) | 宽度 | 22.25 |
| 长度 | 65.84mm | 重量 | 0.036 |
| 包装方式 | Bulk | 基体材料 | polycarbonate |
| 安装类型 | Varies by Contact | 连接器类型 | Housing for Non Gendered Contacts |
| 接触镀层 | Gold | 排数 | 9 |
| 连接器样式 | Rack and Panel | 连接器用途 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 25 | 尺寸/外形 | 65.84 x 22.25 x 80.95mm |
| 连接器 - 电缆 | socket | 端接样式 | Screw |
| 第一触头极性 | :Socket | 触点数 | 56 |
| 接触件端接 | :- | 位数 | 56 |
| 外壳尺寸-插件 | :- | 第一连接器安装类型 | :Cable |
产品信息
| SPG | 25 | 备注 | Contacts Not Provided |
| 连接器性别 | Female | 系列 | EDAC516 |
| 产品特性 | Jackscrew, Guide Pin | 产品子类型 | Receptacle Connectors |
| 适配器系列 | 516 | 单元数量 | 1 |
| 适用产品/相关产品 | :- | ||
环境参数
| 工作温度 | +105°C | ||
