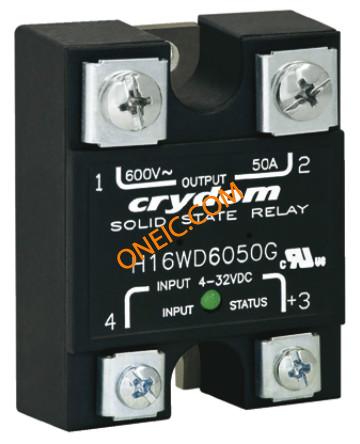

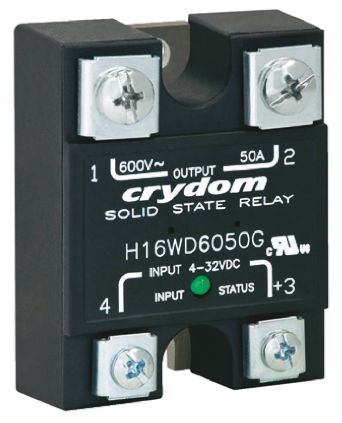

H16WD6090G

制造商	Custom Sensors & Technologies (CST)
描述	Solid State Relays - Industrial Mount IP00 SSR 660VAC/90A DC In w/LED, ZC Relay SSR 11mA 32V DC-IN 90A 660V AC-OUT 4-Pin RELAY SSR 90A 660VAC ZERO DC IN Solid state relay 48-660Vac 90A with LED SSR, 600VAC, 90A, DC IN, W/ LED, ZC RelaySolidStateIP00SSR,660VAC/90A,DCInw/LED,ZC Crydom 90 A 面板安装安装固态继电器, 直流切换, 660 V 交流
分类	工业电源组件和继电器固态继电器固态继电器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS	RoHS Compliant By Exemption	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85364900

电气参数

输出端	SCR	电路	SPST-NO (1 Form A)
指示器	Green	输入类型	DC
电容	8pF	输出类型	AC
负载电流	90A	开启时间	1/2 cycle
开关模式	:Zero Crossing	负载电压	48 ~ 660 V
额定电压	32	输出电流	90(RMS)
供电电压	4 VDC to 32 VDC	介电强度	4000VRMS
隔离电压	4000(RMS)	电池组电压	48 V ac
输入偏置电流	11mA	最大额定电流	90 A
最小输入电压	4 ~ 32VDC	输出电压（最大）	660(RMS)
电源电压（最大）	:32VDC	最小供电电压	48 VAC to 660 VAC
关态电流（最大）	1 mA	静态电流（最大）	150 mA
输入偏置电流（最大）	11	峰值脉冲电流（8/20µs）	1200
额定交流电压（相间）	:660VAC

机械参数

深度	19.8mm	宽度	58.4
高度	58.4mm	长度	45.7mm
重量	3.051198 oz	包装方式	Bulk
安装类型	Screw	端子类型	Screw
安装样式	Panel	封装形式	Hockey Puck
总长度	45.7	端接样式	Screw
位数	4	外壳尺寸-插件	23
典型触点布局	:(Not Applicable)

产品信息

系列	H16WD	继电器类型	Relay
开关类型	DC Switching	电路类型	1 Form A
产品子类型	Industrial Mount	印刷电路板数量	4

环境参数

机械寿命

New At Mouser

工作温度

+ 80 C

文档与媒体

PDF 文档

H16WD Series

PDF 文档

h_16w.pdf
