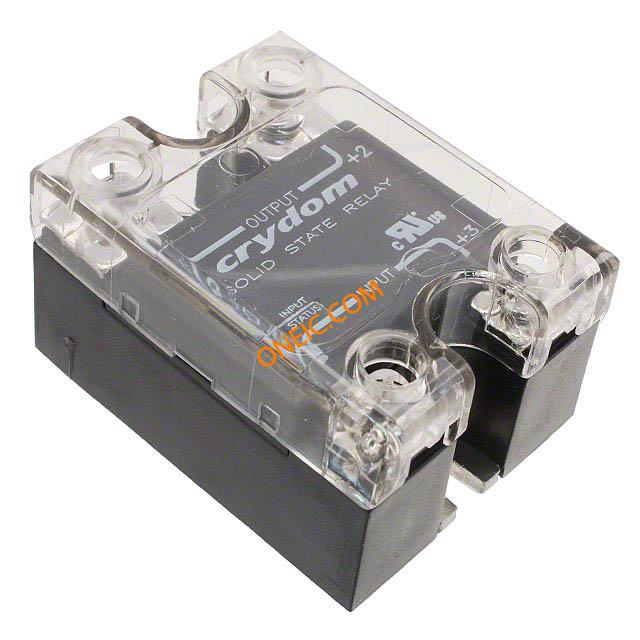

DC100D100C
| 制造商 | Custom Sensors & Technologies (CST) |
| 描述 | ソリッドステートリレー：工業用マウント SSR DC OUTPUT 72VDC/100A 4-32VDC RELAY SSR 100VDC/100A 4-32VDC SSR, High Current,100A,4-32Vdc,IP20 Solid State Relays - Industrial Mount SSR DC OUTPUT 72VDC/100A 4-32VDC SSR, 100A, 100VDC RELAY;PMIP20SSR100VDC/100A,4-32VDC Crydom 100 A 表面贴装安装 单极常开 固态继电器, MOSFET输出, 瞬时切换, 72 V 直流 |
| 分类 |
商业参数
| 其他名称 | CC1868 | 标准包装数量 | 20 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | UL,CE | 海关税号 | 85364900 |
电气参数
| 输出端 | MOSFET | 电路 | SPST-NO (1 Form A) |
| 输出类型 | DC | 负载电流 | 100A |
| 开启时间 | 0.075 ms | 开关模式 | :DC Switch |
| 负载电压 | 1 ~ 72 V | 额定电压 | 100VDC |
| 浪涌电流 | :272A | 供电电压 | 4 VDC to 32 VDC |
| 隔离电压 | :2500Vrms | 电池组电压 | 1 V dc |
| 最大额定电流 | 100 A | 最小输入电压 | 4 ~ 32VDC |
| 电源电压（最大） | :32VDC | 最小供电电压 | 4 V dc |
| 关态电流（最大） | 0.15 mA | 静态电流（最大） | 2.5 mA |
| 导通电阻（最大） | 5.6 mOhm | 额定交流电压（相间） | :72VDC |
| 驱动电压（最大Rds On，最小Rds On） | 4-32VDC | ||
机械参数
| 深度 | 44.5mm | 高度 | 32.9mm |
| 长度 | 58.2mm | 重量 | 0.095 |
| 包装方式 | Bulk | 端接方式 | Screw |
| 触点形式 | SPST-NO | 安装类型 | Chassis Mount or Panel Mount |
| 端子类型 | Screw | 安装样式 | Panel |
| 引脚数 | 4 | 封装形式 | Hockey Puck |
| 端接样式 | Screw Terminal | 典型触点布局 | SPST-NO |
产品信息
| 系列 | PowerPlus | 产品特性 | IP20Cover |
| 功能 | DCSwitching | 继电器类型 | Relay |
| CAD图纸 | 3D CAD Model | 开关类型 | Instantaneous Switching |
| 制造商全称 | PowerPlusDCSeries | 产品子类型 | Industrial Mount |
| 控制/显示类型 | :DC | ||
