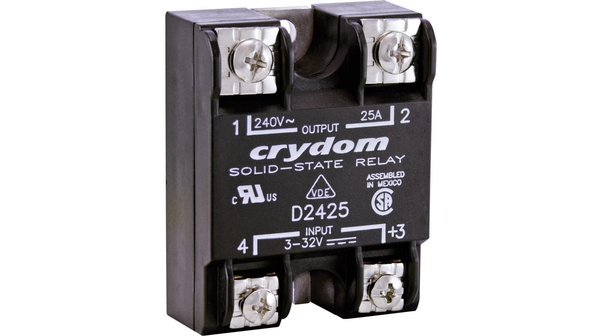

CWD2450

点击放大查看

CWD2450

制造商
Custom Sensors & Technologies (CST)
描述Solid State Relays - Industrial Mount 0.15-50A DC CONTROL Relay SSR 10mA 32V DC-IN 50A 280V AC-OUT 4-Pin RELAY SSR 280VAC 50A PANEL MOUNT 50A rms Screw Mount, Zero Crossing SCR Solid State Relay, 280V rms SSR, 50A, 240VAC Relay;SSR;Zero-Switching;Cur-Rtg50A;Ctrl-V3-32DC;Vol-Rtg24-280AC;Pnl-Mnt Solid State Relay Control Voltage: 3-32 VDC Load Current: 50 Amps Load Voltage: 24-280 VAC Output Configuration: 1A SPST-NO Mounting: Panel Mount Solid state relay single phase 3...32 VDC, CWD2450, Crydom Crydom 50 A 有效值 面板安装安装 固态继电器, SCR输出, 零交叉切换, 280V有效值
分类
工业电源组件和继电器固态继电器固态继电器

商业参数

交货时间56 Days其他名称CC1543
子类别Solid State Relay产品类别Solid State Relays - Industrial Mount
标准包装数量20工厂包装数量1

合规参数

RoHSRoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant标准UL,CSA,VDE,CE,EMC
海关税号85364900认证机构:CE, CSA, VDE

电气参数

输出端SCR电路SPST-NO (1 Form A)
压摆率:500V/µs输入类型DC
输出类型AC负载电流50A
开关模式:Zero Crossing负载电压24 ~ 280 V
额定电压280VAC浪涌电流:850A
输出电流:10mA供电电压3 VDC to 32 VDC
漏电流:1mA击穿电压:600V
隔离电压:4kV最大额定电流50 A
绝缘电阻:1000Mohm最小输入电压3 ~ 32VDC
输出电压（最大）280(RMS)电源电压（最大）:32VDC
最小供电电压24 VAC to 280 VAC额定电流 - 滤波器:0.15A
静态电流（最大）0.15 A输入偏置电流（最大）10 mA
平均整流电流 Io:50A冲击放电电流 (8/20µs):3000s
额定交流电压（相间）:280Vrms驱动电压（最大Rds On，最小Rds On）32VDC
额定交流电压（相对地/中性线）:24V

机械参数

深度58.4mm宽度:45.7mm
高度33mm长度45.7mm
重量0.0865包装方式Bulk
端接方式Screw安装类型Screw
端子类型:Screw Type安装样式Panel
引脚数4封装形式Hockey Puck
触头材料SilverAlloy总长度45.7
尺寸/外形2.30in.Lx1.80in.Wx1.30in.H端接样式Screw
位数4外壳尺寸-插件33
典型触点布局:SPST-NO

产品信息

系列CW 24功能Zero-Switching
继电器类型RelayCAD图纸3D CAD Model
开关类型Zero Crossing电路类型1 Form A
制造商全称CW24Series产品子类型Industrial Mount
控制/显示类型:DC印刷电路板数量4

环境参数

工作温度:80°C

文档与媒体

Declaration of Conformity
CW24 Series
Control Relays & I/O Modules Brochure
c_w24.pdf
