点击放大查看

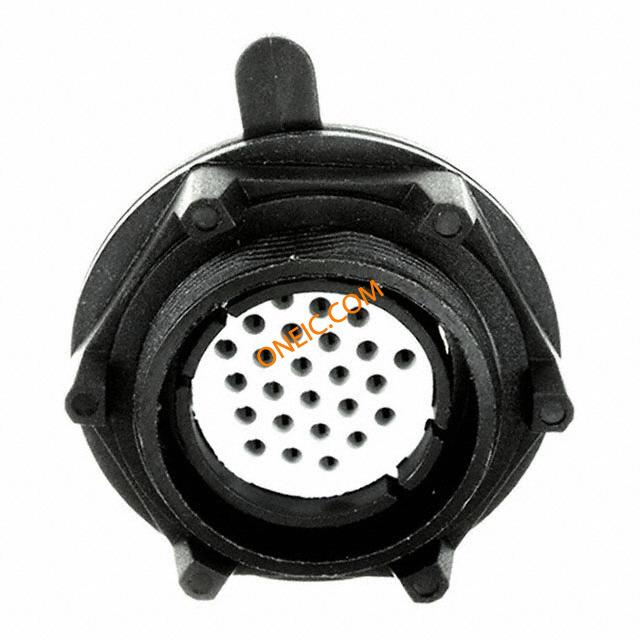

PX0822/P
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 25 POLE CHAS MT PLG CONN HSNG RCPT JAM NUT 25POS PIN 25 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Panel Mount 25 Terminal 1 Port PLUG, SEALED PANEL, 25WAY Connector;Pin;25;Crimp/Solder;IP68;ULListed,CSACertified,VDEApproved Bulgin Buccaneer 系列 25路 面板安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 50 V ac/dc | 工作电压 | :50V |
| 接触电阻 | :5mohm | 最大额定电流 | 1A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :32mm | 重量 | 0.01 |
| 包装方式 | Bulk | 导线线规 | 24-26 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Crimp, Solder | 触头类型 | Crimp and Solder Cup |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 电缆直径 | 7-9mm | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Gold over Nickel | 紧固类型 | Threaded |
| 安装样式 | Panel | 插入角度 | :- |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | GlassFilledPolyamide | 主要材料 | Sealed |
| 端接样式 | Crimp / Solder | 第一触头极性 | Male |
| 连接器颜色 | :Black | 外径 | :37.1mm |
| 配接方向 | Threaded | 触点数 | 25 |
| 介电材料 | Polyamide | 位数 | 25 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :9mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | PanelPlug |
| 连接器性别 | :Plug | 系列 | Buccaneer |
| 产品子类型 | Connectors | ||
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
