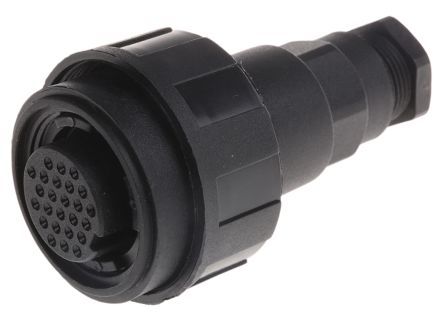

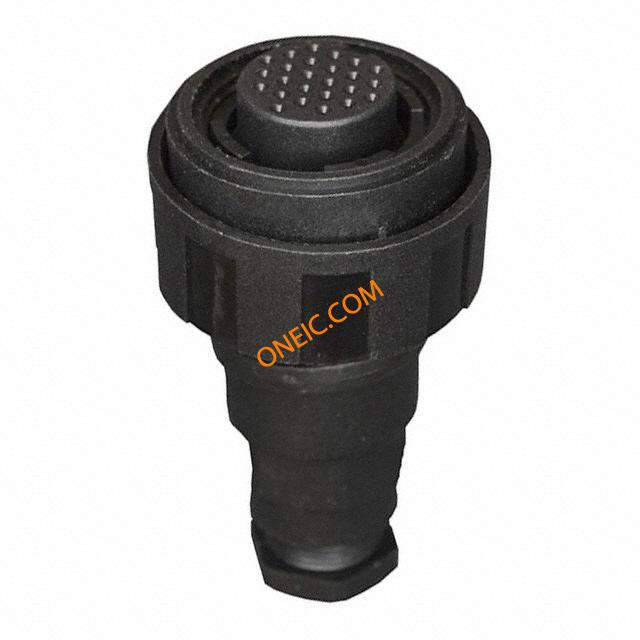

PX0820/S
| 制造商 | Bulgin |
| 描述 | Standard Circular Connector 25 POLE FLEX SKT CONN HSNG PLUG 25POS CABLE SKT 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port SOCKET, SEALED FREE, 25WAY CONN HSNG PLUG 25POS INLINE SKT Connector,StandardBuccaneer;Socket;25;69.0mm;38.1mm;3.5to9mm;1A Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 母触点 |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | ULRecognized/CSA/VDE |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 50 V ac/dc | 工作电压 | :50V |
| 接触电阻 | :5mohm | 最大额定电流 | 1A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 长度 | :65mm | 重量 | 0.026 |
| 包装方式 | Bulk | 导线线规 | 24-26 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp, Solder | 触头类型 | Crimp and Solder Cup |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 7-9mm | 连接器类型 | Plug for Female Contacts |
| 接触镀层 | Gold over Nickel | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 插入角度 | :- |
| 本体材料 | :Glass Filled Nylon (Polyamide) | 触头材料 | Copper Alloy |
| 壳体材料 | GlassFilledPolyamide | 主要材料 | Sealed |
| 端接样式 | Crimp / Solder | 第一触头极性 | Female |
| 连接器颜色 | :Black | 外径 | :38.1mm |
| 配接方向 | Threaded | 触点数 | 25 |
| 介电材料 | Polyamide | 位数 | 25 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 第一连接器安装类型 | :Cable | 外径-未扩张 | :9mm |
产品信息
| 备注 | Contacts Not Provided | 类型 | CableSocket |
| 连接器性别 | :Receptacle | 系列 | Buccaneer |
| 产品特性 | ScrewLocking | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +70°C | ||
文档与媒体
相关型号
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK

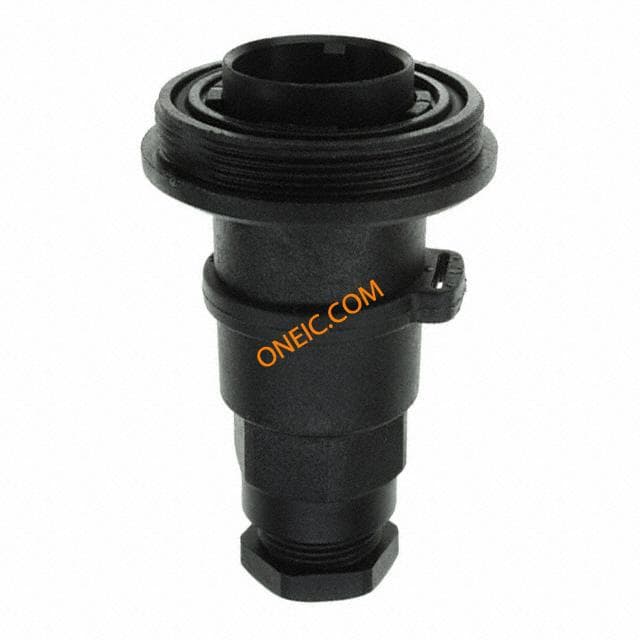

PX0821/P
Bulgin
Standard Circular Connector 25 POLE IN-LINE PLG CRIMP/SOLDER CONN HSNG RCPT 25POS INLINE PIN 25 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Cable Mount 25 Terminal 1 Port PLUG, SEALED, INLINE, 25WAY CableConnector,In-Line;25;Plug;7to9mmDia;In-LineFlex;1A;50V Bulgin Buccaneer 系列 25路 电缆安装 直向 连接器 , 公触点

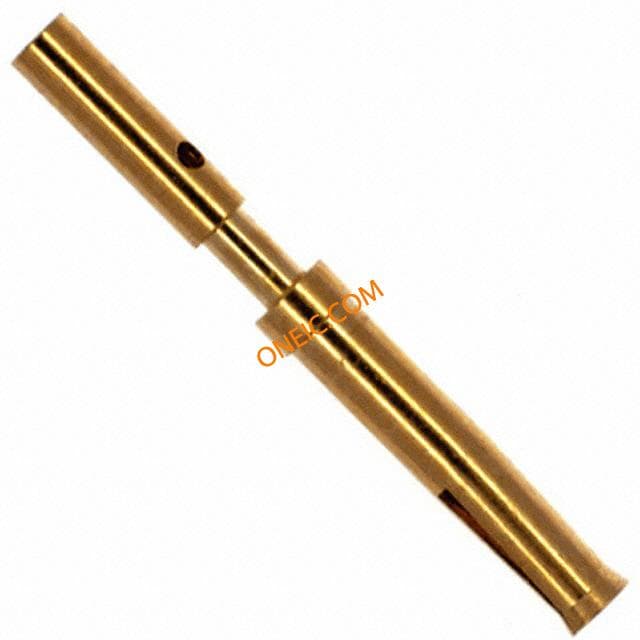

SA3179
Bulgin
Standard Circular Contacts CRIMP SKT 12P 24AWG 1 = 1 PKT of 10/pcs CONT SKT 1A CRMP 24-28AWG 1=10PC 400 Series 1A Female Circular Connector Contact, Crimp,Wire size 28 to 24AWG CRIMP SOCKET, PK10 Contacts,Standard,Buccaneer,25-Way,CrimpSockets Crimp contact, female, for 10 and 12-pole, SA3179, Bulgin Bulgin 400 系列 1A 母 压接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格
PX0822/P
Bulgin
Standard Circular Connector 25 POLE CHAS MT PLG CONN HSNG RCPT JAM NUT 25POS PIN 25 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 25 POS Crimp/Solder ST Panel Mount 25 Terminal 1 Port PLUG, SEALED PANEL, 25WAY Connector;Pin;25;Crimp/Solder;IP68;ULListed,CSACertified,VDEApproved Bulgin Buccaneer 系列 25路 面板安装 直向 连接器 , 公触点
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
PX0707/P/25
Bulgin
Standard Circular Connector 25 POLE PCB PLUG CONN RCPT 25POS PNL MNT PCB PIN Conn Buccaneer PIN 25 POS Solder ST Thru-Hole 25 Terminal 1 Port Connector,CircularIP68;25;PCB;1A;50VAC/VDC;lt5Milliohms;-20to70d
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖

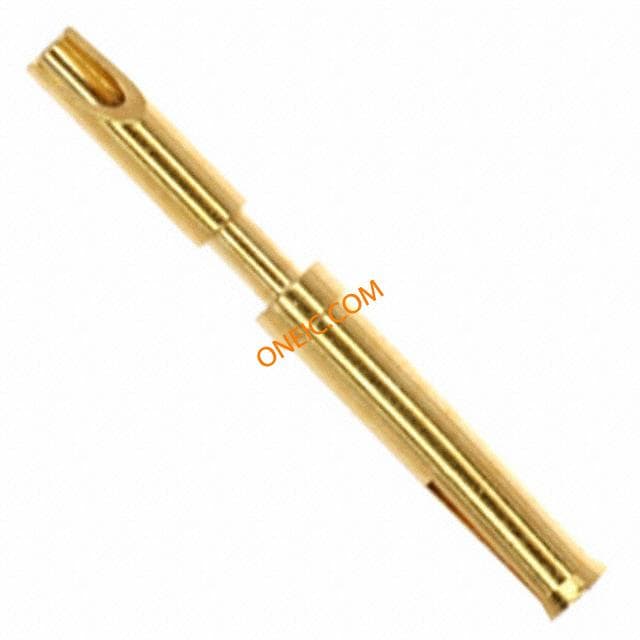

SA3179/1
Bulgin
Standard Circular Contacts 157-SA3179/1 24AWG 1 = 1 PKT of 10/pcs CONT SKT 1A SLD 24-28AWG 1=10PC 400 Series 1A Female Circular Connector Contact, Solder,Wire size 28 to 24AWG Contact SKT Solder ST Cable Mount CONTACT, SOCKET, 26-24 AWG, SOLDER Contacts,Standard,Buccaneer,25-Way,SolderSockets Contact; female; 24÷28AWG; Buccaneer 400; gold plated; soldering Soldering contact, female, for 10 and 12-pole, SA3179/1, Bulgin Bulgin 400 系列 1A 母 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列连接器, 28 → 24 AWG 线规格

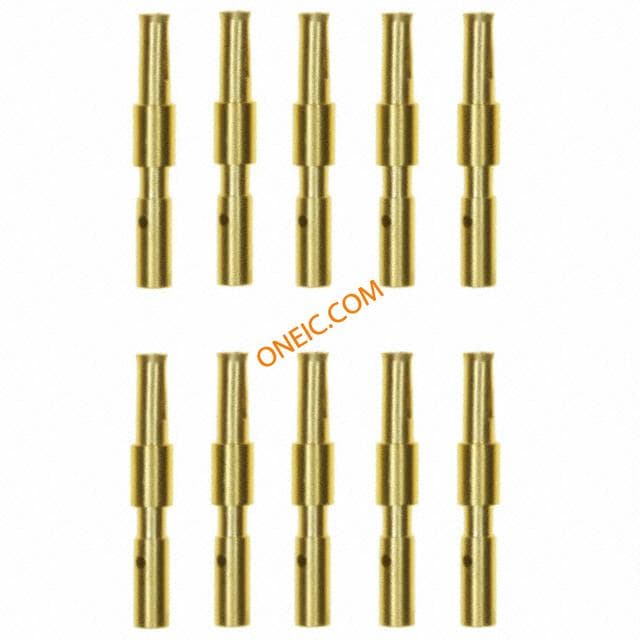

SA3347
