点击放大查看

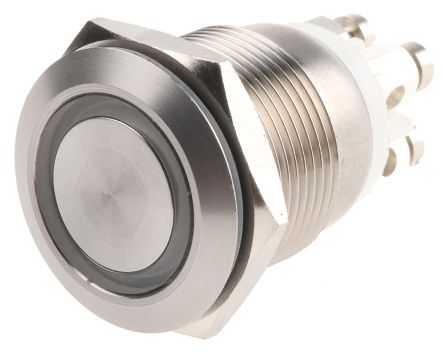

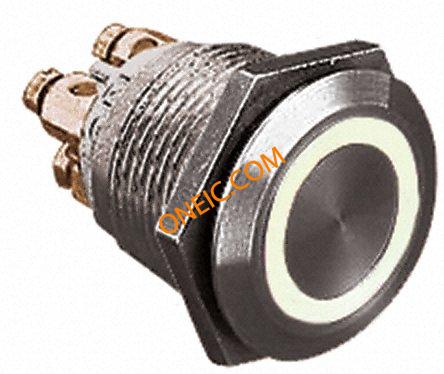

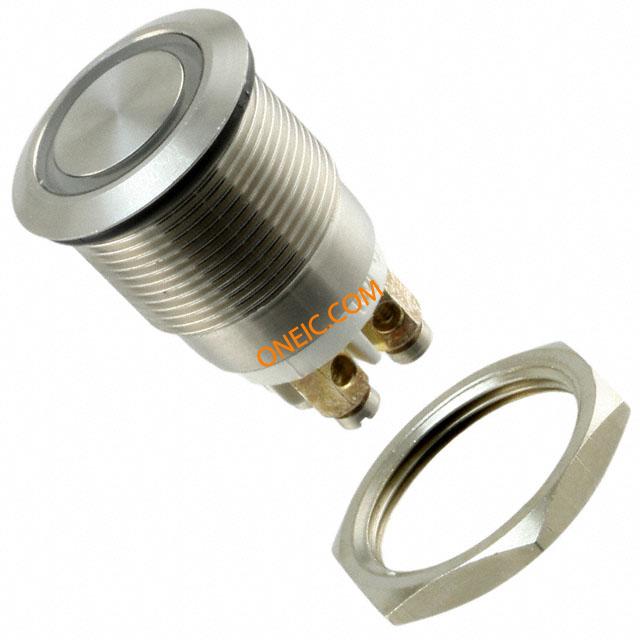

MPI002/TERM/WH
| 制造商 | |
| 描述 | SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring white,IP66 Pushbutton Switches WHITE DOT SCREW TERM Switch Push Button SPST Flush Round Button 0.05A 24VDC Screw Panel Mount SWITCH, VR, ILLUM, WHITE Switch,RingIlluminated;White;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Switch: vandal resistant; 1-position; SPST-NO; 0.5A/24VDC; IP66 Bulgin SP 按钮开关, 0.05 A@ 24 V 直流 |
| 分类 |
商业参数
| 产品类别 | Pushbutton Switches | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85365080 |
电气参数
| 电路 | SPST-NO | 电流 | :20mA |
| 背光 | white | 操作方式 | PushtoMake |
| 所用LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. | 额定电压 | 24V |
| 极数 | 1 | 开关功能 | Off-Mom |
| 开关电压 | OFF-(ON) | 接触电阻 | :100mohm |
| 介电强度 | >2kV(ContacttoPanel),1500V(ContacttoContact) | LED正向电压 | :3.6V |
| 最大额定电流 | 50mA (DC) | 最大触点电流 | :50mA |
| 绝缘电阻 | :1000Mohm | 开关功能/额定值 | :Off-(On) |
| 触点额定电流 | 0.05 A @ 24 V dc | 连接器类型 - 电压输入 | :Screw |
| 供电电压 (Vcc/Vdd) | :24V | 标称照明电压 | 3.6 VDC |
| 直流正向电流（If）（最大） | :20mA | 直流触点额定值（阻性负载） | 0.5 A / 24 VDC |
机械参数
| 深度 | :30.3mm | 形状 | convex |
| 长度 | :31mm | 重量 | 0.23 |
| 直径 | :22mm | 包装方式 | Bulk |
| 壳体颜色 | silver | 引脚样式 | screw terminals |
| 本体尺寸 | Ø25.7 x 31.5mm | 端接方式 | Screws |
| 致动器类型 | Round, Button, Flush | 基体材料 | stainless steel |
| 安装类型 | Panel Mount, Front | 端子类型 | :Screw |
| 安装样式 | Panel | 操作力 | :12N |
| 端接样式 | Screw Terminal | 连接器颜色 | :White |
| 照明颜色 | :White | 面板开孔形状 | :19.2mm |
| 位数 | :35000 | 按钮/帽颜色 | Silver |
| 安装孔直径 | 19.2mm | 典型触点布局 | SP |
| 面板开孔尺寸（外形） | Circular - 19.20mm Dia | 照明类型及颜色 | LED, White |
| 触点材料 - 镀层 | gold plated | ||
产品信息
| 类型 | Vandal Resistant, Illuminated | 系列 | :MPI002 |
| 产品特性 | Stainless Steel | 开关类型 | vandal resistant |
| 照明类型 | LED | 电气寿命 | 35,000 Cycles |
| 单元数量 | 1 | 触点配置 | SPST-NO |
环境参数
| 机械寿命 | 750,000 Cycles | NEMA 机架尺寸 | :IP66 |
| 开关次数 | :750000 | 防护等级 | IP66 - Dust Tight, Water Resistant |
| 工作温度 | -30°C ~ 70°C | 光通量 @ 电流/温度 | :900mcd |
