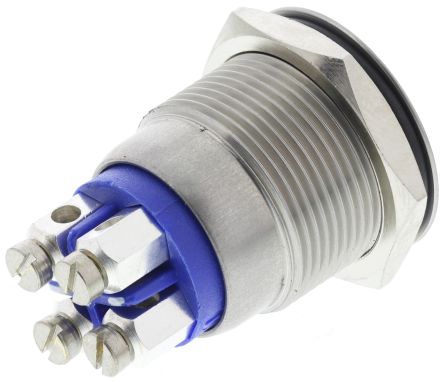

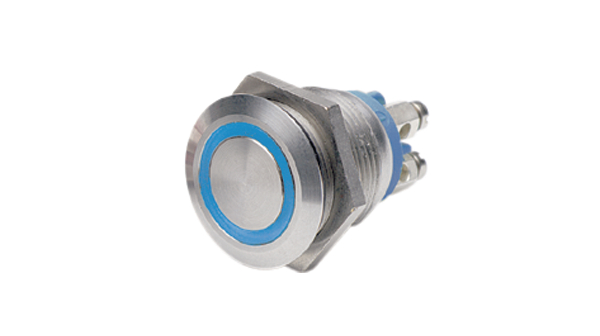

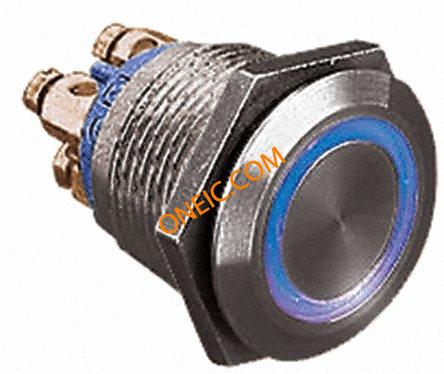

MPI002/TERM/BL
| 制造商 | |
| 描述 | Pushbutton Switches BLU RING SCREW TERM SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring blue,IP66 Switch Push Button SPST Flush Round Button 0.05A 24VDC Screw Panel Mount SWITCH, VANDAL RESISTANT, BLUE, RING Switch,RingIlluminated;Blue;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Switch: vandal resistant; 1-position; SPST-NO; 0.5A/24VDC; IP66 Push-button Switch, vandal proof 19.2 mm 24 VDC 50 mA 1 make contact (NO), MPI002/TERM/BL, Bulgin Bulgin SP 按钮开关, 0.05 A@ 24 V 直流 |
| 分类 |
商业参数
| 产品类别 | Pushbutton Switches | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85365011 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电路 | SPST-NO | 背光 | blue |
| 操作方式 | PushtoMake | 所用LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. |
| 额定电压 | 24V | 极数 | 1 |
| 开关功能 | Off-Mom | 开关电压 | OFF-(ON) |
| 接触电阻 | :100mohm | 介电强度 | >2kV(ContacttoPanel),1500V(ContacttoContact) |
| LED正向电压 | :3.4V | 最大额定电流 | 50mA (DC) |
| 最大触点电流 | :50mA | 绝缘电阻 | :1000Mohm |
| 开关功能/额定值 | :Off-(On) | 触点额定电流 | 0.05 A @ 24 V dc |
| 连接器类型 - 电压输入 | :Screw | 供电电压 (Vcc/Vdd) | :24V |
| 标称照明电压 | 3.5 VDC | 直流触点额定值（阻性负载） | 0.5 A / 24 VDC |
机械参数
| 深度 | :11mm | 形状 | convex |
| 长度 | :31mm | 重量 | 0.026 |
| 直径 | :22mm | 包装方式 | Bulk |
| 壳体颜色 | silver | 引脚样式 | screw terminals |
| 本体尺寸 | Ø25.7 x 31.5mm | 端接方式 | Screws |
| 触点形式 | SPST | 致动器类型 | Round, Button, Flush |
| 基体材料 | stainless steel | 安装类型 | Panel Mount, Front |
| 端子类型 | :Screw | 接触镀层 | Gold |
| 安装样式 | Panel | 操作力 | :12N |
| 触头材料 | GoldPlated | 壳体材料 | Stainless Steel |
| 刀片材料 | CopperAlloy | 包装数量 | 50 |
| 端接样式 | Screw Terminal | 连接器颜色 | :Blue |
| 照明颜色 | :Blue | 面板开孔形状 | :19.2mm |
| 位数 | 1-position | 按钮/帽颜色 | Silver |
| 安装孔直径 | 19.2mm | 典型触点布局 | SP |
| 面板开孔尺寸（外形） | Circular - 19.20mm Dia | 照明类型及颜色 | LED, Blue |
| 触点材料 - 镀层 | gold plated | ||
产品信息
| SPG | 50 | 类型 | Vandal Resistant, Illuminated |
| 系列 | MPI | 产品特性 | Stainless Steel |
| 开关类型 | vandal resistant | 照明类型 | LED |
| 电气寿命 | 35,000 Cycles | 单元数量 | 1 |
| 触点配置 | SPST-NO | ||
环境参数
| 额定寿命 | 750000(Min.) | 机械寿命 | 750,000 Cycles |
| NEMA 机架尺寸 | :IP66 | 工作寿命 | 35000(Min.) |
| 防护等级 | IP66 - Dust Tight, Water Resistant | 工作温度 | -30°C ~ 70°C |
| 光通量 @ 电流/温度 | :1500mcd | ||
文档与媒体
相关型号

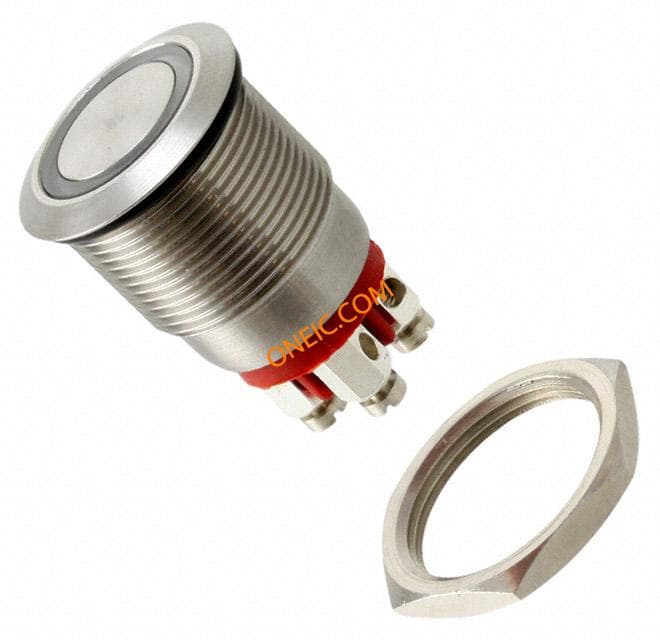

MPI002/TERM/RD
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring red,IP66 Pushbutton Switches RED RING SCREW TERM SWITCH, ILLUM RED Switch,RingIlluminated;Red;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Push-button Switch, vandal proof 19.2 mm 24 VDC 50 mA 1 make contact (NO), MPI002/TERM/RD, Bulgin Bulgin SP 按钮开关, 0.05 A@ 24 V 直流

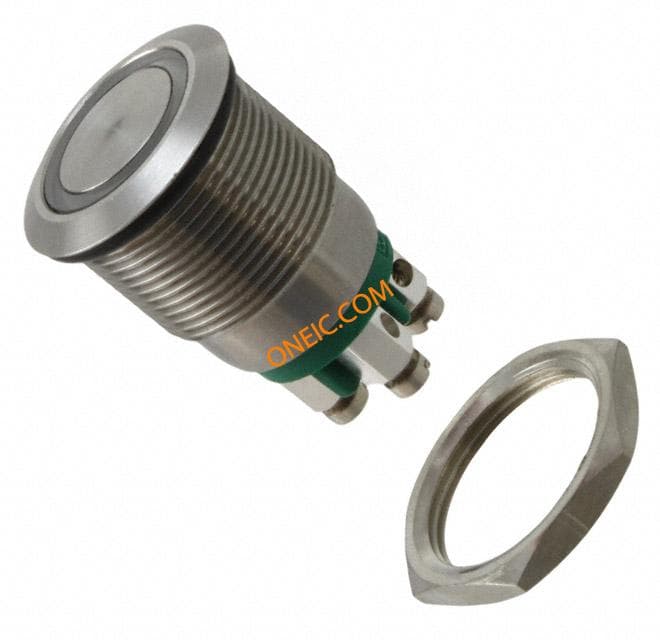

MPI002/TERM/GN
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring green,IP66 Pushbutton Switches GRN RING SCREW TERM Switch Push Button SPST Flush Round Button 0.05A 24VDC Screw Panel Mount SWITCH, SPST, 0.05A, 24VDC, ILL GREEN Switch,RingIlluminated;Green;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Switch: vandal resistant; 1-position; SPST-NO; 0.5A/24VDC; IP66 Push-button Switch, vandal proof 19.2 mm 24 VDC 50 mA 1 make contact (NO), MPI002/TERM/GN, Bulgin Bulgin IP40 银色 SP 瞬间 照明 按钮开关, 50 mA@ 24 V 直流

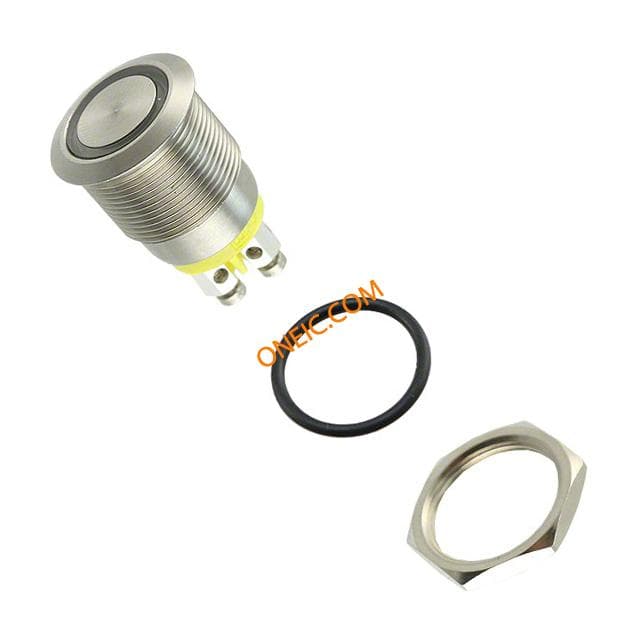

MPI002/TERM/AM
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring amber,IP66 Pushbutton Switches AMBER DOT SCREW TERM SWITCH, ILLUM AMBER Switch,RingIlluminated;Amber;S.P.PushtoMake;50mA;24Vd.c.Max;ScrewTerm. Bulgin SP 按钮开关, 0.05 A@ 24 V 直流

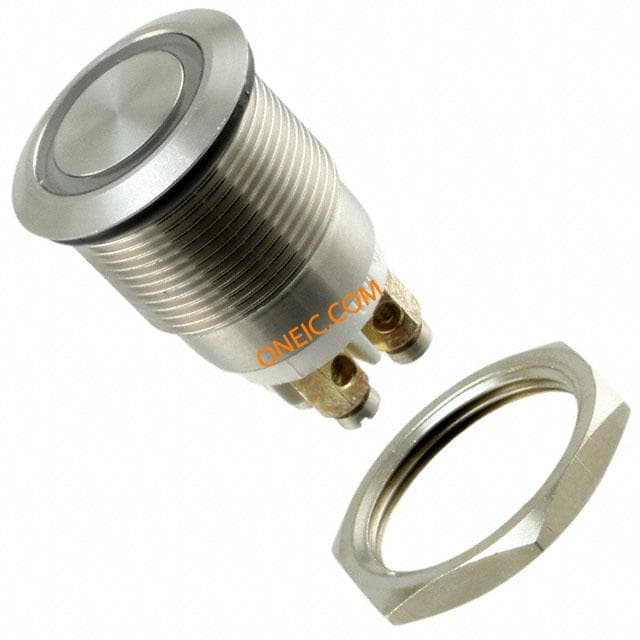

MPI002/TERM/WH
