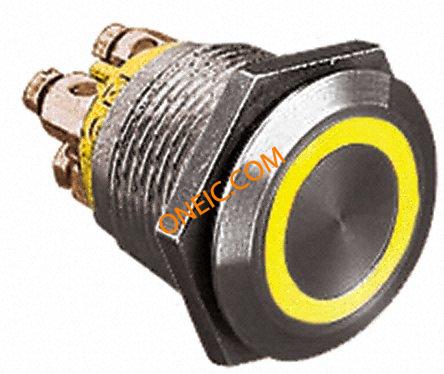

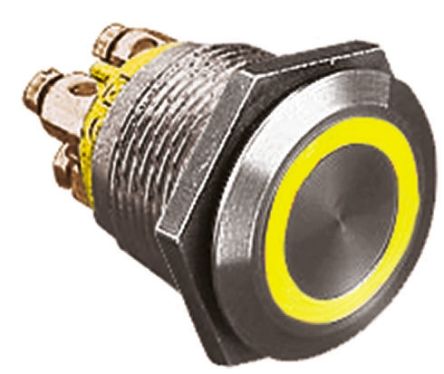

点击放大查看
商业参数
| 产品类别 | Pushbutton Switches | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85365005 | ||
电气参数
| 电路 | SPST-NO | 操作方式 | PushtoMake |
| 所用LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. | 额定电压 | 24V |
| 极数 | 1 | 开关功能 | Off-Mom |
| 接触电阻 | :100mohm | 介电强度 | >2kV(ContacttoPanel),1500V(ContacttoContact) |
| LED正向电压 | :2V | 最大额定电流 | 50mA (DC) |
| 最大触点电流 | :50mA | 绝缘电阻 | :1000Mohm |
| 开关功能/额定值 | :Off-On | 触点额定电流 | 0.05 A @ 24 V dc |
| 连接器类型 - 电压输入 | :Screw | 供电电压 (Vcc/Vdd) | :24V |
| 标称照明电压 | 2.3 VDC | ||
机械参数
| 深度 | :28.2mm | 长度 | :31mm |
| 重量 | 0.02594 | 直径 | :22mm |
| 包装方式 | Bulk | 端接方式 | Screws |
| 触点形式 | SPST | 致动器类型 | Round, Button, Flush |
| 安装类型 | Panel Mount, Front | 端子类型 | :Screw |
| 接触镀层 | Gold | 安装样式 | Panel |
| 操作力 | :12N | 壳体材料 | Stainless Steel |
| 端接样式 | Screw Terminal | 连接器颜色 | :Amber |
| 照明颜色 | Amber | 面板开孔形状 | :19.2mm |
| 按钮/帽颜色 | Silver | 安装孔直径 | 19.2mm |
| 典型触点布局 | SP | 面板开孔尺寸（外形） | Circular - 19.20mm Dia |
| 照明类型及颜色 | LED, Amber | ||
产品信息
| 类型 | Vandal Resistant, Illuminated | 系列 | :MPI002 |
| 产品特性 | Stainless Steel | 照明类型 | LED |
| 电气寿命 | 35,000 Cycles | ||
环境参数
| 机械寿命 | 750,000 Cycles | NEMA 机架尺寸 | :IP66 |
| 防护等级 | IP66 - Dust Tight, Water Resistant | 工作温度 | -30°C ~ 70°C |
| 光通量 @ 电流/温度 | :220mcd | ||
