9913 010500
| 制造商 | Belden Inc. |
| 描述 | Coaxial Cables 10AWG 1C SHIELD 500ft SPOOL BLACK RF transmission coaxial cable,50ohm 152m COAXIAL CABLE, LOW LOSS RG-8/U, 50 OHM IMP, 10AWG SOLID, TRANSMISSION/COMPUTER B Coax - RG-8/U Type RG-8/U Type Coax Black Belden 152m长 黑色 聚氯乙烯 PVC护套 RG8/U 同轴电缆, 10.287mm外径 |
| 分类 |
商业参数
| 产品类别 | Coaxial Cables | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准 | EU CE |
电气参数
| 核心类型 | 1/10 | 阻抗 | 50 Ohms |
| 电容 | 80.688 pF/m | 导体绞线 | Solid |
| 典型衰减 | 2.6dB/100ft@400MHz, 3.6dB/100ft@700MHz, 4.1dB/100ft@900MHz, 4.4dB/100ft@1GHz | 连接器阻抗 | RG8 / U |
| 插入损耗（最大） | 2.6 dB/100ft @ 400MHz、3.6 dB/100ft @ 700MHz、4.1 dB/100ft @ 900MHz、4.4 dB/100ft @ 1GHz | 阻抗（最大）（Zzt） | 50 Ω |
| 阻抗 - 不平衡/平衡 | RG8/U | ||
机械参数
| 形状 | 同轴 | 长度 | 500 ft |
| 重量 | 57 lbs | 屏蔽 | Shielded |
| 电缆类型 | Coaxial | 导线线规 | 10 |
| 屏蔽类型 | BOTH, BRAID OVER FOIL | 电缆长度 | 152m |
| 线缆护套颜色 | Black | 导体类型 | SOLID CONDUCTOR |
| 外径（标称值） | 10.287mm | 屏蔽材料 | Tinned Copper |
| 绝缘颜色 | 黑色 | 连接器间距 | 1/10 |
| 连接器颜色 | Black | 导体材料 | Copper |
| 外径 | 0.405 in | 介电材料 | SSPE-SEMI SOLID POLYETHYLENE |
| 绝缘材料 - 类型 | PE | 减速比 | 84% |
| 绝缘材料 - 材质 | Polyethylene | 电缆对数 | Solid |
| 核心数/总线宽度 | 1 | 线规或范围 - AWG | 10 AWG |
| 护套（绝缘）材料 | Polyvinyl Chloride - PVC | 非扩张内径 | 10 AWG |
| 外径-未扩张 | 0.405 " | ||
产品信息
| UNSPSC代码 | 26121606 | 应用细节 | Indoor, Outdoor, Aerial, Computer, Transmission |
| 位置/触点数量 | 1 | ||
环境参数
| 浸没 | NO NOT FLOODED OVER BRAID | 防火等级 | GENERAL PURPOSE (CM, CMG, CMX) |
| 防护等级 | YES IS OUTDOOR GRADE MATERIAL | 工作温度 | +80°C |
| 最高温度限值 | + 80 C | ||
文档与媒体
相关型号

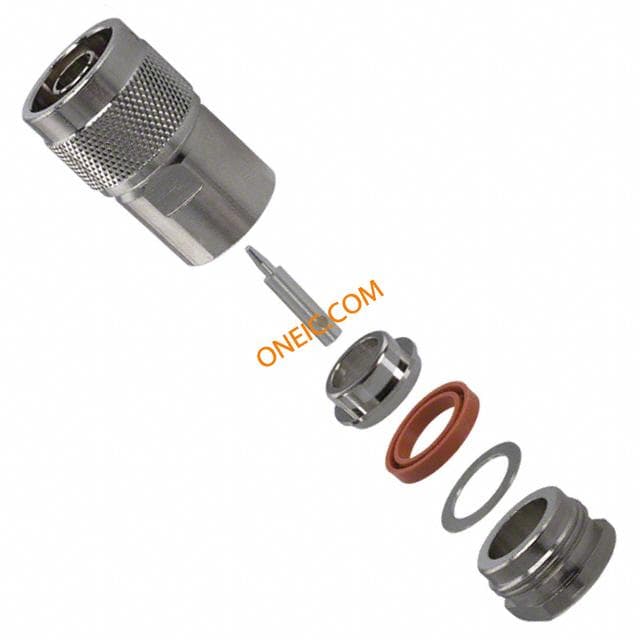

82-202-1006
