点击放大查看

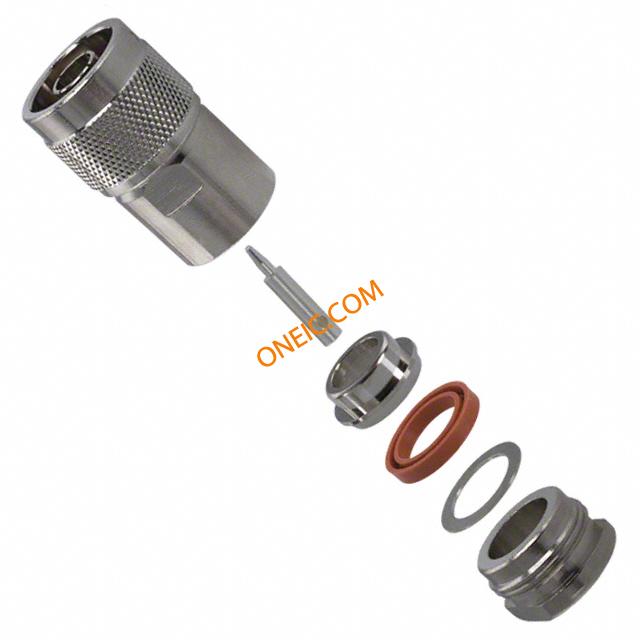

82-202-1006
| 制造商 | Amphenol Corporation |
| 描述 | RF Connectors STRT PLG LMR400/7810 9913 8214 CLAMP CONN N PLUG STR 50 OHM SOLDER connector;rf coaxial;n straight plug;clamp/solder;for belden 9913;lmr400 cable Conn Type N PL 0Hz to 11GHz 50Ohm Screw Clamp ST Cable Mount Gold PLUG, N, STRAIGHT For 9913, 9914 and LMR400 82-202-1006 Type-N Male Clamp Connector, Straight, (Industrial Version) APL/RF |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Not Applicable | 海关税号 | 85369010 |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 1500V |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 0.001 | 包装方式 | Bulk |
| 电缆类型 | :Belden 9913, LMR-400 | 本体表面处理 | Nickel |
| 电缆组 | Belden 9913, LMR-400 | 端接方式 | :Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug, Male Pin |
| 接触镀层 | :Gold | 紧固类型 | Threaded |
| 连接器样式 | N Type | 触头材料 | :Nickel |
| 屏蔽层端接方式 | Clamp | 接触件端接 | Solder |
| 中心触点镀层工艺 | Silver | 中心触点材料 | Brass |
| 供应商器件封装 | :Straight Plug | 第一连接器安装类型 | :Cable |
产品信息
| 系列 | :N | ||
