点击放大查看

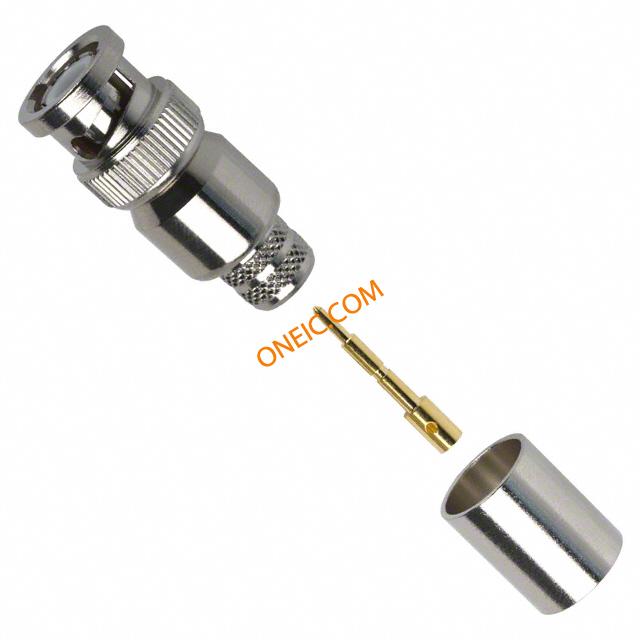

112563
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for b9913;LMR400cable;50ohm RF Connectors / Coaxial Connectors BNC ST CRIMP PLUG LMR400 B7810A RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for b9913, LMR400cable, 50ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1016 |
| 零件号别名 | 319-0014 99H4465 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 深度 | Not Required mm | 高度 | Not Required mm |
| 重量 | 0.751335 oz | 直径 | 14.5 mm |
| 包装方式 | Bulk | 电缆类型 | Belden 7810A, 8214, 9913; LMR400 |
| 本体表面处理 | Nickel | 电缆组 | LMR-400 |
| 方向 | Straight | 端接方式 | Crimp |
| 重量（g） | 24.00000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Cable |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 24.5 mm |
| 主要材料 | BNC | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | 112563 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
