1694A 0101000
| 制造商 | Belden Inc. |
| 描述 | Coaxial Cables 18AWG 1C SHIELD 1000ft SPOOL BLACK CABLE, COAXIAL, RG6/U, 18AWG, 75 OHM, BLK, 1000FT COAXIAL CABLE, RG-6/U, 18AWG SOLID, 75 OHM IMP., DIGITAL VIDEO CABLE BLACK Coax - Low Loss Serial Digital Coax 18 AWG PE/GIFHDPE SH FR PVC Black |
| 分类 |
商业参数
| 产品类别 | Coaxial Cables | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL NEC/cUL CEC, EU CE |
| 海关税号 | 85444920 | ||
电气参数
| 阻抗 | 75 Ohms | 额定电压 | 300 V (RMS) |
机械参数
| 长度 | 1000 ft | 重量 | 45 lbs |
| 屏蔽 | Shielded | 电缆类型 | :RG6 |
| 导线线规 | 18 | 线缆护套颜色 | :Black |
| 屏蔽材料 | Tinned copper braid and Aluminum foil—Polyester tape—Aluminum foil | 总长度 | :1000ft |
| 导体材料 | Copper | 外径 | 0.274 in |
| 介电材料 | Gas Injected Foam High Density Polyethylene | 绝缘材料 - 材质 | Foam High Density Polyethylene |
| 电缆对数 | Solid | 线规或范围 - AWG | :18AWG |
| 护套（绝缘）材料 | Polyvinyl Chloride - PVC | 外径-未扩张 | 0.275 " |
产品信息
| 应用细节 | Indoor, Outdoor, Aerial, Analog, Digital, Video | ||
文档与媒体
相关型号

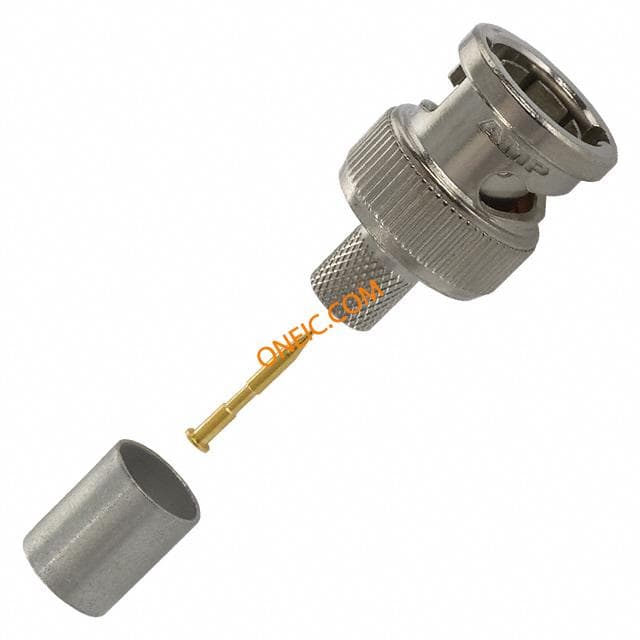

5221185-1
