31-70000
| 制造商 | Amphenol Corporation |
| 描述 | RF Connectors BNC PLUG 75OHM RG-6 connector;rf coaxial;bnc straight plug;crimp-crimp;for rg6;b9248;1694a;75 ohm RF Connectors / Coaxial Connectors BNC PLUG 75OHM RG-6 Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP For RG-6 - Belden 533945, 5339B5, 5399B5, 633948, 633938; Coleman 92045, 92061, 921003 |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-70000 16R0622 713-8600 89F2857 |
| 产品类别 | RF Connectors / Coaxial Connectors | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85366910 |
电气参数
| 阻抗 | 75 Ohms | 耦合系数 | Bayonet |
| 最大频率 | 4 GHz | ||
机械参数
| 重量 | 0.014 | 包装方式 | Bulk |
| 电缆类型 | RG-6, Belden 1694A, Belden 9248 | 本体表面处理 | Nickel |
| 方向 | Straight | 基体材料 | Brass |
| 连接器类型 | :BNC Coaxial | 接触镀层 | Gold |
| 触头材料 | Brass | 端接样式 | Cable - Crimp |
| 接触件端接 | Crimp | 供应商器件封装 | Straight |
产品信息
| 连接器性别 | Plug | 极性 | Standard |
| 射频系列/标准 | BNC | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
相关型号
1694A 0101000
Belden Wire & Cable
Coaxial Cables 18AWG 1C SHIELD 1000ft SPOOL BLACK CABLE, COAXIAL, RG6/U, 18AWG, 75 OHM, BLK, 1000FT COAXIAL CABLE, RG-6/U, 18AWG SOLID, 75 OHM IMP., DIGITAL VIDEO CABLE BLACK Coax - Low Loss Serial Digital Coax 18 AWG PE/GIFHDPE SH FR PVC Black
1694A 010500
Belden Wire & Cable
Coaxial Cables 18AWG 1C SHIELD 500ft SPOOL BLACK COAXIAL CABLE; RG-6/U; 18AWG SOLID; 75 OHM IMP.; DIGITAL VIDEO CABLE BLACK; 152m CABLE, COAXIAL, RG-6/U, 500FT, 18AWG, BLK COAXIAL CABLE, RG-6/U, 18AWG SOLID, 75 OHM IMP., DIGITAL VIDEO CABLE BLACK Low loss serial digital coax cable, RG-6/U Type, 500’ reels, 18 AWG solid .040" bare copper conductor, gas-injected foam HDPE insulation, Duofoil + TC braid shield (95% coverage), PVC jacket
9118 0101000
Belden Wire & Cable
Coaxial Cables 18AWG 1C SHIELD 1000ft SPOOL BLACK Coax - CATV Cable 18 AWGGIFHDLDPE SH FS FRPVC Black
1530A 0101000
Belden Wire & Cable
Coaxial Cables 18AWG COAX S6 SOLID 1000ft SPOOL BLACK Coax - CATV Cable 18 AWG GIFHDLDPE SH FR PVC Black
1530A 010U1000
Belden Wire & Cable
Coaxial Cables 18AWG COAX S6 SOLID 1000ft BOX BLACK
7915A 010U500
Belden Wire & Cable
Coaxial Cables 18AWG 1C SHIELD 500ft BOX BLACK CABLE, COAXIAL, RG-6/U, 18AWG, 500FT, BLACK Coax - Series 6 18 AWG GIFHDLDPE SH FS FRPVC Black
112508
amphenol connex
Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold RF Connectors BNC CRIMP PLUG RG 6/U-75 OHM CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg6 cable;75 ohm RF Connectors / Coaxial Connectors BNC CRIMP PLUG RG 6/U-75 OHM RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg6 cable, 75 ohm

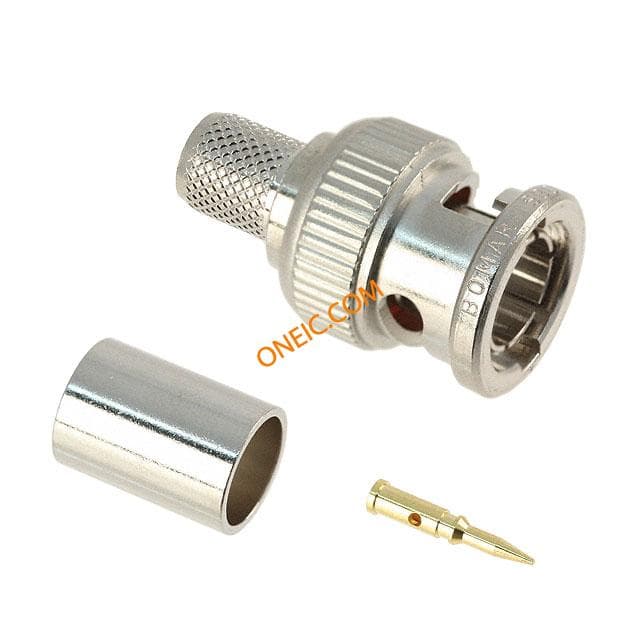

SBC1694A
