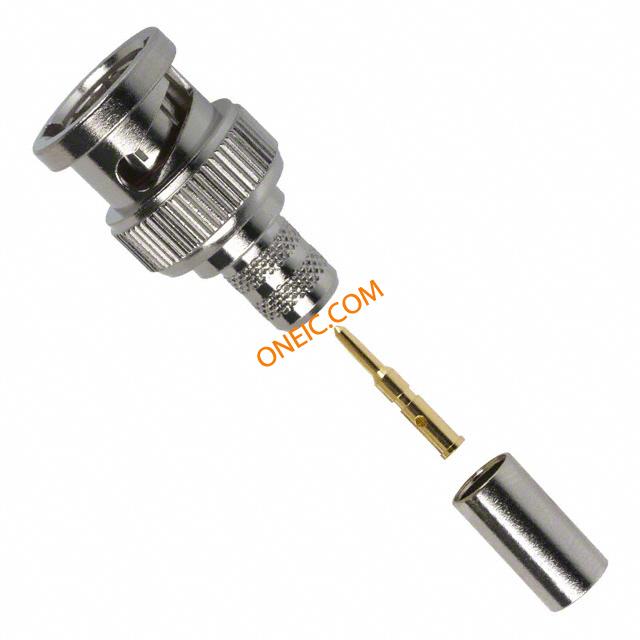

112508
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold RF Connectors BNC CRIMP PLUG RG 6/U-75 OHM CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg6 cable;75 ohm RF Connectors / Coaxial Connectors BNC CRIMP PLUG RG 6/U-75 OHM RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg6 cable, 75 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1018 |
| 零件号别名 | 319-0015 99H4426 | 产品类别 | RF Connectors |
| 标准包装数量 | Bag | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 1 GHz | 阻抗 | 75 Ohm |
| 额定电压 | 500 V | 耦合系数 | Bayonet |
| 最大频率 | 4 GHz | ||
机械参数
| 重量 | 0.369671 oz | 直径 | 14.5 |
| 包装方式 | Bulk | 电缆类型 | RG-6, RG-143, RG-212, Belden 3092, Belden 3903 |
| 本体表面处理 | Nickel | 电缆组 | RG-6 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug Crimp Attachments for Flexible Cable | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 25 |
| 主要材料 | BNC | 端接样式 | Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polyoxymethylene (POM) Acetal | 绝缘材料 - 类型 | Delrin |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | :Straight Plug | ||
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Normal |
| 连接类型 | Coaxial Cable | 射频系列/标准 | 112508 |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 40 C to + 155 C |
文档与媒体
相关型号

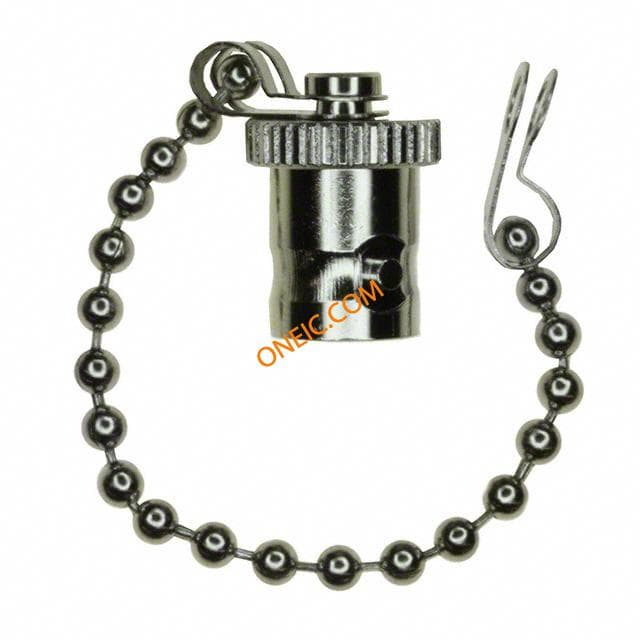

112713
