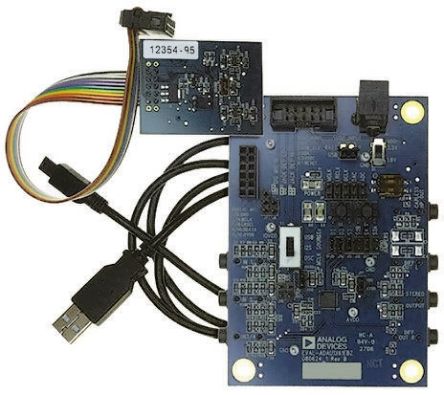

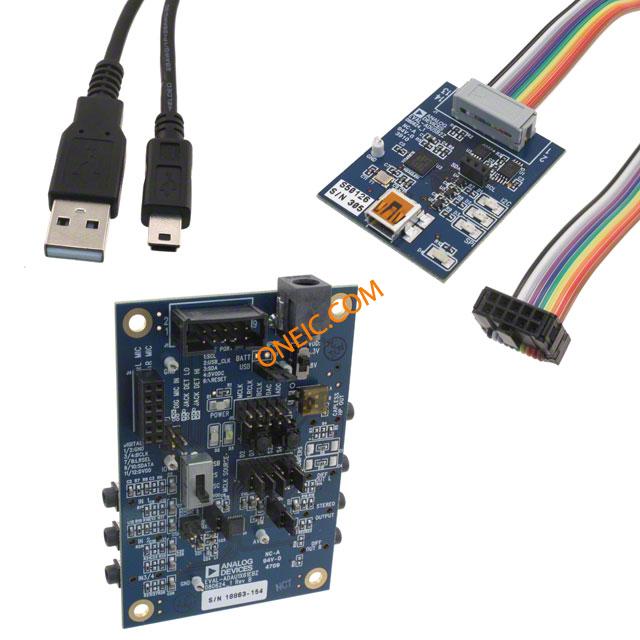

EVAL-ADAU1761Z
| 制造商 | |
| 描述 | ADAU1761 Evaluation Board BOARD EVAL FOR ADAU1761 EVAL-ADAU1761Z, Development Kit Audio IC Development Tools Eval BRD ADAU1761 ADAU1761, AUDIO CODEC, EVAL BOARD Analog Devices 模拟开发套件 |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | EVALADAU1761Z |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84718000 |
电气参数
| 供电电压 | 1.8 V to 3.3 V | 元件数量 | :- |
机械参数
| 重量 | 0.2 | 包装方式 | Bulk |
产品信息
| 类型 | Development Kit | 系列 | ADAU1761 |
| 内容 | 2 Boards, Cables, Software | 嵌入式 | Yes, DSP |
| 产品特性 | :24bit Low Power, Stereo Audio Codec with Integrated Digital Audio Processing | 功能 | Stereo, low power, 96 kHz, 24-bit SigmaDSP audio codec with integrated PLL |
| 套件类型 | :Audio, Video | 技术 | Data Acquisition |
| 套件内容 | CD with Documentation & Software, Evaluation Board for ADAU1761 Sigma DSP, USB Cable, USBi Control Interface Board | 主要用途 | Audio, CODEC |
| 卡标准 | Development Kit | 工具类型/特性 | ADAU1761 |
| 主要特性 | Stereo, 24-Bit, 8 ~ 96 kHz Sampling Rate, GUI Tool | 射频系列/标准 | ADAU1761 |
| 使用的IC/零件 | ADAU1761 | 芯片组制造商 | :Analog Devices |
| 次要特性 | I²C and GPIO Interfaces, 2 Differential and 1 Stereo Single-Ended Analog Inputs and Outputs | 应用细节 | :Audio Processor |
