ADXL203CE
| 制造商 | Analog Devices, Inc. |
| 描述 | Accelerometer Dual ±1.7g 3.3V 960mV/g to 1040mV/g 8-Pin CLCC Tube IC ACCELEROMETER DUAL-AXIS 8CLCC ADXL203CE, Accelerometer 2-Axis, 0.5 to 2.5kHz 3 to 6V, 8-Pin CLCC, CLLCC Accelerometers Precision Dual-Axis Accelerometer Dual �1.7g 3.3V 960mV/g to 1040mV/g 8-Pin CLCC Tube IC, MEMS ACCELEROMETER, +/-18G, CLCC-8 Sensor: acceleration; Range:1,7g; -40÷125°C; 3÷6V Acceleration sensor LCC-8, ADXL203CE, Analog Devices , 2轴 加速表, 0.5 → 2.5 kHz, 3 → 6 V, 8针 CLCC封装 |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 95 |
| 标准封装名称 | LCC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 抗辐射加固 | No | ||
电气参数
| 输出端 | :Analogue | 输出类型 | Analog |
| 灵敏度 | 960 to 1040 mV/g | 传感器类型 | :LCC |
| 感应角度 | Dual | 额定电压 | 3...6V |
| 输出电流 | 0.7 mA | 供电电压 | 3 to 6 V |
| 最小供电电压 | 3 V | 共模瞬态抗扰度（最小） | Industrial |
机械参数
| 轴 | Dual | 深度 | 5 mm |
| 宽度 | 5 | 高度 | 1.98 mm |
| 重量 | 0.000074 | 带宽 | 0.5Hz ~ 2.5kHz Selectable |
| 包装方式 | Tube | 引脚样式 | No Lead |
| 加速度 | ±1.7 g | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8CLCC | 冷却的封装 | CLLCC |
| 材料表面处理 | :- | 总长度 | 5 mm |
| 包装数量 | CLCC | 尺寸/外形 | see |
| 位数 | 8 | 外壳尺寸-插件 | 1.98 |
| 供应商器件封装 | 8-CLCC (5x5) | ||
产品信息
| SPG | 30 | 系列 | ADXL203 |
| 原理图 | see | 测量范围 | 1,7g |
| 单元数量 | 1 | 测量制式 | :X, Y |
| 射频系列/标准 | ADXL203 | 印刷电路板数量 | 8 |
环境参数
| 加速度范围 | ±1.7g | 工作温度 | -40 to 125 °C |
| 结工作温度 | 125C | ||
文档与媒体
相关型号
ADXL203CE
analog devices
Accelerometer Dual ±1.7g 3.3V 960mV/g to 1040mV/g 8-Pin CLCC Tube IC ACCELEROMETER DUAL-AXIS 8CLCC ADXL203CE, Accelerometer 2-Axis, 0.5 to 2.5kHz 3 to 6V, 8-Pin CLCC, CLLCC Accelerometers Precision Dual-Axis Accelerometer Dual �1.7g 3.3V 960mV/g to 1040mV/g 8-Pin CLCC Tube IC, MEMS ACCELEROMETER, +/-18G, CLCC-8 Sensor: acceleration; Range:1,7g; -40÷125°C; 3÷6V Acceleration sensor LCC-8, ADXL203CE, Analog Devices , 2轴 加速表, 0.5 → 2.5 kHz, 3 → 6 V, 8针 CLCC封装

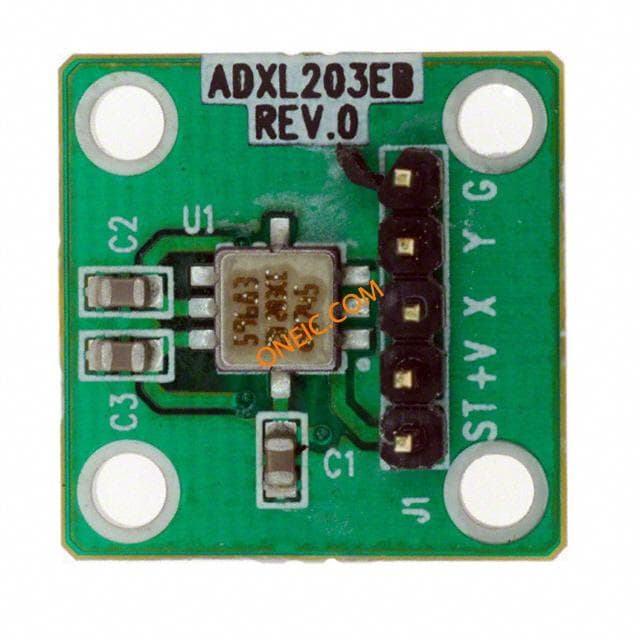

ADXL203EB
analog devices
Evaluation Board For Ic Accelerometer Dual 1.7G 3 To 6V 8Lcc T/R BOARD EVAL FOR ADXL203 Daughter Cards & OEM Boards EVAL BRD ADXL203 IC ACCELEROMETER DUAL ¦1.7G 3 TO 6V 8LCC T/R ADXL203, ACCELEROMETER, 2 AXIS, EVALUATION BOARD Development kit, ADXL203EB, Analog Devices Analog Devices 评估测试板
C0402C104K8PACTU
Yageo Corporation
Multilayer Ceramic Capacitors MLCC - SMD/SMT 10volts 0.1uF X5R 10% CAP CER 0.1UF 10V 10% X5R 0402 Kemet 0.1μF ±10% 10V dc X5R Dielectric SMD Ceramic Multilayer Capacitor, 0402 Package Cap Ceramic 0.1uF 10V X5R 10% SMD 0402 85C Paper T/R CAP, MLCC, X5R, 100NF, 10V, SMD Capacitor;Ceramic;Cap;.100uF;Tol10%;SMT;Vol-Rtg10V;X5R;CutTape Capacitor;Ceramic;Cap;.100uF;Tol10%;SMT;Vol-Rtg10V;X5R;TapeandReel Capacitor 0.1 uF 10 VDC 0402, C0402C104K8PACTU, KEMET KEMET C 系列 100nF ±10% X5R电介质 10 V 直流 SMD 多层陶瓷电容器 (MLCC) , 0402封装
CC0402KRX7R6BB104
Yageo
Multilayer Ceramic Capacitors MLCC - SMD/SMT 100nF 10V X7R 10% CAP CER 0.1UF 10V 10% X7R 0402 Yageo 100nF ±10% 10V X7R Dielectric SMD Ceramic Multilayer Capacitor, 0402 Package Cap Ceramic 0.1uF 10V X7R 10% SMD 0402 125C Paper T/R CAPACITOR CERAMIC, 0.1UF, 10V, X7R, 10%, 0402, FULL REEL CAPACITOR CERAMIC, 0.1UF, 10V, X7R, 10%, 0402 CAP-MLCC/X7R/0402/10V/0.1uF±10% Yageo Standard 系列 100nF ±10% X7R电介质 10 V SMD 多层陶瓷电容器 (MLCC) , 0402封装

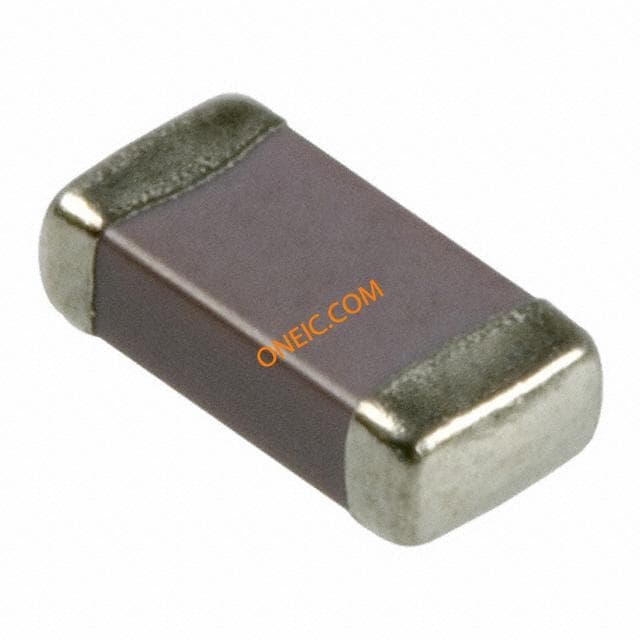

1206ZC104KAT2A
avx
Cap Ceramic 0.1uF 10V X7R 10% SMD 1206 125°C Paper T/R CAP CER 0.1UF 10V 10% X7R 1206 Multilayer Ceramic Capacitors MLCC - SMD/SMT 10volts 0.1uF 10% X7R CAPACITOR CERAMIC, 0.1UF, 10V, X7R, 10%, 1206

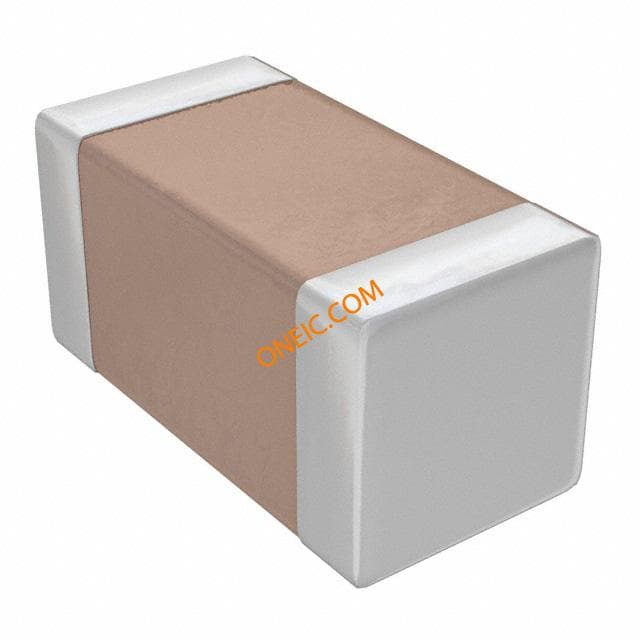

C1005X5R1A104M050BA
