C0402C104K8PACTU
| 制造商 | Yageo Corporation |
| 描述 | Multilayer Ceramic Capacitors MLCC - SMD/SMT 10volts 0.1uF X5R 10% CAP CER 0.1UF 10V 10% X5R 0402 Kemet 0.1μF ±10% 10V dc X5R Dielectric SMD Ceramic Multilayer Capacitor, 0402 Package Cap Ceramic 0.1uF 10V X5R 10% SMD 0402 85C Paper T/R CAP, MLCC, X5R, 100NF, 10V, SMD Capacitor;Ceramic;Cap;.100uF;Tol10%;SMT;Vol-Rtg10V;X5R;CutTape Capacitor;Ceramic;Cap;.100uF;Tol10%;SMT;Vol-Rtg10V;X5R;TapeandReel Capacitor 0.1 uF 10 VDC 0402, C0402C104K8PACTU, KEMET KEMET C 系列 100nF ±10% X5R电介质 10 V 直流 SMD 多层陶瓷电容器 (MLCC) , 0402封装 |
| 分类 |
商业参数
| 产品 | General Type MLCCs | 其他名称 | 399-3027-1 |
| 零件号别名 | C0402C104K8PAC7867 | 产品类别 | Multilayer Ceramic Capacitors MLCC - SMD/SMT |
| 标准包装数量 | 10,000 | 工厂包装数量 | 10000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85322100 | 抗辐射加固 | No |
电气参数
| 电压 | 10 V dc | 容差 | 10 % |
| 电容 | 0.1 uF | 量程（°/s） | :KEMET - C Series |
| 额定电压 | 10 V | 输入电容值 | :0402 [1005 Metric] |
| 电容 @ Vr, F | :X5R | 电阻公差 | -10% |
| 损耗角正切（DF） | 5 | ||
机械参数
| 深度 | 0.5mm | 宽度 | 0.5 mm |
| 高度 | 0.5mm | 长度 | 1mm |
| 重量 | 0.00035 | 直径 | Not Required mm |
| 包装方式 | Reel | 端接方式 | SMT |
| 结构 | SMT Chip | 引脚间距 | 0.3 mm |
| 安装类型 | Surface Mount, MLCC | 安装样式 | Surface Mount |
| 封装形式 | 0402 (1005 metric) | 材料表面处理 | :MSL 1 - Unlimited |
| 厚度（最大） | 0.022" (0.55mm) | 总长度 | 1 mm |
| 刀片材料 | Ceramic | 尺寸/外形 | 0.5 mm W x 1 mm L x 0.5 mm H |
| 端接样式 | SMD/SMT | 介电材料 | X5R |
| 外壳尺寸-插件 | 0402(1005mm) | 安装孔直径 | 0402 |
| 线规或范围 - AWG | Not Required | ||
产品信息
| 类型 | X5R Dielectric, Commercial | 类别 | 2 |
| 系列 | C0402C | 应用 | General Purpose |
| 失效率 | Not Required | ||
环境参数
| 工作温度 | - 55 C to + 85 C | 温度系数 | X5R |
文档与媒体
相关型号
.jpg&w=3840&q=75)

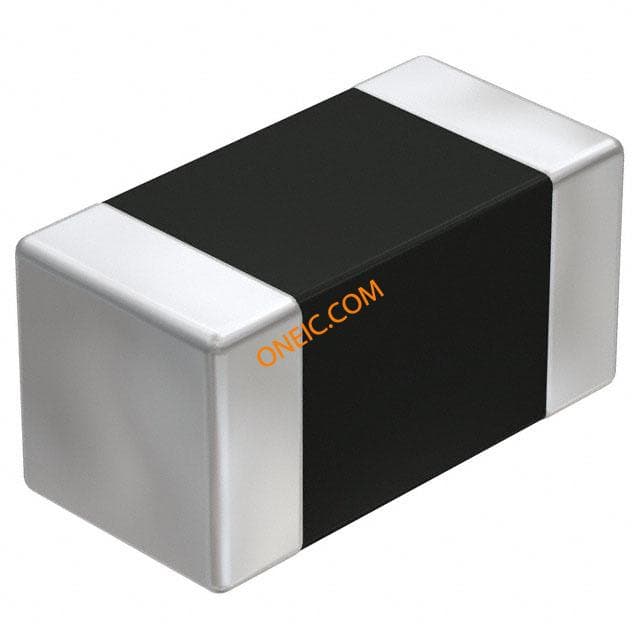

EMK105B7104KV-F
