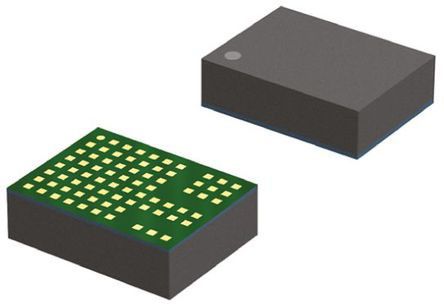

LTM8042EV#PBF
| 制造商 | Analog Devices, Inc. |
| 描述 | LED DRVR 3.3V/5V/9V/12V/15V/18V/24V 77-Pin LGA Tray LED SUPP CC BOOST BUCK 2-32V 1A IC, LED DRIVER, BOOST, 1A, 56LGA LED 驱动器, 3 → 30 V, 77引脚 LGA封装 |
| 分类 |
商业参数
| 其他名称 | LTM8042EVPBF | 标准包装数量 | 170 |
| 标准封装名称 | LGA | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
电气参数
| 调光方式 | Analog, PWM | 功率（瓦） | 32W |
| 额定电压 | :3V to 30V | 输出电流 | 1A |
| 输出数量 | 1 | 开关频率 | :2MHz |
| 最小输入电压 | 2 ~ 32 V | 最小供电电压 | 30 |
| 最大持续工作电压（MCOV） | :30V | ||
机械参数
| 宽度 | 9 | 重量 | 0.002 lb (0.91g) |
| 包装方式 | Tray | 封装体颜色 | :LGA |
| 安装类型 | Surface Mount | 引脚数 | :56 |
| 封装形式 | 77-BLGA | 材料表面处理 | :MSL 3 - 168 hours |
| 总长度 | 15 | 包装数量 | LGA |
| 尺寸/外形 | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | 位数 | 77 |
| 外壳尺寸-插件 | 2.92(Max) | ||
产品信息
| 类型 | Constant Current | 产品特性 | Remote On/Off, OTP, SCP |
| 拓扑 | Boost, Buck, Buck-Boost | 基本单元 | :8042 |
| 应用细节 | :Automotive and Avionic Lighting, Display Backlighting, Illumination, Scanners | 印刷电路板数量 | 77 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
