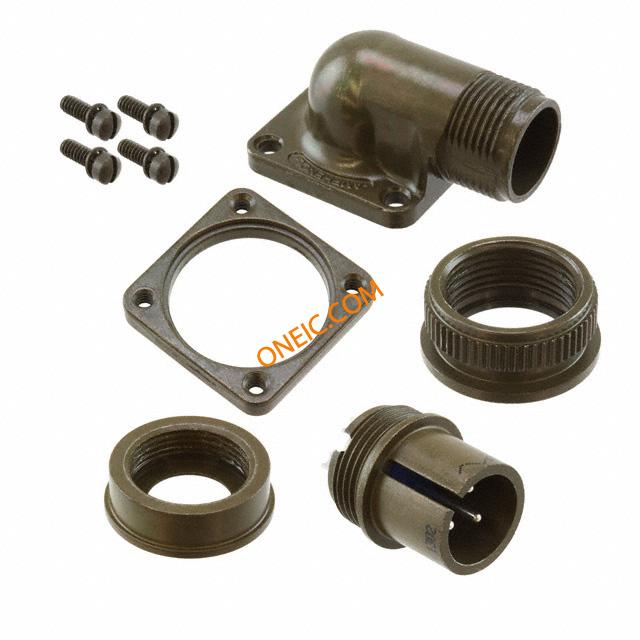

97-3108A-14S-1P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 3 POS Solder RA Cable Mount 3 Terminal 1 Port CONN PLUG 3POS R/A PIN SLD connector;metal circ;rt angle plug;size 14s;3#16 solder pin contact;olive drab Circular MIL Spec Connector 3P Size 14S Solder R/A Pin Plug connector, metal circ, rt angle plug, size14s, 3#16 solder pin contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 973108A14S1P | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 14 | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Right Angle |
| 端接方式 | Solder | 触头类型 | Pin |
| 安装类型 | Cable Mount | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Right | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Wire |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Threaded | 插入角度 | 14S-1 |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 3 | 介电材料 | Diallyl-Phthalate |
| 位数 | 3 | 外壳尺寸-插件 | 14S-1 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 3#16 |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | 97 |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
