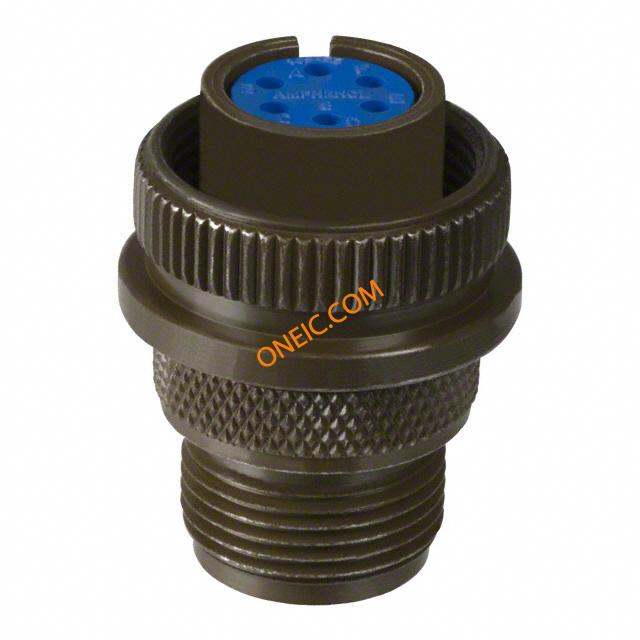

97-3106A-14S-6S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 6 POS Solder ST Cable Mount 6 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 6POS W/SOCKETS connector;metal circ;stright plug;size 14s;6 #16 solder socket cont;olive drab SOCKET, FREE, 6WAY connector, metal circ, stright plug, size 14s, 6 #16 solder socket cont, olive drab |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (19-Dec-2012) |
| 海关税号 | 85369010 | 认证机构 | :MIL Spec |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 200VAC, 250VDC | 工作电压 | :250V |
| 击穿电压 | :1000V | 最大额定电流 | 13A |
机械参数
| 长度 | :36.5mm | 重量 | 0.028 |
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 14S | 导线线规 | :22AWG |
| 方向 | N (Normal) | 外壳样式 | straight plug |
| 端接方式 | Solder | 触头类型 | socket contacts |
| 芯径 | :28.58mm | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 14S-6 | 本体材料 | :Aluminium |
| 触头材料 | :Copper | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 第一触头极性 | :Socket |
| 连接器颜色 | :Olive | 触点数 | :6 |
| 接触件端接 | :Solder | 介电材料 | Diallyl-Phthalate |
| 位数 | 6 | 外壳尺寸-插件 | 14S-6 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 6#16 |
| 线规或范围 - AWG | :16AWG | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :1.4mm | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | :97 |
| 制造商全称 | 97 Series | 应用细节 | Commercial |
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP66 |
| 工作温度 | -55°C ~ 125°C | ||
